Using the set-up tool
The set-up tool numerical display provides a
correct reading only when the NCi-4 interface
unit is in the Set-up mode, i.e. when the NC set-
up switch (SW1-2) is set to ‘On’.
1. Check that the NC4 receiver unit is clean
and free of swarf. Push the set-up tool onto
the top of the receiver unit and rotate it so
that the display is facing you.
2. On the NCi-4, set switch SW1-2 (NC set-up)
to ‘On’.

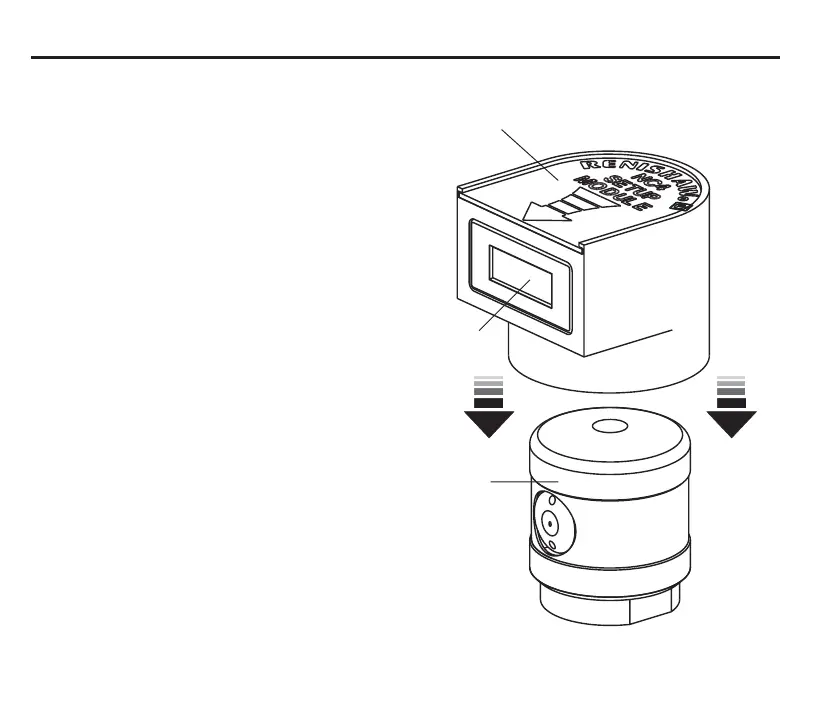

Set-up tool
Numerical
display
NC4 unit
