57
Checking the liquid level
Regularly check the level of the accumulated
liquid in each of the filter bowls. It is important
that the level is kept below the filter element.
Draining the liquid
Drain the liquid that has accumulated in a filter
bowl as follows:
1. Switch off the air supply. A quantity of liquid
will drain from the bowl.
2. Switch on the air supply and set the
pressure as described in “Setting the air
pressure” on page 34.
3. If the level of the liquid in the bowl is still too
high, repeat steps 1 and 2 until the level
reduces to a satisfactory level.

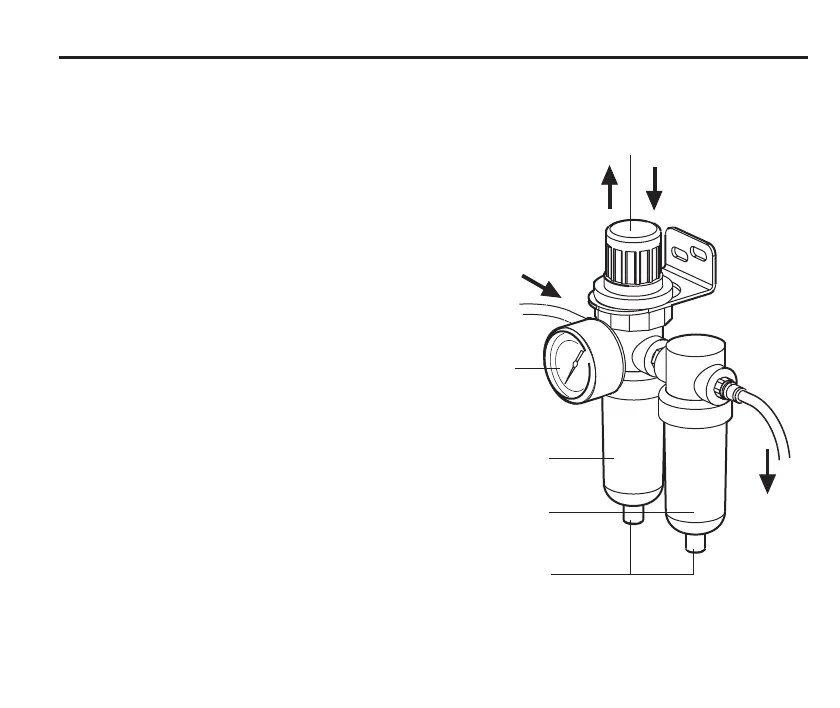

Maintenance – air regulator unit
Air pressure
regulator and
filter unit
Air pressure
adjusting knob
Oil removal
filter unit
Filter bowl
drain outlet
Push down
knob to lock
Pull up knob
before setting
pressure
Outlet
Inlet
Pressure
gauge
