Renishaw TSA - Active Stop Opto Switch Vane

4.2 ACTIVE STOP OPTO SWITCH VANE.
This set-up requires:
• That the Control PCB (A-2116-0520) is already fitted.
• All connectors are plugged in and wires are connected.
• Power is supplied to the TSA
Adjust the tightness of the 2 off M3 screws (P-SC17-0304) such that the vane can be
rotated by hand under moderate pressure.

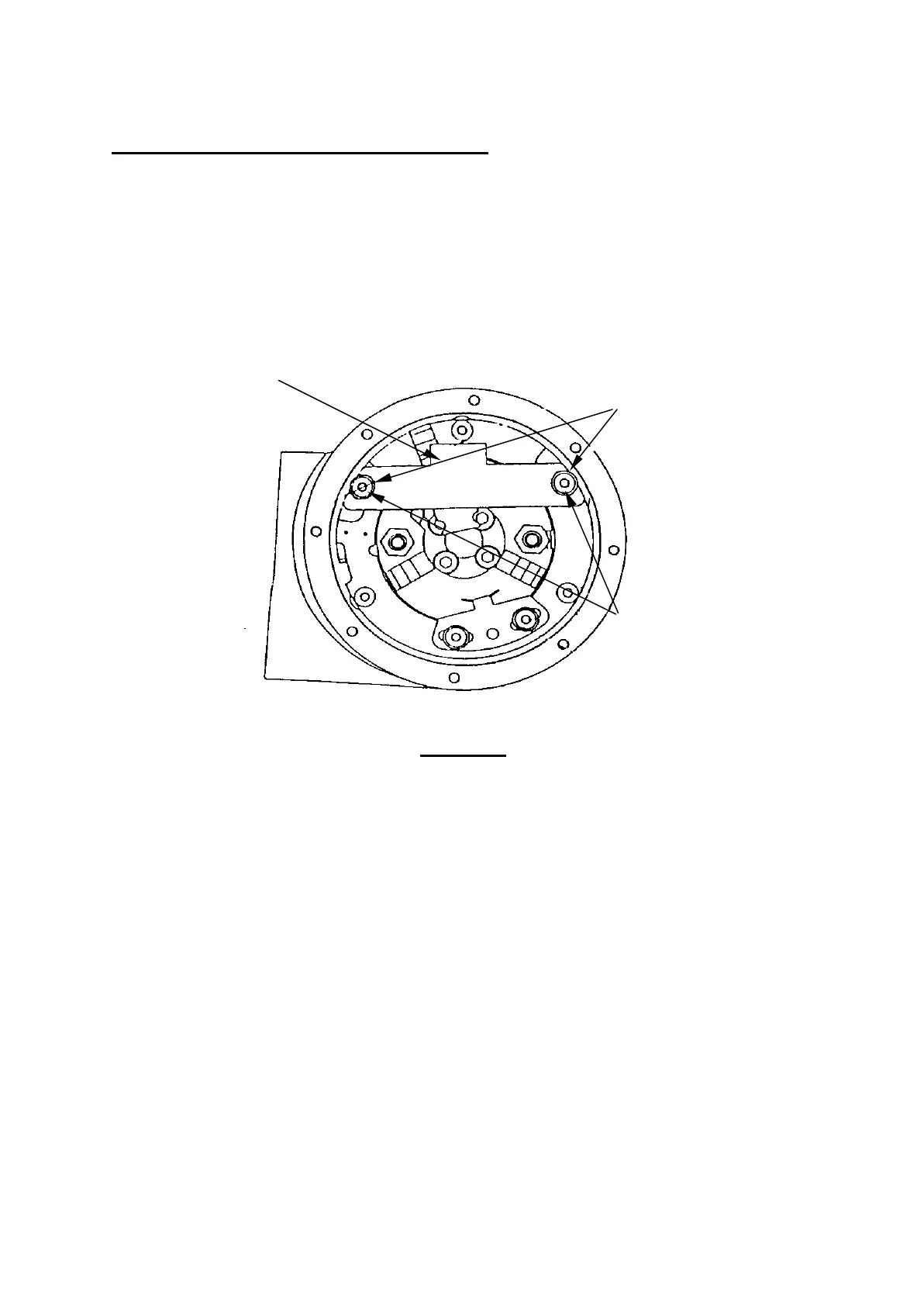

Figure 4.2
Active stop
opto switch
vane
M3 screws
(P-SC17-0304)
M3 washers
(P-WA01-0030)
