Reolink Argus User Manual


Chapter 4
Install the Camera


4.1 Reolink Argus Placement

➢ Rule No.1: Know Camera’s Field of View
The field of view of Reolink Argus is diagonal 130° and horizontal 110°,
please make sure the monitoring area is well within its field of view.


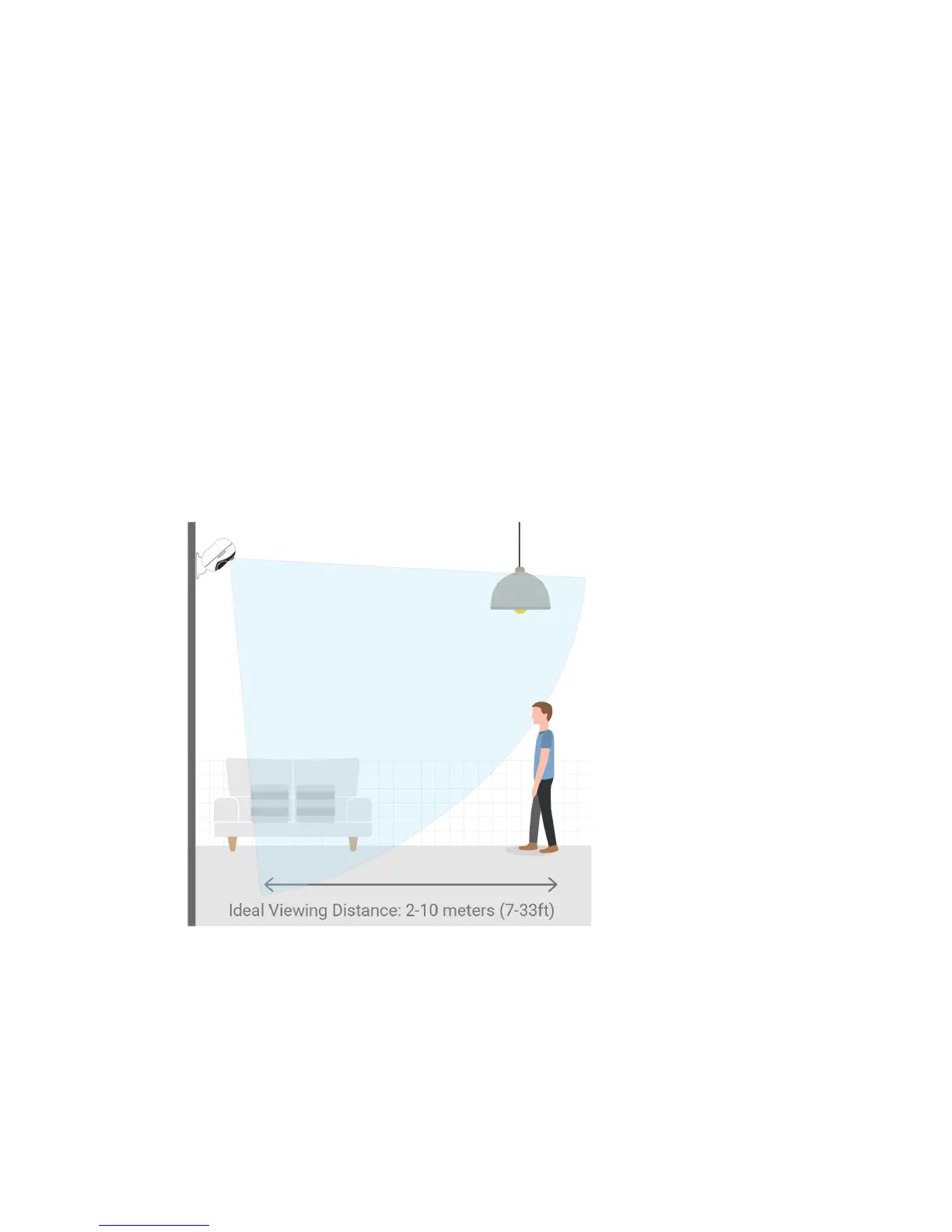

The ideal viewing distance is 2 to 10 meters (7ft — 33ft), which enables
you to recognize a human. To achieve better viewing experience, it's
advised not to place the camera too far away or too high from
designated monitoring areas (7ft — 33ft).



➢ Rule No.2: Understand the Detecting Field of the PIR
Motion Sensor
Our PIR motion sensor is more sensitive to side-to-side movement than
movement heading straight toward the camera or away from the
detecting field (horizontal 120˚) of the PIR motion sensor.

For example, when a person moves straight toward the camera (shown
below), the PIR motion sensor will be less sensitive to the movement.

14

Reolink Argus Specifications

General

Video Format	H.264
Wireless Standard	IEEE 802.11b/g/n
Operating Frequency	2.4 GHz
Operating Temperature	-10° C to 55° C (14° F to 131° F)
Resolution	1080p Full HD
Connectivity	Wi-Fi
Field of View	130°
Audio	2-way audio
Weatherproof	IP65
Storage	microSD card (up to 128GB)
Wireless Security	WPA/WPA2
