7. System Overview
7.1 Main System
An overview of the typical System is presented below.

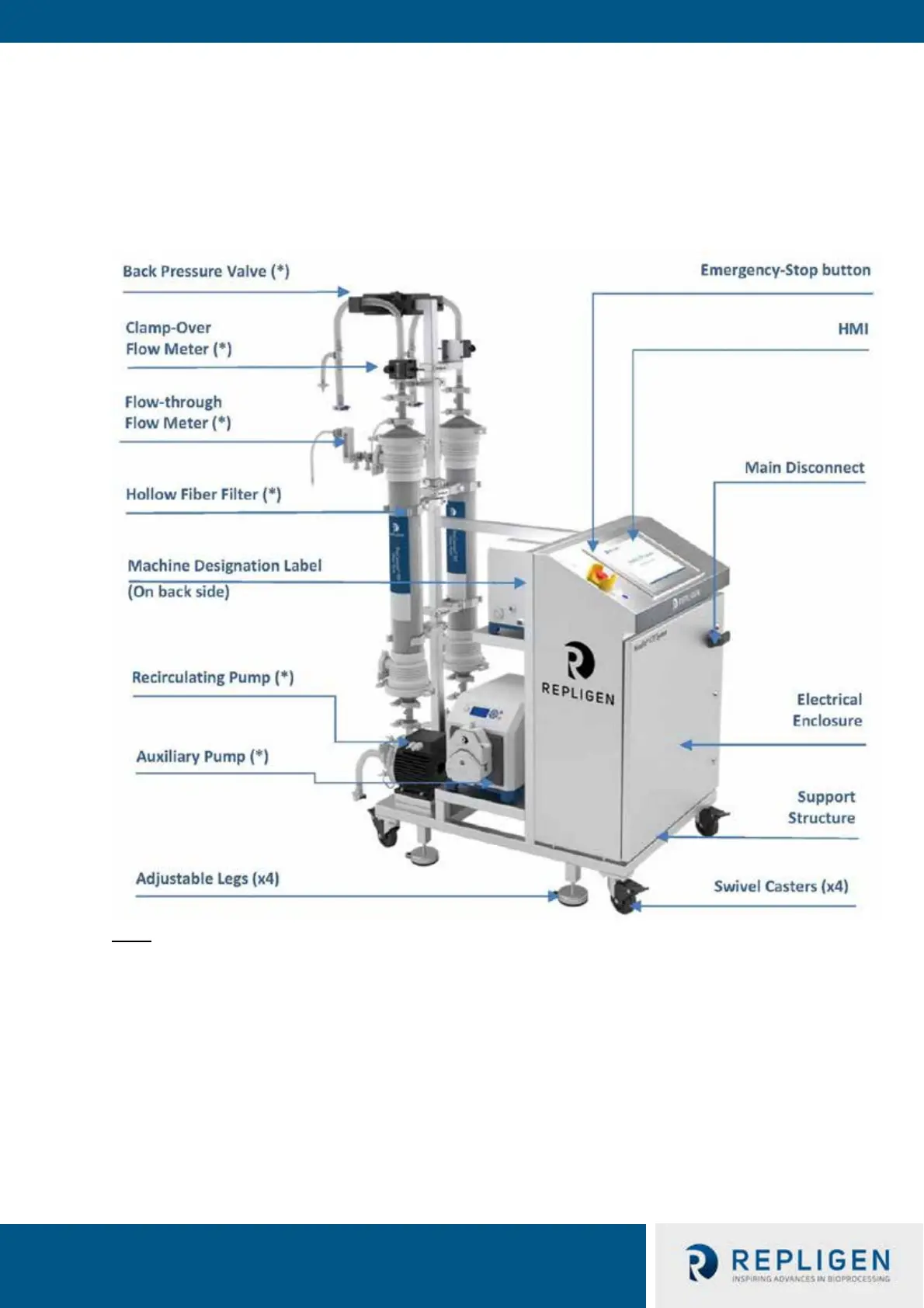

Figure 3. KrosFlo® System Overview
Note:
(*) The specifications and quantity of these components are subject to change depending on
System configuration.
(**) The System may come with other kits and carts such as scales, cassette carts, tanks, etc.
Refer to individual component User Guides for more information.
