IF.UG.IM_R1
10.1.2 Installing Ferrite Bead for Pressure Sensors
A ferrite bead (P/N 3000541) is provided for each pressure sensor to protect it against possible
electromagnetic interference (EMI). It is recommended to install the ferrite bead on each flow-path
pressure sensor cable to provide EMI protection for the pressure sensor.

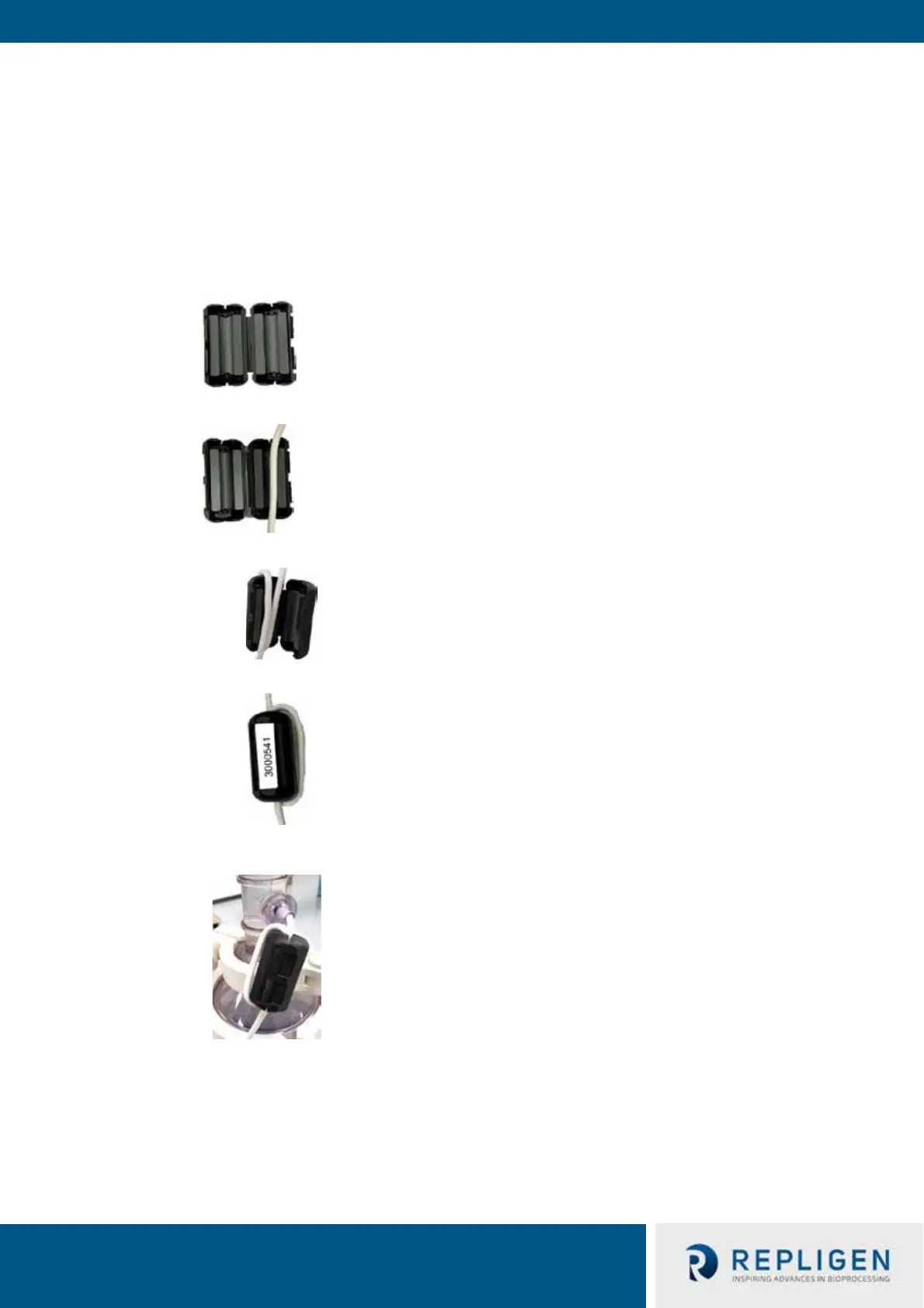

To install the supplied flow-path pressure sensor ferrite bead:
1. Locate the ferrite bead as close as possible to the flow-path pressure sensor while
ensuring there is enough cable to wrap around the ferrite bead.
2. Open the ferrite bead.
3. Seat the flow-path pressure sensor cable in the bead.
4. Wrap the cable around the bead.
5. Snap the bead closed.
The installed Ferrite Bead and Pressure Sensor should look like this.
