11.5 Process Screen

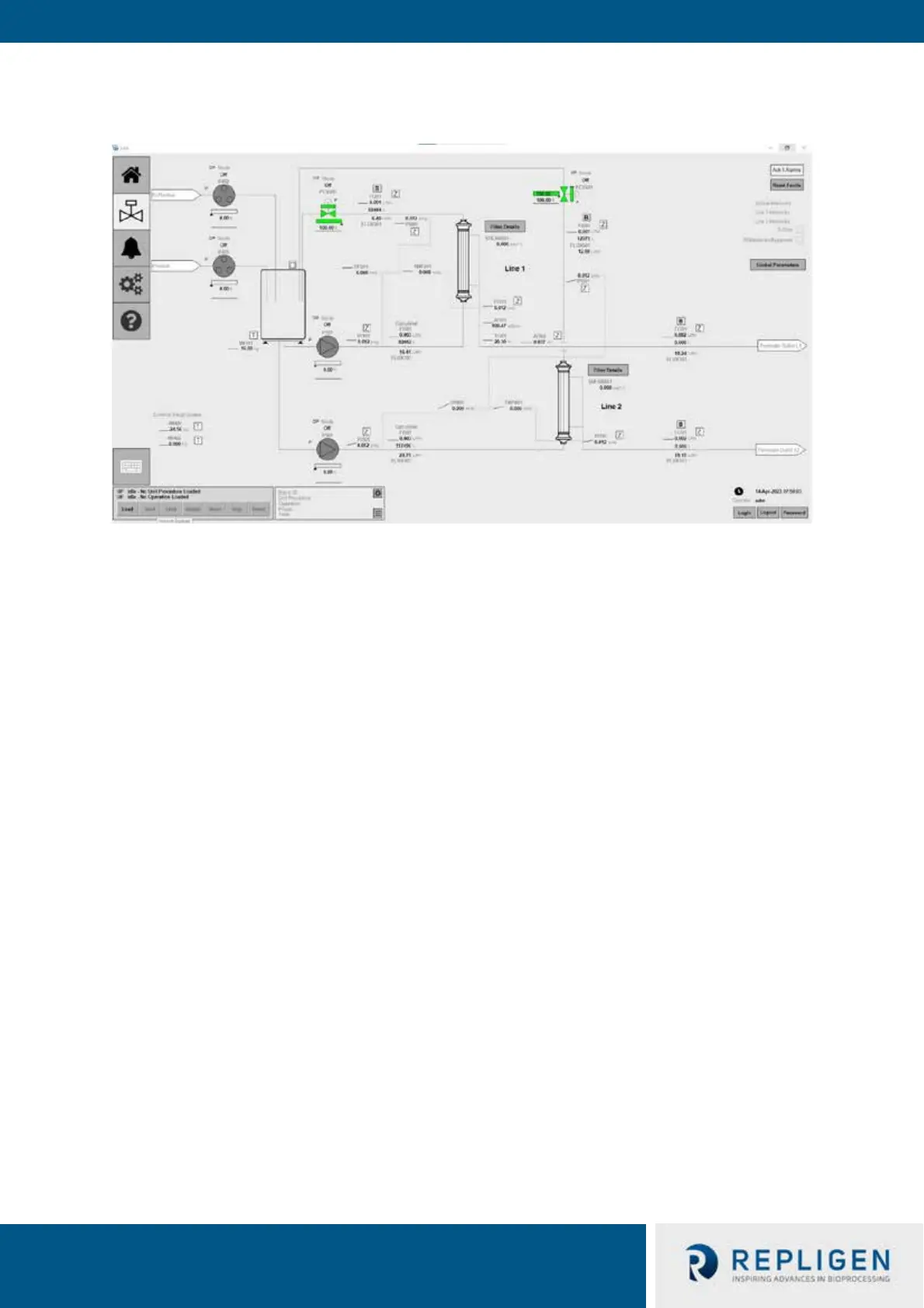

Figure 13. Sample Process Screen
The Process screen displays the System operational flow-path. The System operation and control
features can be observed on the Process screen. System components are identified by their ID tags
listed in a grey font. Process data (flow, pressure, volume) is displayed on screen in real time.
Process data outputs are displayed in the bolded display fields.
Operator and Hand (that is, Manual) modes of operation for the Recirculating and Product pumps
are selected here. The System can operate independently (outside of an automated process
sequence), allowing the operator greater flexibility in performing trials to optimize filter
performance prior to entering a run.
Setpoint data is entered by tapping a configurable component. Enter the new Setpoint data on the
component faceplate.
Press [Z] to zero out the corresponding displayed values for flowmeters and pressure sensors.
Select [T] to tare the corresponding scale.
Select Filter Display to show a list of specifications for the currently installed filter, including:
• Part Number: Filter part number.
• Module Family: Filter module family.
• Chemistry: The filter chemistry value.
• MWCO: The molecular weight cutoff value.
• Fiber ID: Real value indicating the fiber inner diameter in mm.
• Effective Length: Real value indicating the filter effective length in cm.
• Fiber Count: Integer indicating the filter fiber count.
• Module Surface Area: Real value indicating the surface area per filter in cm
2
.
• Quantity: Integer indicating the number of filters installed.
You may modify these filter values by selecting Update Current Filter.
