REPLIGEN Spectrum KMPi User Manual

62 400-12355-000 Rev. 03
KR2i / KMPi TFF Systems
Auxiliary Component Setup and Operation
10.3.2 Operation
SmartValve
Refer to Section 7.9.2 for operating and setting up the parameters in the Pump Control Window on
the PC. Refer to Section 7.10.3 for setting up and operating the valve from the main console touch
pad.
10.3.3 Automatic Backpressure Valve Settings
Depending on the style and number of Valves that are connected, not all settings are accessible.
Auto Mode Menu
a. Mode: Can be set to Auto or Manual-- if set to Manual, will switch to Manual Mode Menu
b. Set-point: What pressure set-point the Valve will attempt to reach and maintain
c. Tubing Size: Used to determine pinch distance
d. Control: Set whether Valve is controlling Feed, Permeate, Retentate, or TMP pressure
e. Start Position: The initial Start position before adjusting pinch distance; Open is no pinching,
Half is 50% closed based off of tubing size, Close is 100% closed based off of tubing size;
Custom is a custom position set by user
Manual Mode Menu
a. Mode: Can be set to Manual or Auto-- if set to Auto, will switch to Auto Mode Menu
b. % Closed: % of opening closed by pinch
c. Tubing Size: Used to determine pinch distance
10.4 KONDUiT
10.4.1 System Configuration and Major Components

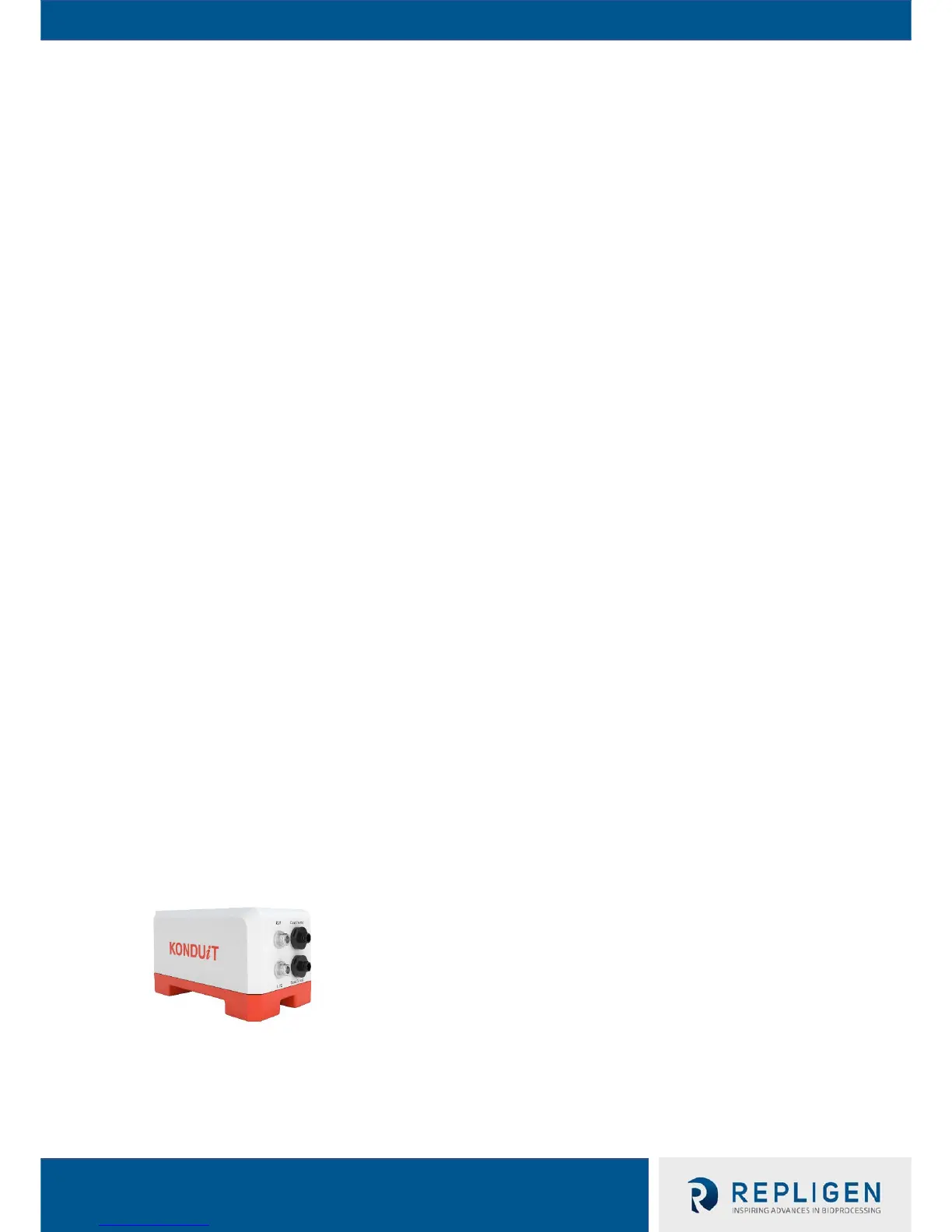

KONDUiT Body
The base unit of KONDUiT integrates Conductivity, Temperature, and UV monitoring and automation
functionalities into the TFF System (KR2i and KMPi) Includes 2 combination Conductivity and
Temperature inputs, 2 UV inputs, and power supply.
