8. From the Configure Collection menu, the user may:
a. Reopen the About Control dialog
b. Retrieve Interface License dialog
c. Use the Control button to retrieve the Pump Control window
d. Check “Always Show Control” checkbox to enable KF Comm to always load Control
window
e. Set Collection Intervals
f. Use the “Find Comm” tool to automatically detect and select the TFF system port
g. Open the Hardware settings menu to access Hardware, Auxiliary Pump, Valve, and
Pressure Alarms options
h. Apply all changes
9. After selecting the proper TFF system port and applying the changes, the workbook
template will start to blink and show live data retrieved from the TFF system and auxiliary
components
10. The TFF system can now be controlled through the Pump Control and data can now be
collected
11.5 Data Collection Tools

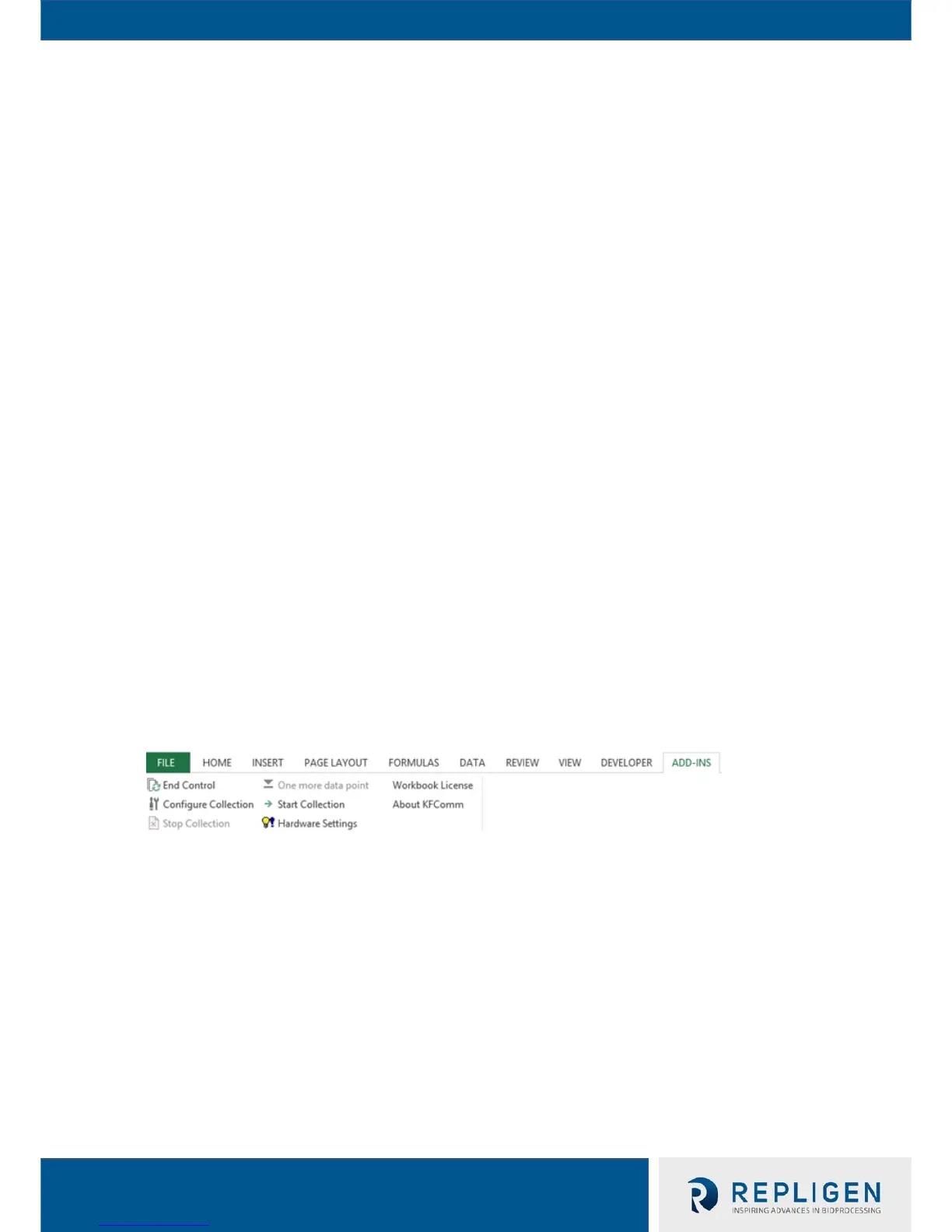

Data Collection Tools may be found in the “Add-ins” tab on the Excel ribbon. Different versions of
Excel may also display graphical icons to represent the tools.
a. End Control: Used to end data collection. Certain functions in Excel need to be disabled for
the data in the TFF Trial Template to be accessible. Clicking this will stop the spreadsheet
from receiving live data, stop collection, and disable other controls. The data can then be
saved and accessed for analysis like a normal Excel workbook. If the End Collection button is
clicked once, the saved data can still be used for further data collection. If the End Collection
button is clicked twice, the saved data cannot be used for further data collection
b. Configure Collection: Allows the user to open the Setup menu to configure basic KF Comm
settings
c. Stop Collection: After starting collection, the user may use the Stop Collection function to
suspend data collection
