11
English
3
1
2
4
5
6

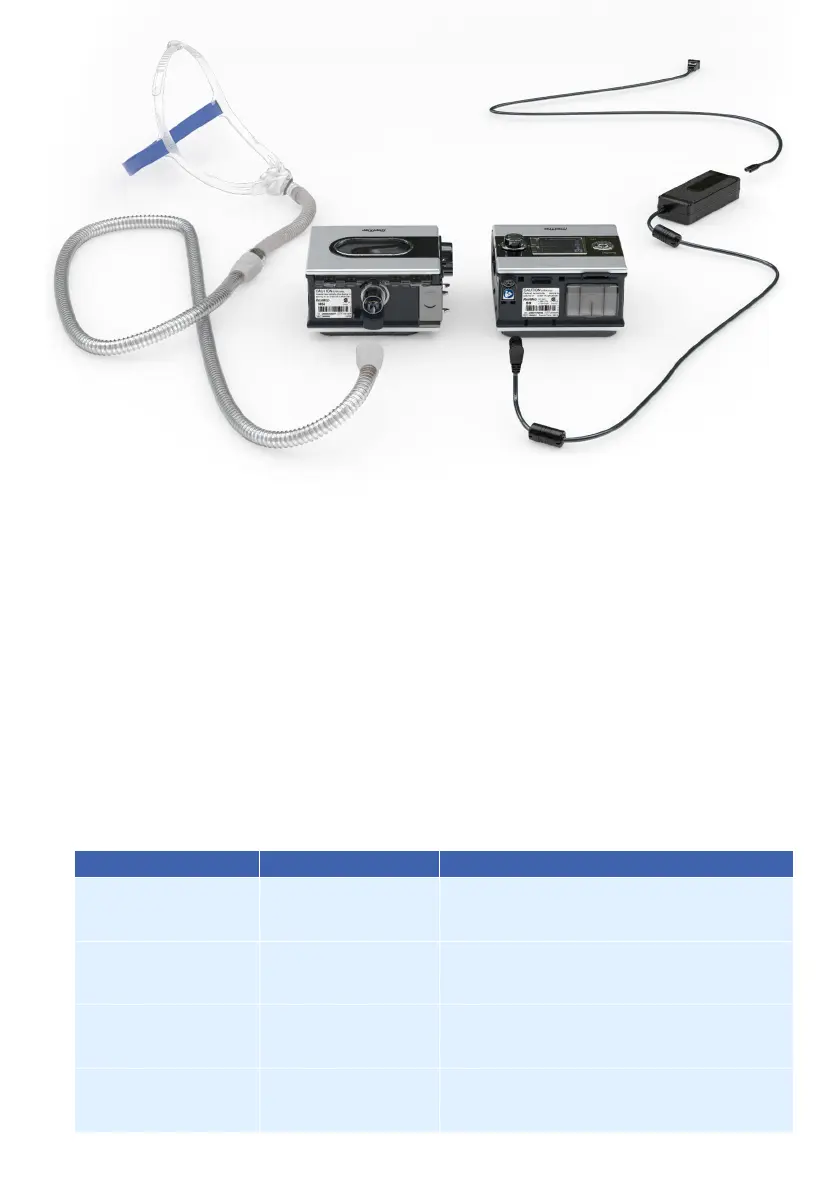

Setup
1. Align your H5i with your S9 and push them together until they click into place.
2. Connect the DC plug of the power supply unit to the rear of the S9.
3. Connect the power cord to the power supply unit.
4. Plug the other end of the power cord into the power outlet.
5. Connect one end of the air tubing firmly onto the air outlet.
6. Connect the assembled mask system to the free end of air tubing.
Mask and tubing setup
• For more information on assembling the mask see the mask user guide.
• If your patient is using a full face mask ensure that the “Full Face” setting is selected. If your patient
is using a nasal pillows mask ensure that the “Pillows” setting is selected. If your patient is using a
nasal mask ensure that the “Nasal” setting is selected with the exception of the Ultra Mirage mask
which should use the “Nasal Ultra” setting.
• For a complete list of recommended masks and their settings go to www.resmed.com on the
Products page under Service & Support. If you do not have internet access, please contact your
ResMed representative.
• The S9 device is compatible with the following tubing:
Tube Specifications Settings
SlimLine
Length:
Inner diameter:
6’ (1.8 m)
0.6” (15 mm)
Default setting
Standard
Length:
Inner diameter:
6’6” (2 m)
0.75” (19 mm)
If using the standard tubing, adjust the tube
setting in the Patient Setup or Clinical Setup
menus.
ClimateLine
Length:
Inner diameter:
Heated
6’6” (2 m)
0.6” (15 mm)
Automatically detected
ClimateLine
MAX
Length:
Inner diameter:
Heated
6’3” (1.9 m)
0.75” (19 mm)
Automatically detected
368220.indb 11 6/09/2011 9:21:37 AM
