ResMed S9 Series Clinical Guide

17
English
+ Advanced Info menu (Hold for 3 sec)
To access the Advanced Info menu, press and hold the Info and Setup buttons for three seconds. This
provides patients with additional therapy settings and compliance information.
This screen provides the same options as shown on the Clinical Info menu on the following page.
Setup menu
The Setup menu consists of:
• Patient Setup menu—allows the patient to optimize comfort settings as well as make changes to
the mask or tube type.
• Clinical Setup menu—allows the clinician to set all parameters and options pertaining to the
patient’s therapy.
Patient Setup menu
Only settings relevant to the patient are displayed in the Patient Setup menu. Depending on how the
device has been customized via the Clinical Setup menu, the following screens can be viewed:
EPR Level—displayed if set to PATIENT in the Clinical Setup menu.
Tube—only displayed if ClimateLine or ClimateLine
MAX
is not connected. If
ClimateLine or ClimateLine
MAX
is attached, no setting is required.
Climate Ctrl—only displayed if ClimateLine or ClimateLine
MAX
is connected
and also set to PATIENT in the Clinical Setup menu.
Mask—always available.
Mask Fit—only available in the S9 AutoSet and S9 Elite.
SmartStart—only available in the S9 AutoSet and S9 Elite and displayed if
set to PATIENT in the Clinical Setup menu.

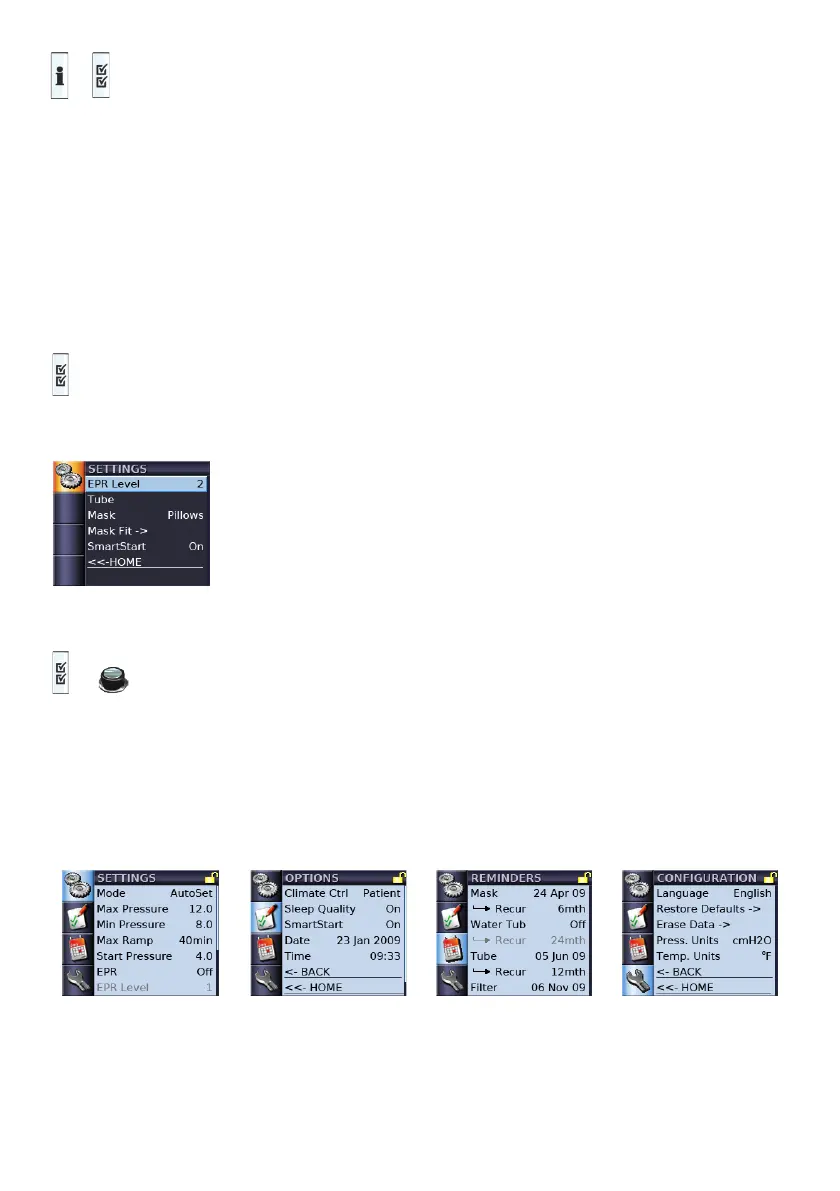

+ Clinical Setup menu (Hold for 3sec)
There are four screens available from the Clinical Setup menu:
• Settings—displays parameters directly affecting the patient’s therapy.
• Options—displays parameters affecting the patient’s comfort, therapy feedback and compliance
reporting.
• Reminders—displays parameters for accessories requiring replacement.
• Configuration—displays general device setting and resetting options.
Clinical menus are identified by the yellow open lock shown in the top right corner.
*SmartStart is only available in the S9 AutoSet and S9 Elite
Where further options exist on a screen, the blue scroll bar down the right of the screen (present on the
first two screens above) indicates your position within these options.
*
368220.indb 17 6/09/2011 9:21:48 AM

ResMed S9 Series Specifications

General

Data Storage	SD card
Device Type	CPAP Machine
Pressure Range	4 to 20 cm H2O
Sound Level	24 dB
Power Supply	100-240V AC, 50/60Hz
Therapy Modes	CPAP, VPAP ST, VPAP Auto
Altitude Adjustment	Yes
Operating Temperature	+41°F to +95°F (+5°C to +35°C)
Operating Humidity	10% to 95% non-condensing
AC Voltage	100-240V AC
Humidifier	optional
Ramp	Yes
