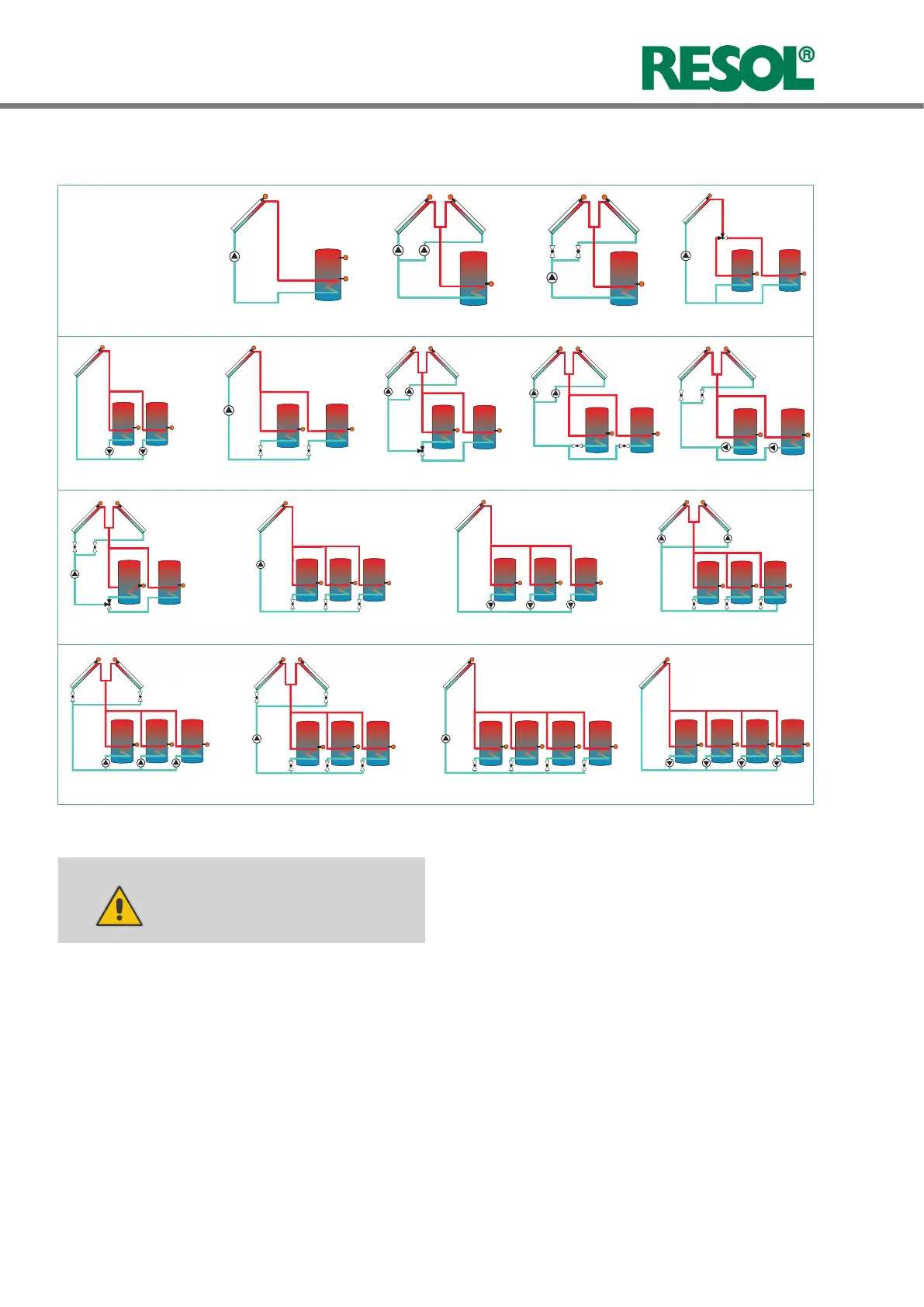

Beginning with system 2, different hydraulic variants are possible (pump or valve control):
system 1 system 2 variant 1 system 2 variant 2
system 6 variant 3system 6 variant 2
system 4 variant 4
system 3 variant 2
system 3 variant 1
system 7 variant 2
system 6 variant 1
system 7 variant 1
system 5 variant 1 system 5 variant 2
system 3 variant 3 system 4 variant 1 system 4 variant 2 system 4 variant 3
For each variant, the controller allocates the corresponding
relays and sensors. The allocations of the most important
combinations are shown in 3.5. The system and the variant
have to be selected rst (Solar/Options/...)!
DeltaSol
®
E
© RESOL 20160310 DeltaSol_E_V2.monen.indd
| 12
Important note: If you select a new system, any pre-
vious adjustments which have been
done will be set back to the factory
settings (reset)!
