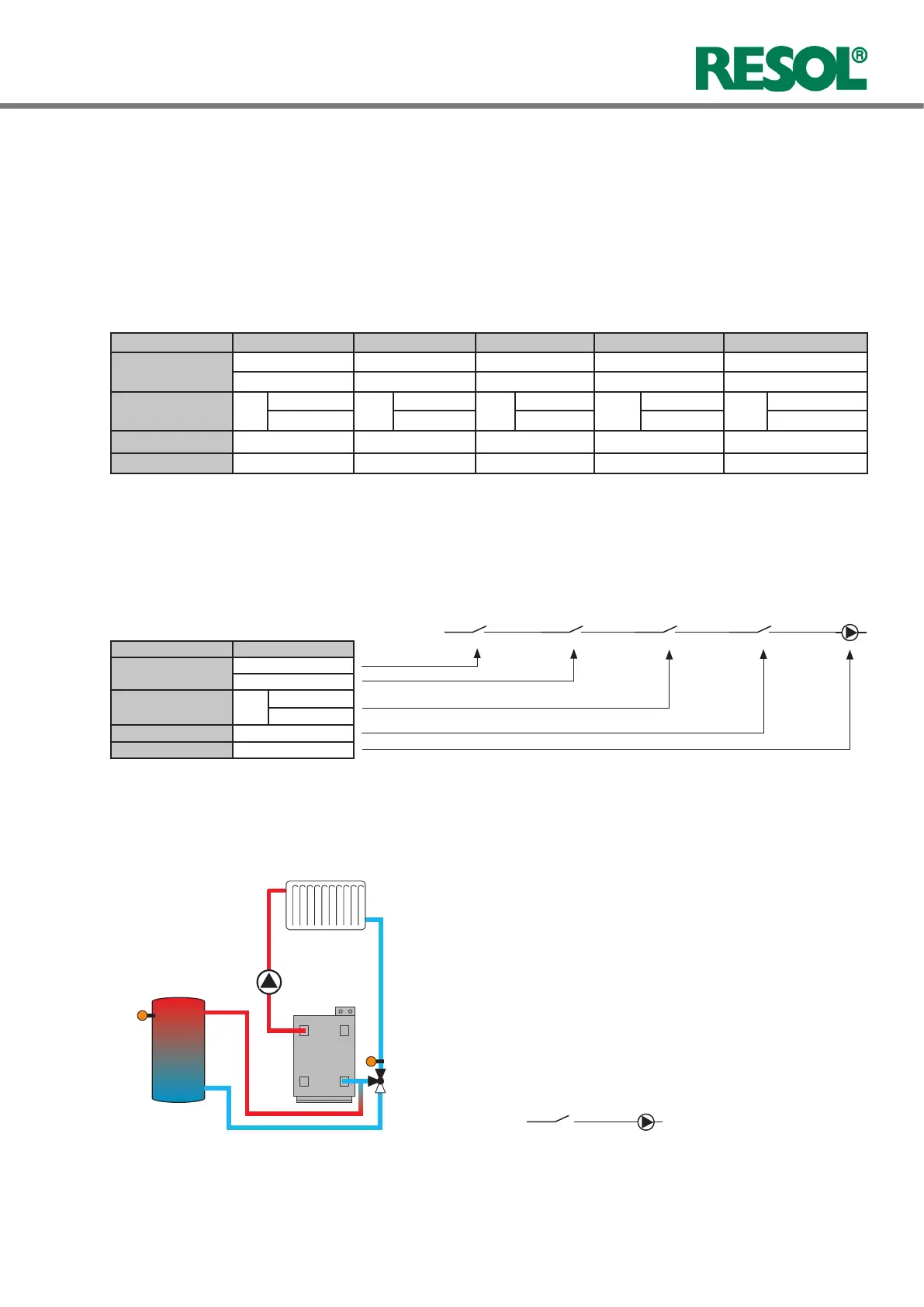

Resol DeltaSol E User Manual

The temperature differential function of a function block
has to be activated in order to implement a simple return
preheating function.
Function Function block 1 Function block 2 Function block 3 Function block 4 Function block 5
Thermostat
Thermostat 1- S3 Thermostat 3- S5 Thermostat 5- S5 Thermostat 7- S7 Thermostat 9- S9
Thermostat 2- S4 Thermostat 4- S6 Thermostat 6- S6 Thermostat 8- S8 Thermostat 10- S10
Differential func-
tion DT
DT- 5
Sen. 1 – S3
DT- 6
Sen. 1 – S5
DT- 7
Sen. 1 – S5
DT- 8
Sen. 1 – S7
DT- 9
Sen. 1 – S9
Sen. 2 – S4 Sen. 2 – S6 Sen. 2 – S6 Sen. 2 – S8 Sen. 2 – S10
Timer 1 2 3 4 5
Relay 3 4 5 6 7
Function Function block 1
Thermostat
Thermostat 1- S3
Thermostat 2- S4
Differential func-
tion DT
DT- 5
Sen. 1 – S3
Sen. 2 – S4
Timer 1
Relay 3
Arrangement/Options/DT-Func6 change setting to „Yes“.
S5
S6
R4
Examples:
Th1-S3
Th2-S4
DT5-S3>S4
Timer 1
R3
3.2 Function blocks
DT6-S5>S6
R4
Depending on the selected system/variant and other op-
tions e.g. internal heating circuit module, certain relays are
already assigned. Relays which are not assigned can be allo-
cated to one of the 5 function blocks other uses e.g.(extra
valves, stores, heat sources etc ).
Each function block provides 4 functions:
1 temperature differential function
2 thermostat functions
1 timer (with 21 time frames)
Within a function block, these functions can be activated
and combined as required in the menu (Arrangement/Op-
tions/...). All switch-on conditions of all activated functions
have to be fullled in order to energise the relay allocated
to the function block (Arrangement/Adj. values/...). These
functions can be compared to switches connected in series:
DeltaSol
®
E
© RESOL 20160310 DeltaSol_E_V2.monen.indd
13 |
