Resol DeltaSol E User Manual

DeltaSol
®
E
© RESOL 20160310 DeltaSol_E_V2.monen.indd
47 |

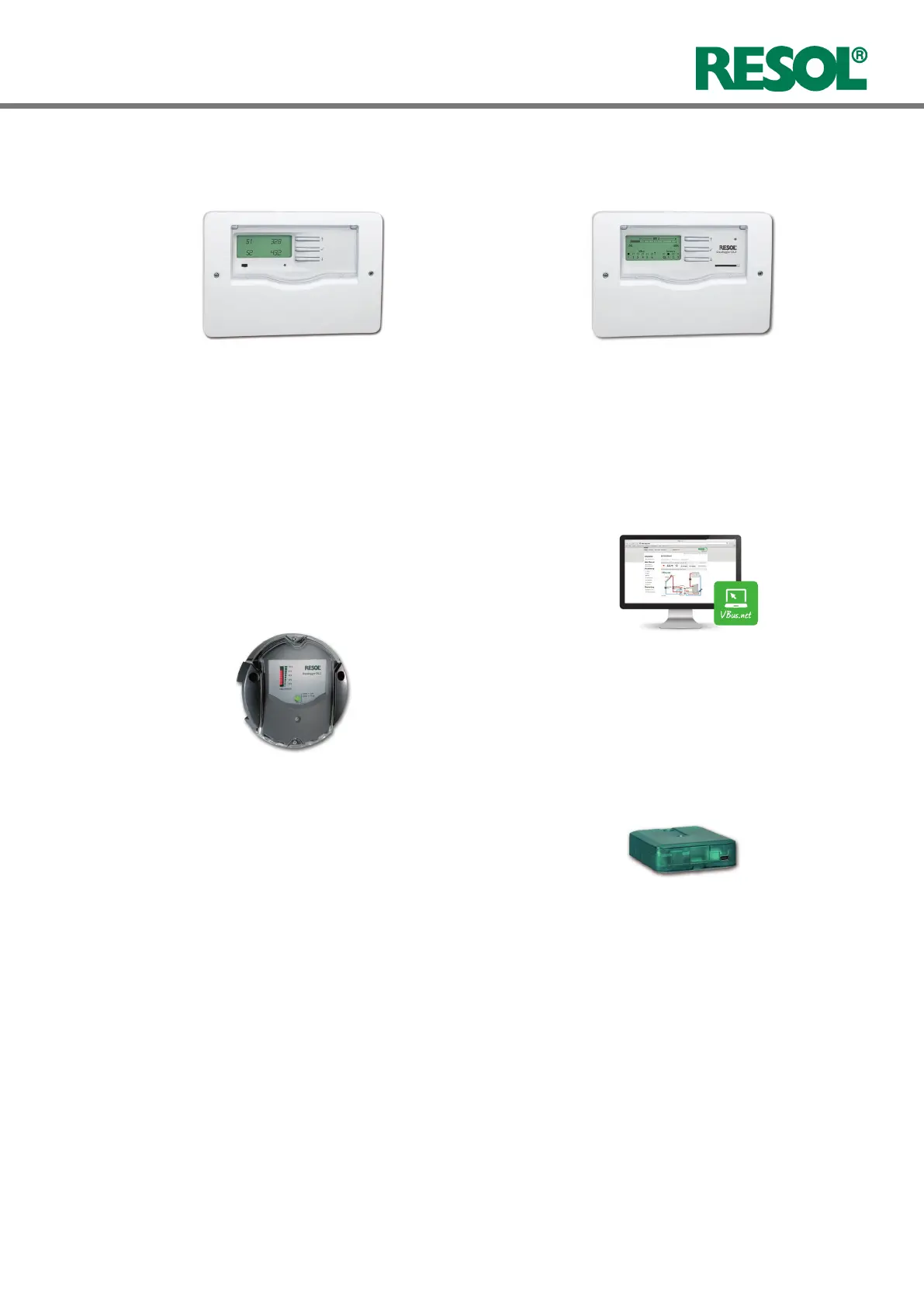

HKM3 Heating circuit extension module
The HKM3 heating circuit extension module enables the
control of an additional heating circuit. A simple VBus
®
con-
nection is enough to add a complete weathercompensated
heating circuit to the controller. The HKM3 is equipped
with 6 sensor inputs, one of which can be used for the
optional RTA11-M remote control. Four semiconductor
relays are available for controlling the mixing valve and the
heating circuit pump. Additionally, a potential-free relay can
be used for afterheating demand.In combination with the
controller connected, the HKM3 not only controls the ba-
sic functions of the heating circuit and the DHW priority,
it also has an antifreeze function and a blocking protection
for the heating circuit pump.
DL2 Datalogger
This additional module enables the acquisition and storage
of large amounts of data (such as measuring and balance
values of the solar system) over a long period of time. The
DL2 can be con gured and read-out with a standard inter-
net browser via its integrated web interface. For transmis-
sion of the data stored in the internal memory of the DL2
to a PC, an SD card can be used. The DL2 is appropriate
for all controllers with RESOL VBus
®
. It can be connected
directly to a PC or router for remote access and thus ena-
bles comfortable system monitoring for yield monitoring
or for diagnostics of faults.
DL3 Datalogger
Be it solar thermal, heating or DHW heat exchange con-
trollers – with the DL3, you can easily and conveniently log
system data of up to 6 controllers. Get a comprehensive
overview of all controllers connected with the large full
graphic display. Transfer data with an SD memory card or
use the LAN interface to view and process data on your
PC.
VBus.net
The Internet portal for easy and secure access to your sys-
tem data.
VBus.net is all about the data of your RESOL controller.
Live data of your system, customized  lter settings and
much more await you.
6.3 Interface adapters
RESOL VBus
®
/ USB & VBus
®
/ LAN interface adapters
The new VBus
®
/ USB interface adapter is the interface be-
tween the controller and a personal computer. With its
standard mini-USB port it enables a fast transmission of
system data for processing, visualising and archiving via the
VBus
®
. A full version of the RESOL ServiceCenter software
is included.
The VBus
®
/ LAN interface adapter is designed for the di-
rect connection of the controller to a PC or router. It ena-
bles easy access to the controller via the local network of
the owner. Thus, controller access and data charting can
be effected from every workstation of the network. The
VBus
®
/ LAN interface adapter is suitable for all controllers
equipped with a RESOL VBus
®
. A full version of the RESOL
ServiceCenter software is included.
