ground-common terminal block

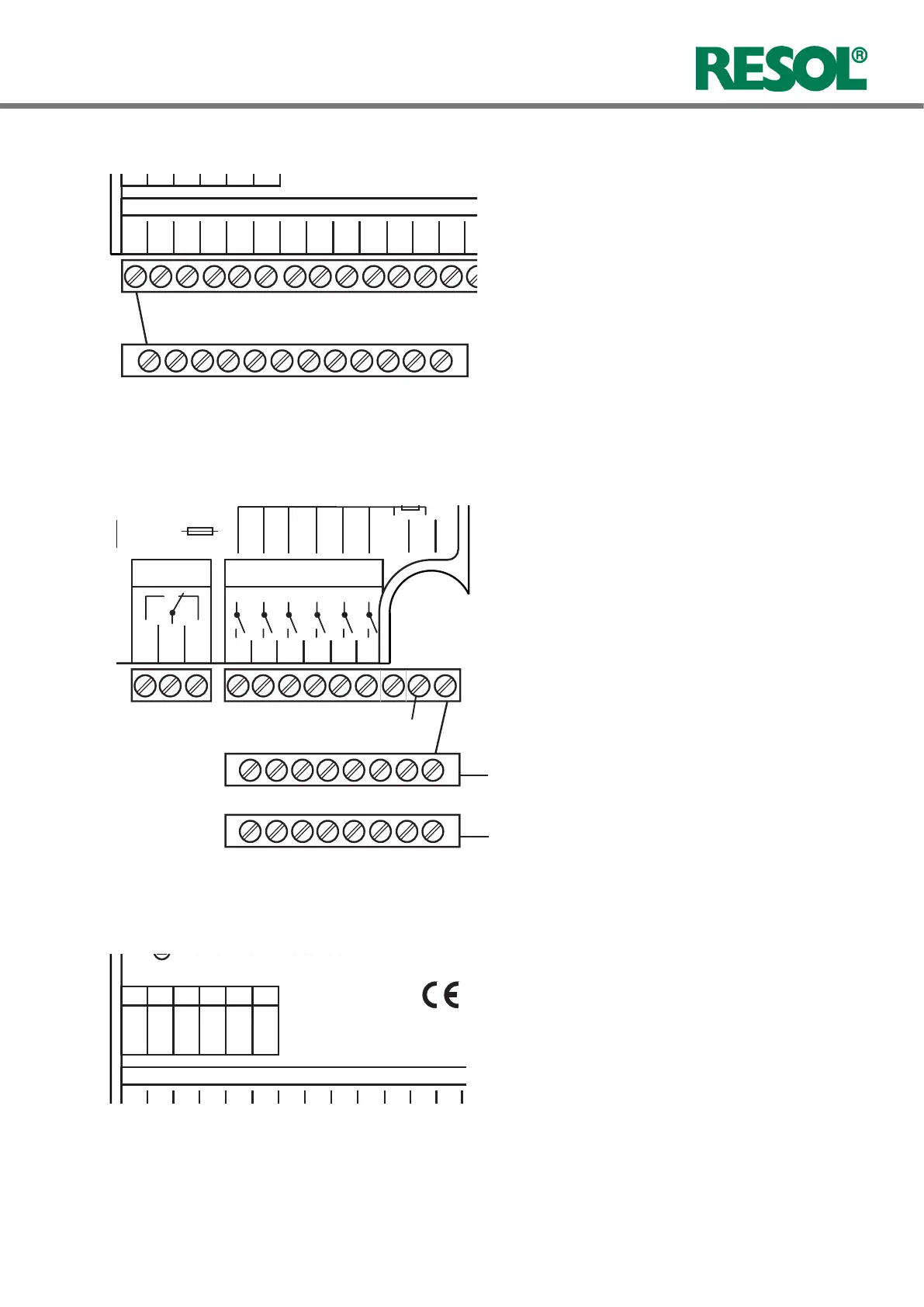

The controller is equipped with 12 sensor inputs in total.
The ground connection for the sensors has to be carried
out via the ground terminal block (GND).
• Temperature sensors have to be connected to the
terminals S1 … S10 and GND (either polarity)
• The irradiation sensor (CS10) is to be connected to
the terminals CS10 and GND with correct polarity.Con-
nect the terminal GND of the sensor to the terminal
GND of the controller (ground terminal block), and the
terminal CS of the sensor to the terminal CS10 of the
controller.
• A owmeter V40 can be connected to the terminals
V40 and GND (either polarity).
The power supply to the controller must be carried out via
an external power switch (last step!) and the supply voltage
must be 100 … 240 V~ (50 … 60 Hz). Flexible cables must
be attached to the housing with the enclosed strain relief
and the corresponding screws or be run into the controller
housing in a cable conduit or trunking .
ground terminal ⌯ (common terminal block)
neutral conductor N (common terminal block)
conductor L
GND
S1
CS10
S8
S10
V40
R7-A
R7-M
R7-R
R6
R5
R1
R2
R3
R4
S9
S7
S6
S5
S4
S3
S2
Sensors
Bus
VBus
floating relay
semiconductor relay
OK / Set
R1-R6
1 (1) A (100 ... 240) V~
4 (1) A (100 ... 240) V~
R7
Netz / Mains
100 ... 240 V~
50-60 Hz
T4A
IP 20
L' LN
Vor Öffnen Gerät spannungslos
schalten!
Isolate mains before removing cover!
Masse-Sammelklemme benutzen
Use the ground common terminal block
Neutralleiter.
Sammelklemme benutzen!
Use neutral conductor
collective block
Erdungsleiter-Sammel-
klemme benutzen!
Use ground common
terminal block!
GND
PWMA
PWMB
PWMC
GND
GND
12
34 5
6
Made in Germany
DeltaSol
®
E
V2
The speed of a HE pump is controlled by means of a PWM
signal. The pump must be connected to the relay as well as
to one of the PWM outputs of the controller.
The HE pump is supplied with power by switching the cor-
responding relay on or off. The terminals marked PWM
A, B and C / GND are control outputs for pumps with a
PWM control input.
1.2.5 Mains supply
1.2.6 PWM outputs
