Resol DeltaSol E User Manual

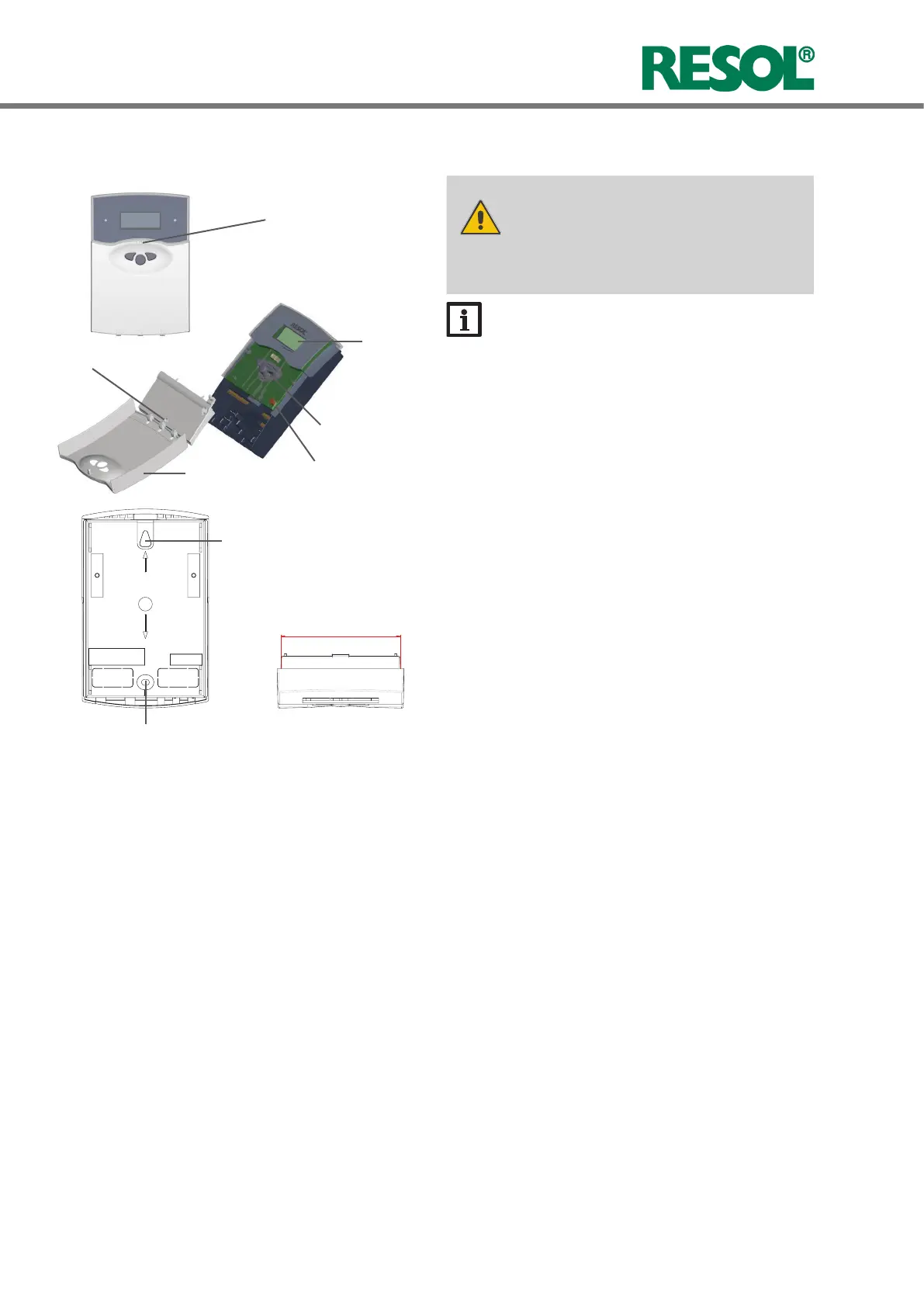

1. Installation
fastening
fastening
display
push button
fuse T4A
front cover
push-push locking mechanism
push to open
push to close
screw
135 mm
144 mm
WARNING!
Electric shock!
Upon opening the housing, live parts are
exposed!
ÎAlways disconnect the controller
from power supply before opening
the housing!
Note:
Strong electromagnetic elds can impair the func-
tion of the controller.
Î Make sure the controller as well as the system
are not exposed to strong electromagnetic elds.
The unit must only be located in dry interior locations. It
is not suitable for installation in hazardous locations and
should not be placed close to any electromagnetic elds. The
controller must additionally be supplied from a double-pole
switch with contact gap of at least 3 mm. Please pay atten-
tion to separate routing of sensor cables and mains cables.
1. Open the front cover by pushing it. Unscrew the cross-
head screw from the cover and remove it along with the
front cover from the housing.
2. Mark the upper fastening point on the wall and drill and
fasten the enclosed wall plug and screw leaving the head
protruding.
3. Hang the housing from the upper fastening point and
mark the lower fastening point through the hole in the
terminal box (centres 135 mm). Drill and insert the low-
er wall plug.
4. Hang the housing from the upper fastening point and
attach with the lower screw.
5. Carry out connection in accordance with the terminal
allocation.
6. Insert cover and attach with the cross-head screw. Close
the front cover properly.
1.1 Montage
DeltaSol
®
E
© RESOL 20160310 DeltaSol_E_V2.monen.indd
| 4
