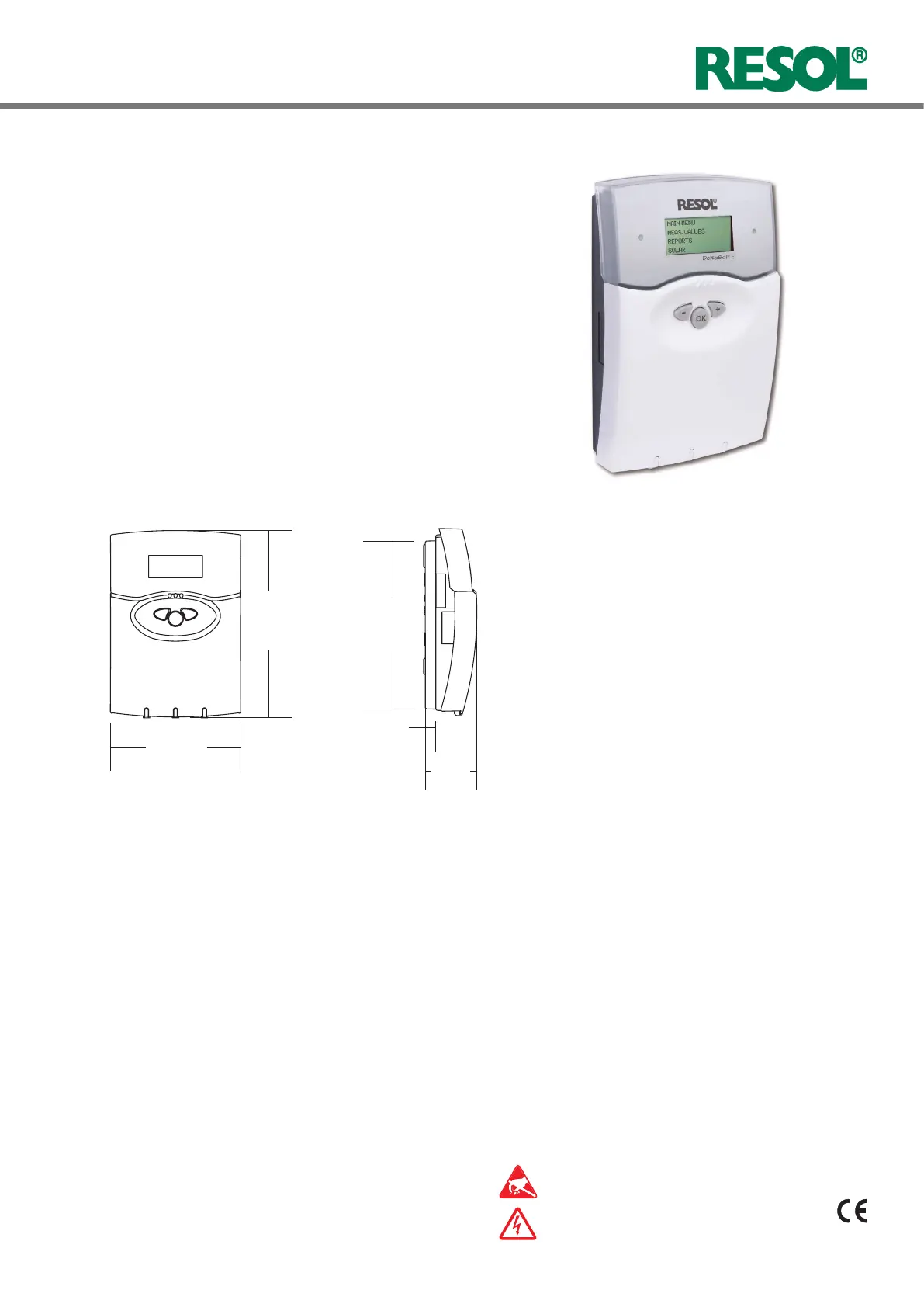

Resol DeltaSol E User Manual

155,0
220,0
202,0
12,0
62,0
• 30 schemes to choose from
• speed control, solar operating hours counter and
heat quantity measurement
• 12 sensor inputs
• 7 relay outputs
• function control
• RESOL VBus
®
• 3 PWM outputs for the speed control of high-
efciency pumps
Technical Data:
Inputs: 10 sensor inputs for Pt1000, CS10, V40
Outputs: 6 semiconductor relays, 3 of them for pump
speed control, 1 potential-free relay and 3 PWM outputs
(convertible to 0-10 V signal outputs)
PWM frequency: 512 Hz
PWM voltage: 10.5 V
Switching capacity:
1 (1) A 240 V~ (semiconductor relay)
2 (1) A 24 V
⎓
/ 240 V~ (potential-free relay)
Total switching capacity: 4 A 240 V~
Power supply: 100 … 240 V~ (50 … 60 Hz)
Supply connection: type Y attachment
Standby: 0.98 W
Temperature controls class: III
Energy efciency [%]: 1,5
Mode of operation: type 1.B.C.Y action
Rated impulse voltage: 2.5 kV
Data interface: RESOL VBus
®
VBus
®
current supply: 35 mA
Functions: heating circuit backup, heat exchange control,
thermostatic afterheating, solid fuel boiler, heat quantity
measurement, collector cooling function, tube collector
function, antifreeze function, minimum limitation, speed
control, screed drying, function control
Housing: plastic, PC-ABS and PMMA
Mounting: wall mounting, mounting into patch panels is
possible
Indication / Display: 4-line LC text display, illuminated,
menu-driven (multilingual)
Operation: 3 push buttons at the front
Ingress protection: IP 20 / EN 60529
Protection class: II
Ambient temperature: 0 … 40 °C
Pollution degree: 2
Dimensions: 227 x 156 x 62 mm
Attention: Electrostatic discharge can cause dam-
age of electronic components
Warning: high-voltage components
The DeltaSol
®
E controller is designed for solar thermal
systems and heating systems. It is preprogrammed for 7
basic systems or 30 schemes which can even be used to
control large systems. A multitude of adjustable functions
and options are realised by 7 relay outputs, 12 sensor in-
puts for Pt1000, CS10 and V40. Due to its intelligent and
easy-to-understand system conguration and its integrated
calorimeter, the controller also offers the control of com-
plex systems with up to 4 weather-compensated heating
circuits. For data communication and remote maintenance,
the controller is equipped with the RESOL VBus
®
, which
opens the bidirectional way to modules, PCs or data log-
ging.
DeltaSol
®
E
© RESOL 20160310 DeltaSol_E_V2.monen.indd
3 |
