Resol DeltaSol E User Manual

2. Operation and function

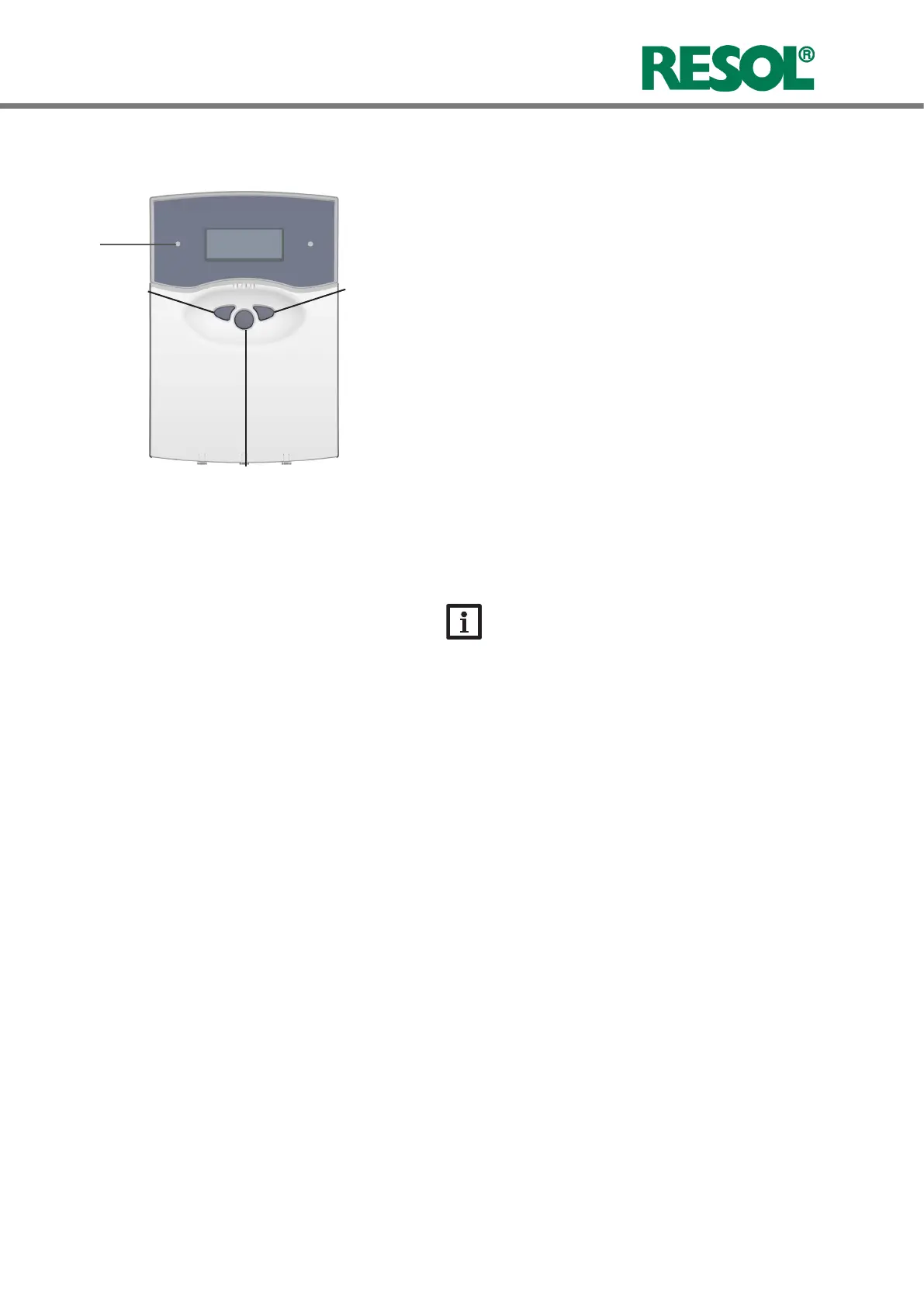

2.1 Buttons for adjustment
1
3
2
(-) backwards
forwards (+)
SET / OK
(selection / adjustment mode)
control lamp
2.2 Control lamp
The controller is equipped with a red-/green control lamp.
The following control and system status are signalled as
shown:
• green automatic operation
• red ashing: malfunction of the system
• green ashing: manual mode
The controller is operated via the 3 push buttons below the
display. The forward-button (1) is used for scrolling forward
through the menu or to increase the adjustment values.The
backward-button (2) is similarly used for scrolling backwards
and reducing values. Button 3 is used for selection of the
menu lines and for conrmation.
• Briey press button 3 in order to access the main menu
• Select the requested menu using buttons 1 and 2.
• Briey press button 3, the selected submenu is then
shown on the display. By selecting the menu line "back",
the display returns to the former menu level.
• Press buttons 1, 2 and 3 to scroll until the choosen
menu line is reached.
• Briey press button 3 in the respective menu line to
modiy adjustment values - „change value“ appears on
the display - adjust the requested value by pressing the
buttons 1 and 2 (for large intervals, keep the button
pressed).
• Briey press button 3 in order to nish the adjustment.
• To save the change, answer the security inquiry „Save?“
by choosing „yes“ or „no“ (buttons 1 and 2) and con-
rm with button 3.
Note:
If in the display mode no button is pressed within 4
minutes, the display changes back to measured val-
ues menu (in the case of a message, the message
menu is indicated).
When button 3 is pressed for 2 seconds, the display changes
back to the main menu.
