Operating the Device
33

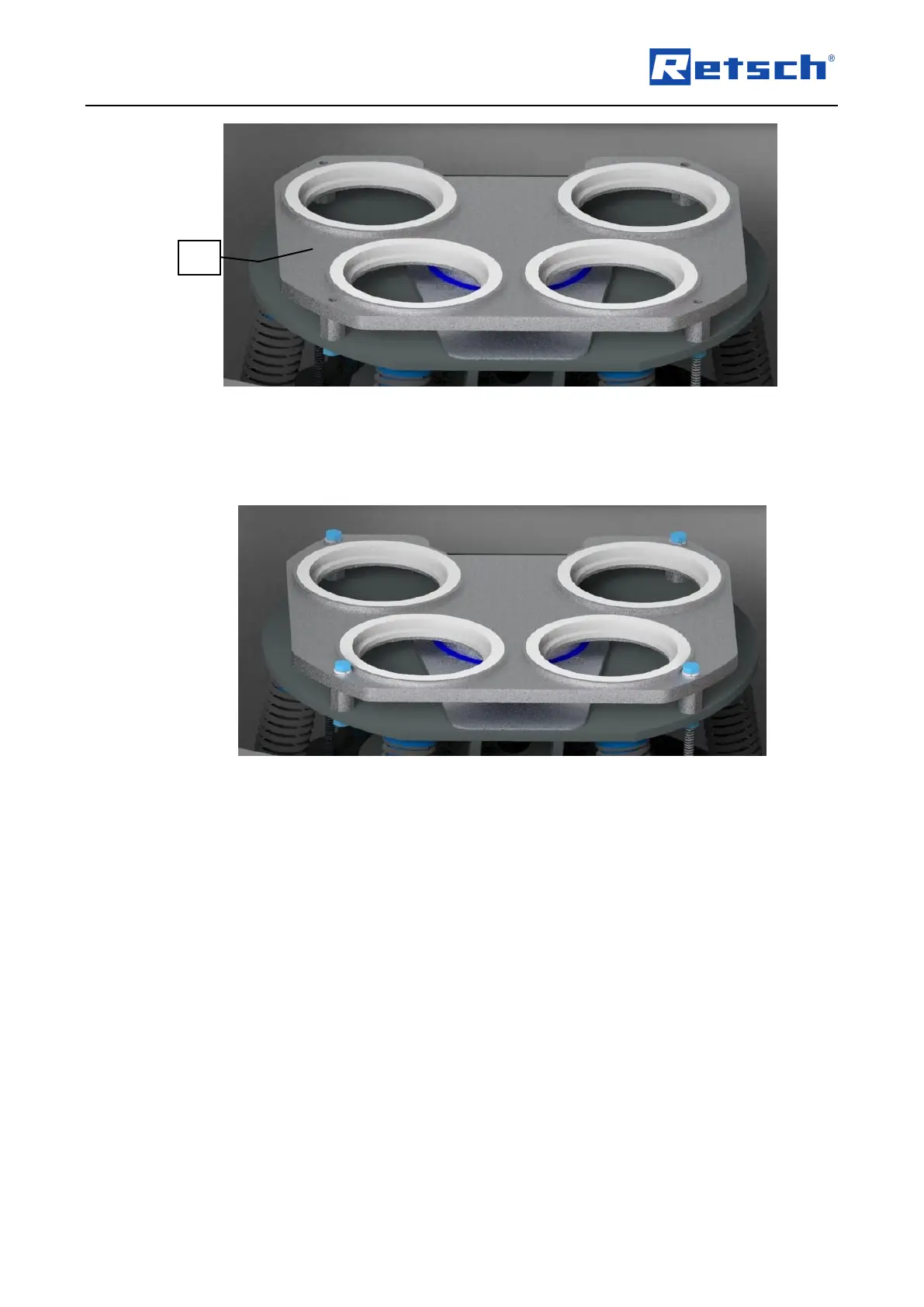

Abb. 20: Inserting the adapter plate
4. Secure the adapter plate using the enclosed M10 hexagon bolts, washers and circlips
(marked in blue). Tighten the bolts to 60 Nm.
Abb. 21: Obere Befestigung der Adapterplatte
5. Likewise tighten the hexagon bolts mounted in Step 1 to 60 Nm.
6. You can now insert the grinding jars (marked in blue) into the adapter plate.
