Retsch RS 300 - Installation of the 4-Part Adapter Plate

Operating the Device
32
6.11 Installation of the 4-part adapter plate
Steps for installing the 4-part adapter plate :
1. Screw the four spacer bolts hand tight to the enclosed M10 hexagon bolts, washers and
circlips (1).

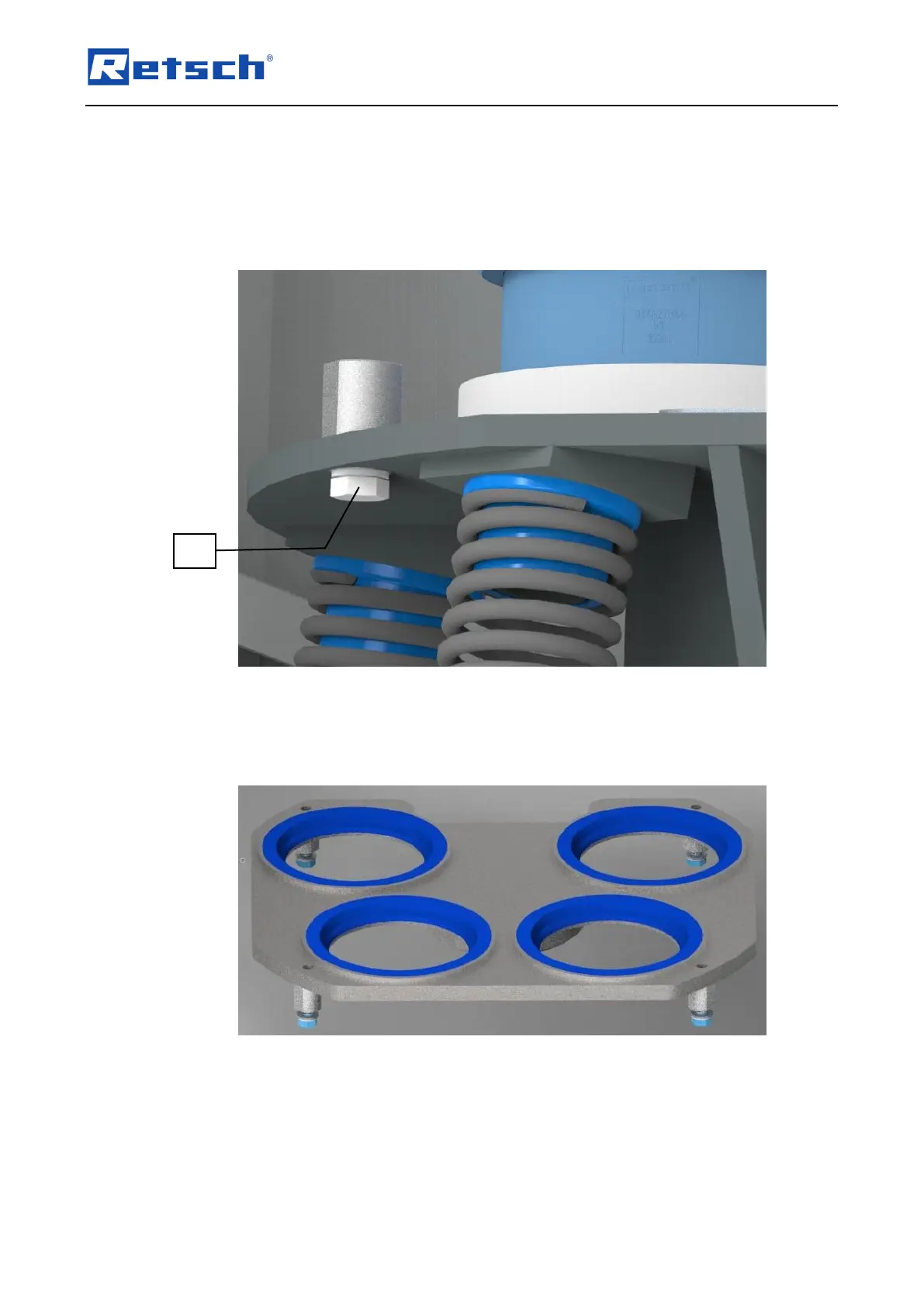

Abb. 18: Bottom mounting of the spacer bolts
2. Fit the desired insert rings (marked in blue) to the 4-part adapter plate.
Abb. 19: Inserting the insert rings
3. Insert the adapter plate (2), ensuring that the hole pattern on the adapter plate corresponds
to the tapped holes of the spacer bolts.
1
