Retsch SK 300 - Page 23

First Commissioning
23
− cross bar (UG2)
− left roller rail (UG3)
− right roller rail (UG4)

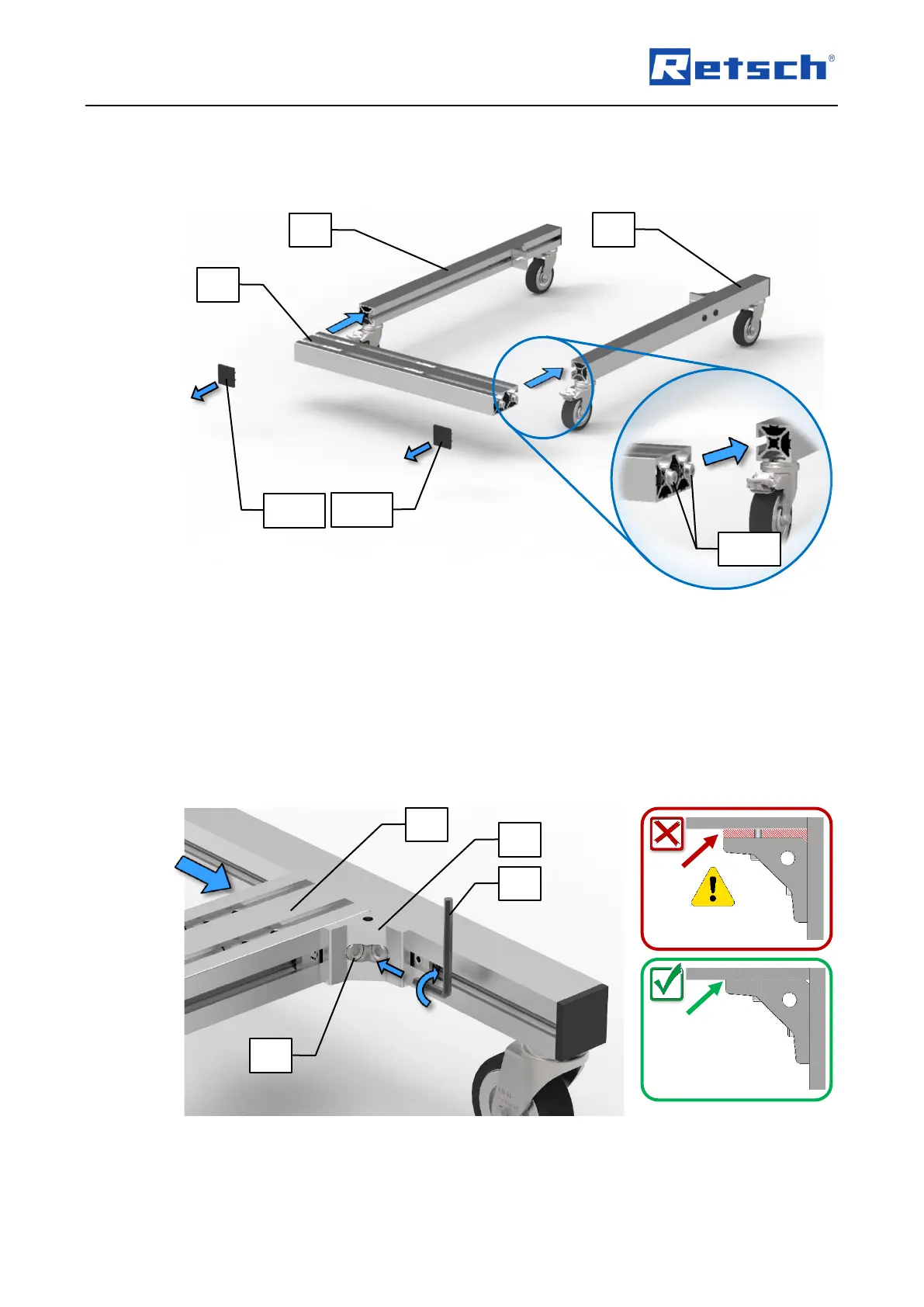

Fig. 6: Assembly of the cross bar
 Remove the two front covers (UG3.1) and (UG4.1) from the left and right roller rails (UG3)
and (UG4).
 Loosen the four hexagon socket head screws (UG2.1) on the cross bar (UG2) by means of
the supplied hexagon socket wrench (IM).
 Slide the cross bar (UG2) into the lateral guides of the left and right roller rails (UG3) and
(UG4). When doing so, make sure that the washers of the four hexagon socket head screws
(UG2.1) are located inside the roller rails.
Fig. 7: Attaching the cross bar to the brackets
 Use the two supplied M8x16 hexagon socket head screws (WK2) to screw the cross bar
(UG2) to the two brackets (WK1) of the left and right roller rails.
UG2
UG3
UG4.1
UG4
UG3.1
UG2.1
UG2
WK1
WK2
IM
