First Commissioning
24
 Tighten the hexagon socket head screws (WK2) firmly to the left and right brackets (WK1).
NOTICE Ensure that the cross bar (UG2) lies flush against the two pre-assembled brackets
(WK1).

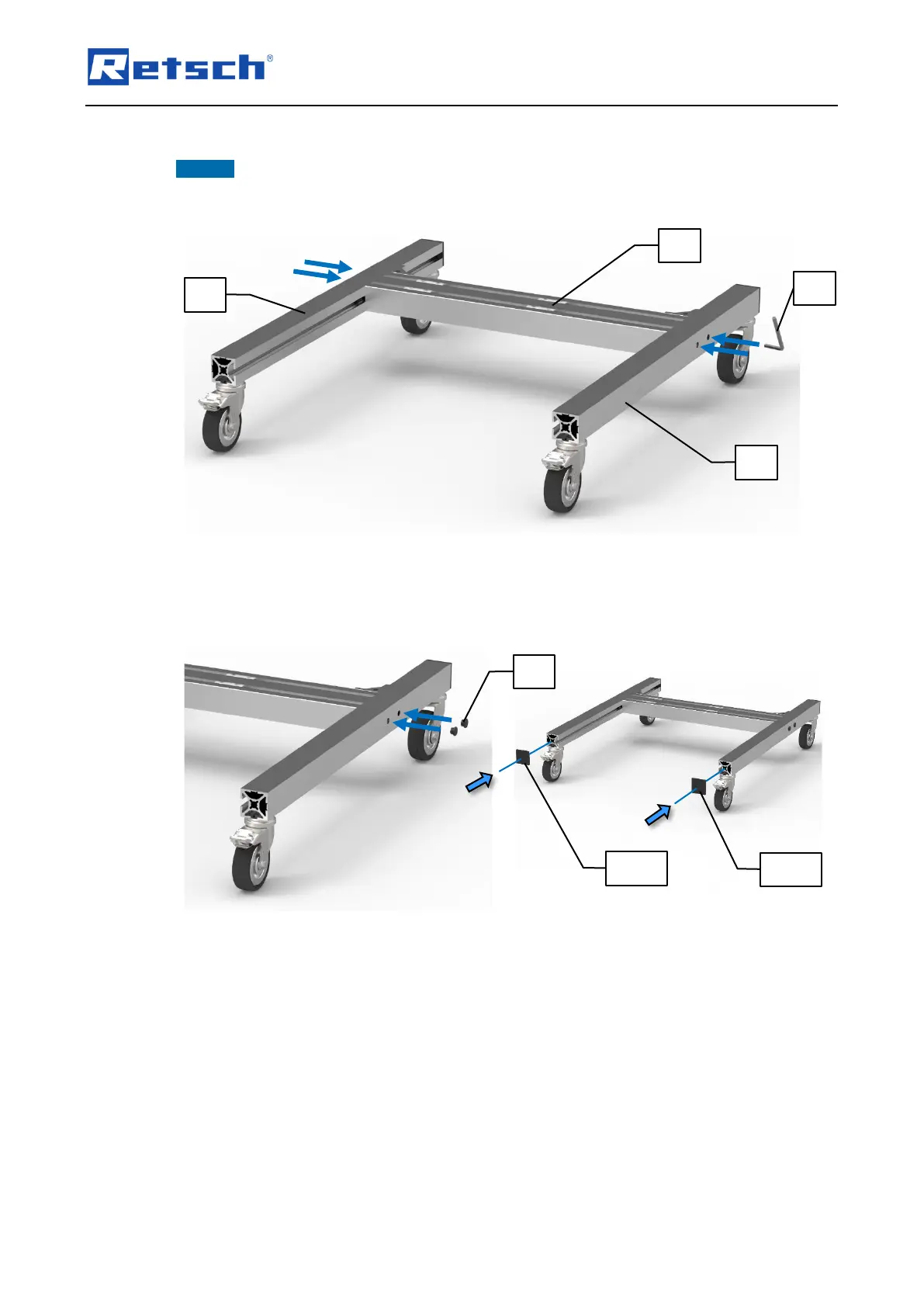

Fig. 8: Screwing tight the cross bar
 Tighten again the four hexagon socket head screws (UG2.1) of the cross bar (UG2) firmly
from the side of both roller rails.
Fig. 9: Installing the protective caps and covers
 Place the four supplied black protective caps (SK) on the lateral openings of the two roller
rails.
 Reinstall the two front covers (UG3.1) and (UG4.1) of the left and right roller rail.
IM
UG2
UG3
UG4
SK
UG4.1
UG3.1
