First Commissioning
25

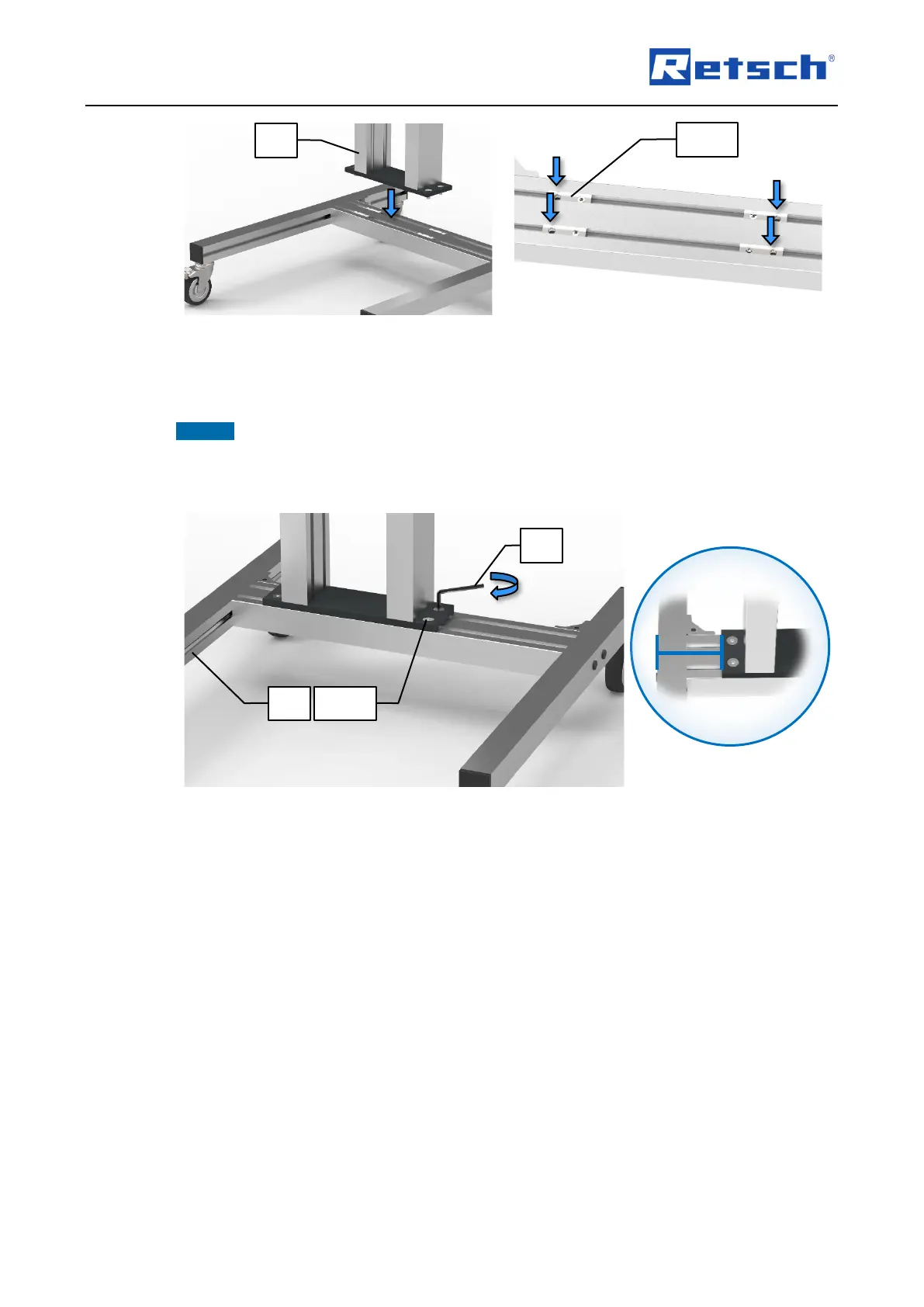

Fig. 10: Positioning the base
 Place the base (UG1) on the cross bar (UG2) and use the four supplied M8x20 hexagon
socket countersunk head screws (UG1.1) to tighten the base.
NOTICE The base should be positioned in such a way, that the left edge of the base is located
90 mm from the outer edge of the left roller rail (UG3).
 If necessary, adjust the position of the sliding blocks (UG2.2).
Fig. 11: Screwing tight the base
 Place the SK 300 on the base frame.
 Use the four supplied M8x35 hexagon socket head screws (UG1.2), including the lock nuts
and washers, to screw the U-profiles of the SK 300 tight on the base (UG1).
IM
UG3
UG1
UG2.2
UG1.1
90 mm
