Operating the machine

Fig. 7: Main switch

Pos: 7.19 /00005 Ü berschriften/ 1.1 Überschrifte n/1.1 Überschrift en BDA/11 Öffn en und schli eßen des Gerätes @ 1\mod_1 24151054413 3_9.doc @ 8826 @ 2 @ 1

5.7 Opening and closing of the grinding chamber

Pos: 7.20 /00004 Warnhinweis e/V0061 VORSICHT Gefährdung durch rotierend en Rotor (Cycl one Twister Mill ) @ 3\mod _1299673878394 _9.doc @ 241 10 @ @ 1

CAUTION

3.V0061

Bruising and injuries

Danger due to rotating rotor

– The rotation of the rotor can cause injuries. Sample material can be

ejected out.

• Wait until the motor has come to a standstill before opening the lid.

Pos: 7.21 /00004 Warnhinweis e/V0008 VORSICHT Klappe bei m Schließen fest halten (CryoMil l) @ 2\mod _1278054213 505_9.doc @ 205 49 @ @ 1

CAUTION

Crushed or bruised fingers

Falling grinding chamber protective hood

– The protective hood of the grinding chamber can cause crushed or bruised

fingers if it falls down.

• Hold the flap tight when closing.

Pos: 7.22 /00010 Bedienungsa nleitungen Kapitels ammlunge n/Twister Mill ( 2011)/0015 Zyklo n Mill Twister Be dienung/1565 N IR Modul Öff nen und schließen @ 3\mod_ 12845383238 34_9.doc @ 2 3430 @ 2 @ 1

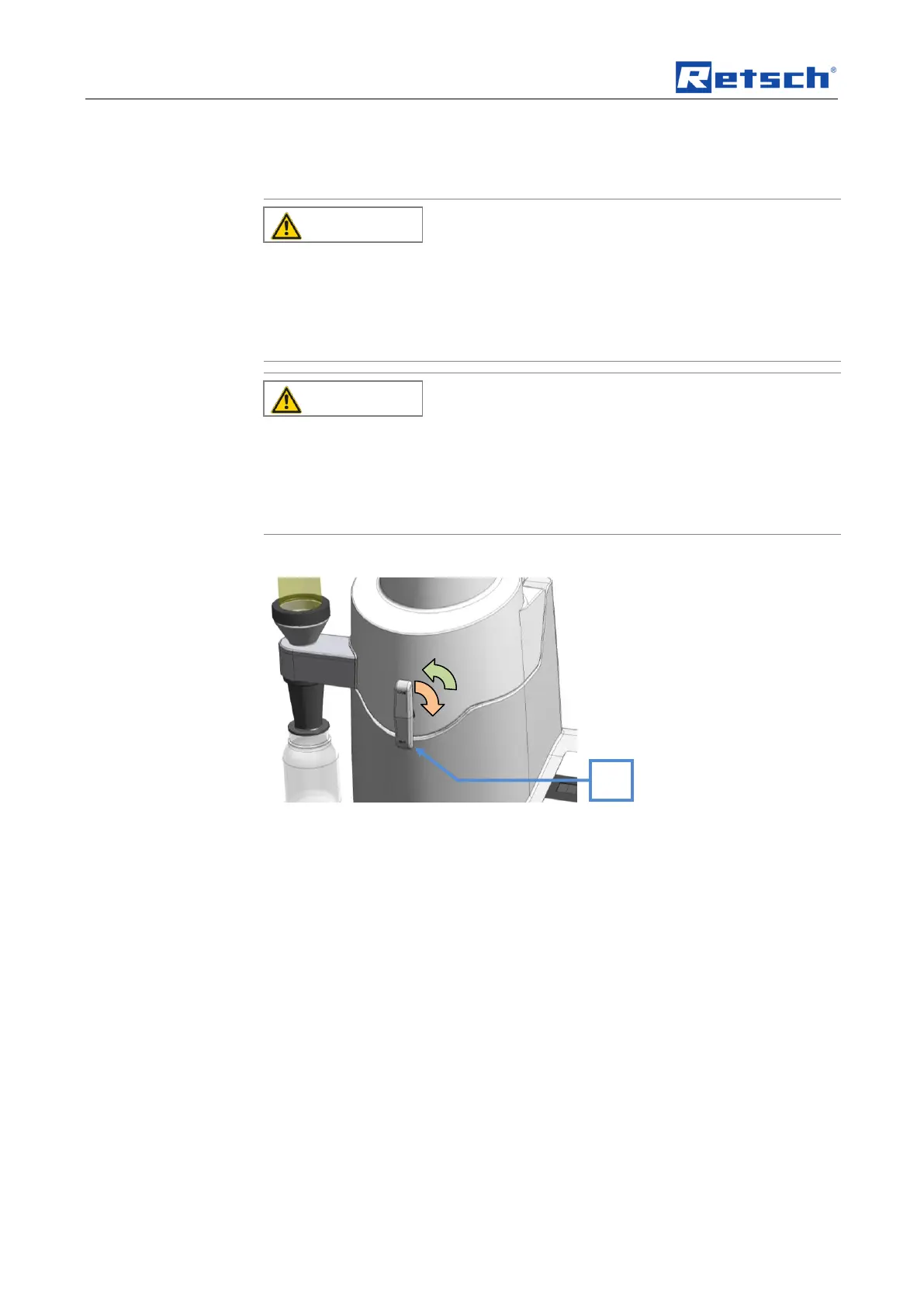

Fig. 8: Opening and closing the grinding chamber

• To lock the grinding chamber, twist the lock of the grinding chamber hood (J)

by one quarter rotation in a clockwise direction.

• To open the grinding chamber, twist the lock of the grinding chamber hood

(J) by one quarter rotation in an anti-clockwise direction.
