Retsch Twister - Removing and inserting the rotor

Operating the machine
26
Pos: 7.38 /00005 Ü berschriften/ 1.1 Überschrift en/1.1 Übersc hriften BDA/11 Ro tor entnehmen und einsetzen @ 3\mod_128 4537943606_ 9.doc @ 2341 3 @ @ 1
5.15 Removing and inserting the rotor
Pos: 7.39 /00004 Warnhinweis e/V0058 VORSICHT Schnittverle tzung sch arfe Kanten an R oto und Sieb (Z yklon Mill T wister) @ 3\mod_ 1288857787413 _9.doc @ 23960 @ @ 1
CAUTION
5.V0058
Danger of injuries caused by cuts
Sharp cutters of the rotor and sharp edged sieve
– The sharp edges of the rotor and sieve may lead to hands being cut.
• Use protective gloves when replacing the rotor or sieve and when
cleaning the grinding chamber.
Pos: 7.40 /00004 Warnhinweis e/V0054 VORSICHT Quetschunge n und Prellung en Beweglic he Teile Rotor Beh älter (SM300, SM 200, SM1 00) @ 3\m od_128274327137 9_9.doc @ 228 59 @ @ 1
CAUTION
6.V0054
Contusions and bruising
Moving parts – receptacle and rotor
– The receptacle and rotor may fall down after removal and cause injury.
• Be careful and put the parts down safely.
• Do not place any objects on the device.
Pos: 7.41 /00010 Bedienungsa nleitungen Kapitels ammlungen/T wister Mill (2011) /0015 Zyklon Mill Twister Bedi enung/1505 NIR M odul R otor entnehm en und einsetzen @ 3\mod_128 4365243611_9. doc @ 23196 @ @ 1

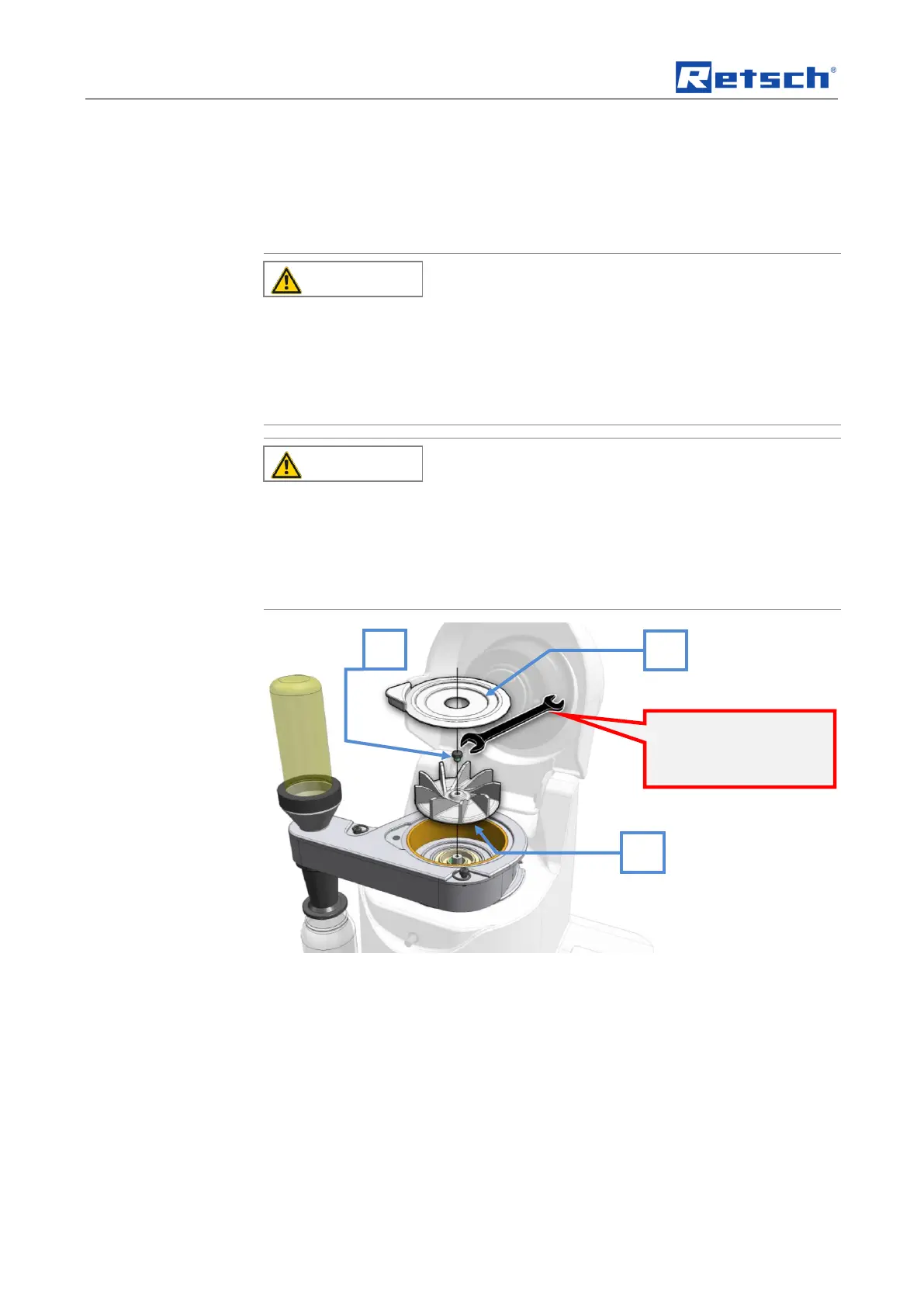

Fig. 18: Replacing the rotor
• Remove the grinding chamber cover (L).
• Unscrew the rotor screw (S).
• Remove the rotor (R).
L
S
R
NOTICE
Tighten to approx. 2Nm
- 3Nm (hand tight).
