5.14 Cyclone assembly
Pos: 7.37 /00010 Bedienungsa nleitungen Ka pitelsammlungen/T wister Mill (2011) /0015 Zyklon Mill Twister Bedi enung/1525 N IR Modul Zyklon M ontage @ 3\mod_128 4536118263_ 9.doc @ 23332 @ 33 @ 1

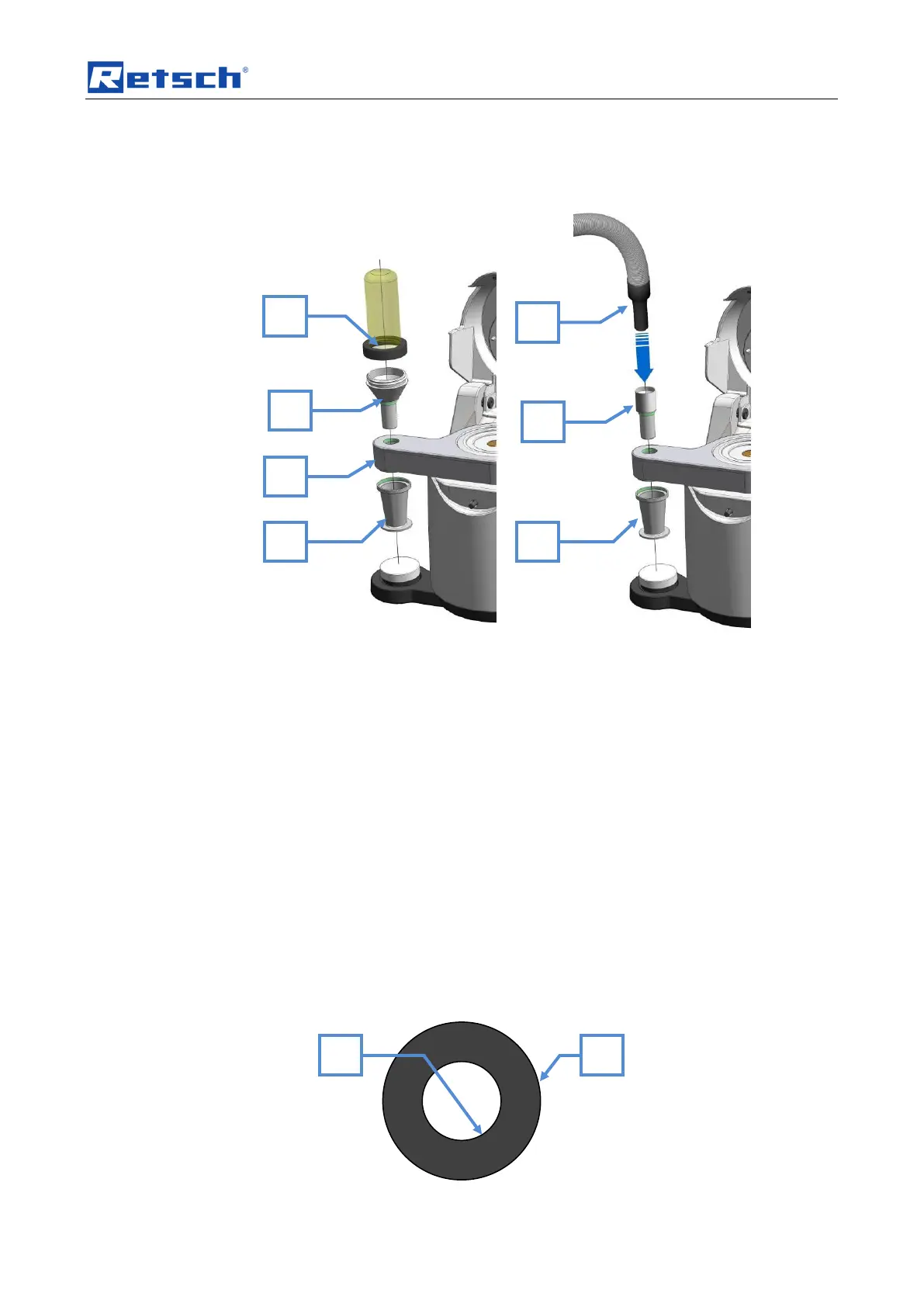

Fig. 17: Cyclone assembly with filter bag / extraction
5.14.1 Cyclone assembly with filter bag
• Screw the hopper (E) into the cyclone cassette (C) from below.
• Screw the immersion tube (B) into the cyclone cassette (C) from above.
• Screw the filter bag (A) onto the hopper (B).
5.14.2 Cyclone assembly with extraction
• Screw the hopper (E) into the cyclone cassette (C) from below.
• Place the immersion tube (AS) into the cyclone cassette (C) from above.
• Insert the extraction device (SA) in the immersion tube (AS).
Inner diameter of the immersion tube (AS): 31.2mm [di]
Outer diameter of the immersion tube (AS): 36mm [Da]
A
B
E
C
AS
SA
E
Da
di
