5.17 Dismantle the cyclone cassette

Pos: 7.45 /00010 Bedienungsa nleitungen Kapitels ammlungen/T wister Mill (2011) /0015 Zyklon Mill Twister Bedi enung/1590 N IR Modul Kas ette entferne n @ 3\mod_1284 538325818_9. doc @ 23457 @ @ 1

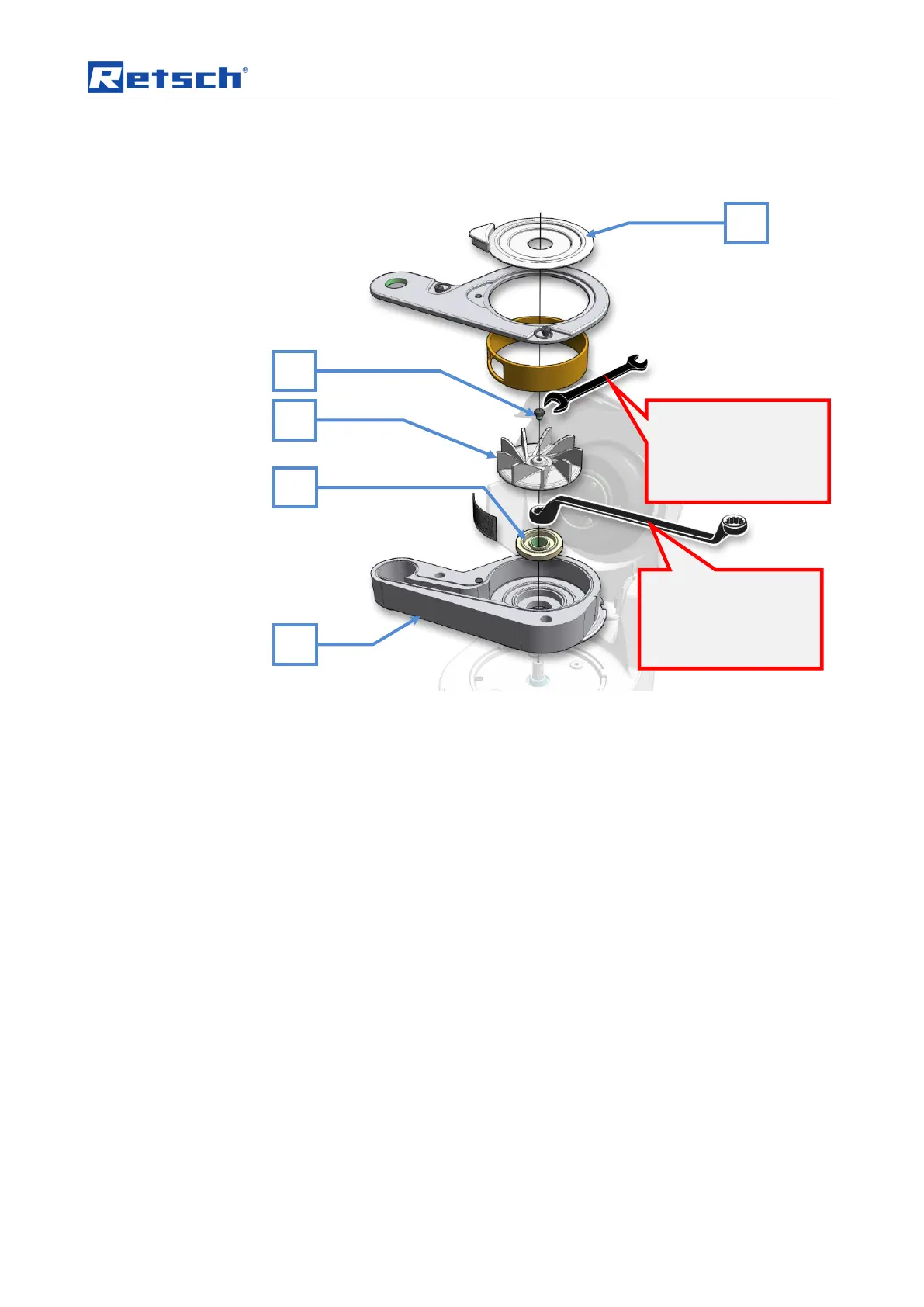

Fig. 22: Disassembling the cyclone cassette

 Remove the grinding chamber cover (L).

 Unscrew the rotor screw (S).

 Remove the rotor (R).

 Loosen the shim (T) using the double end ring spanner supplied.

 When assembling the cyclone cassette, tighten the shim (T)

hand tight (5Nm-7Nm).

NOTICE

Tighten to approx.

5Nm - 7Nm (hand

tight).

NOTICE
