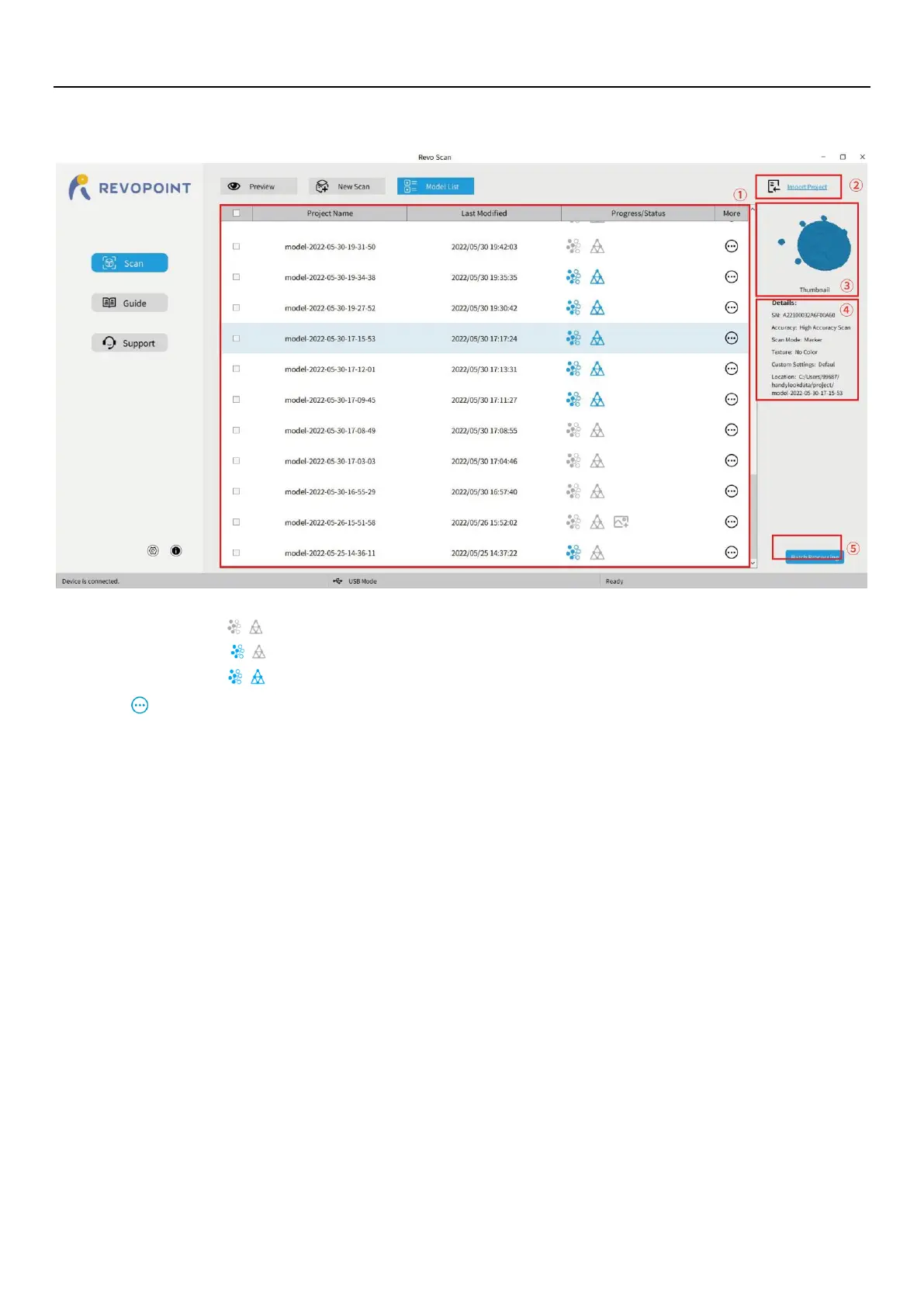

4. Model List
①
Model Viewing Area:
Lists all models scanned, creation timestamps and status.
The icon sequence means that the model hasn’t been fused and meshed.
The icon sequence means that the model has been scanned and its point cloud has been fused.
The icon sequence means that the model has been scanned, fused and meshed.
The icon allows users to open, rename, delete and export the model.
②
Import Project:
Import a 3D model into the model list.
③
Thumbnail preview:
Select a model in the
①
Model Viewing Area and its thumbnail displays in this area.
④
Details:
Display the model’s scan information.
⑤
Batch Processing:
Select more than one model and process (fuse, mesh and texture) them in one go.
Revo Scan - Workflow
Double Click to open Revo Scan---> Confirm "Device is connected" (displays after several seconds) ---> Click New Scan to
select
Accuracy
,
Scan Mode
and
Texture
---> Confirm distance to be "
Excellent
" ---> Adjust the brightness in RGB
camera and Depth Camera ---> Start/Pause Scanning ---> Stop to Complete/Restart Scanning ---> Fuse Point Cloud --->
Mesh ---> Texture (only available for
Color
scans) ---> Export the 3D model
