10/40 Bosch Rexroth AG A4VG Series 40 | RE 92004-01-S031/08.2015
Product description
3 Product description
This chapter provides a general overview of the functionality of the variable pump.
Familiarize yourself with the contents of this chapter before you begin working on
a variable pump.
3.1 Name plate
The variable pump can be identified by means of the name plate:
TYP:
MNR:
SN:
FD: Rotation:
D-89275 Elchingen
Made in Germany
A4VG110EP2D0000/40MRND6T21F0000AS00-0
R90XXXXXXX SC: X
12345678
Rexroth
07W28
n = XXXX min
-1
P = XXX kW m: XXX kg
7202
1
2
3
4
5
6
7
8
9
10
11
12
13

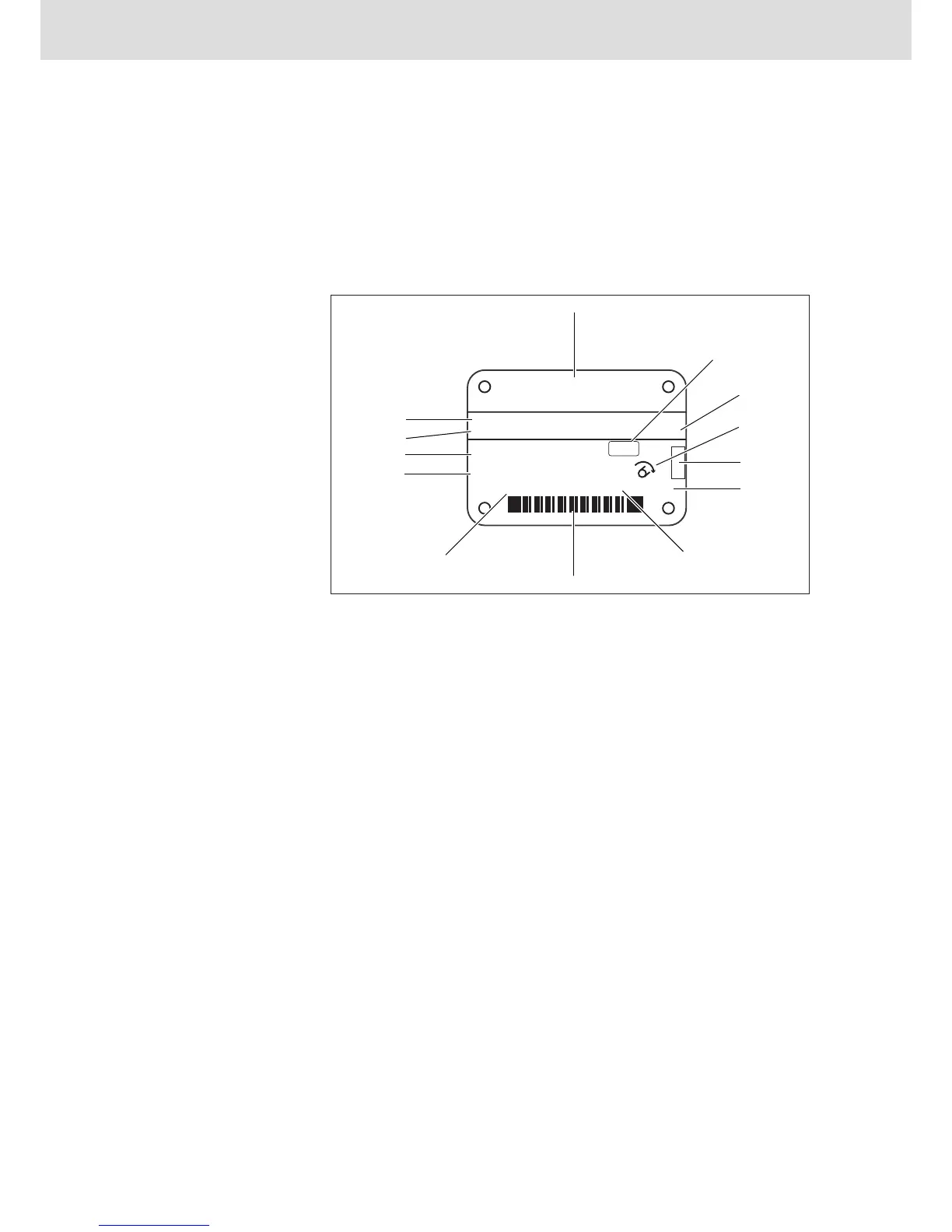

Fig. 1: Name plate
The name plate contains the following information:
1 Manufacturer
2 Internal plant designation
3 Sample category (optional)
4 Direction of rotation (viewed on
drive shaft) – here: clockwise
5 Specified area for test stamp
6 Weight (optional)
7 Power (optional)
8 Bar code
9 Rotational speed (optional)
10 Production date
11 Serial number
12 Material number of the
axial piston unit
13 Ordering code
Ensure that the type and nominal size of the variable pump to be repaired
correspond to this repair manual.
