RE 92004-01-S031/08.2015 | A4VG Series 40 Bosch Rexroth AG 35/40
Settings
10.1 Low pressure
This section describes how you check low pressure.
Risk of injury!
The following works on the variable pump are dangerous.
f Pay close attention to the safety instructions (see Chapter "2 General safety
instructions").
f While working with hazardous materials (for example, hydraulic fluids), always
wear safety gloves and safety glasses.
@
(

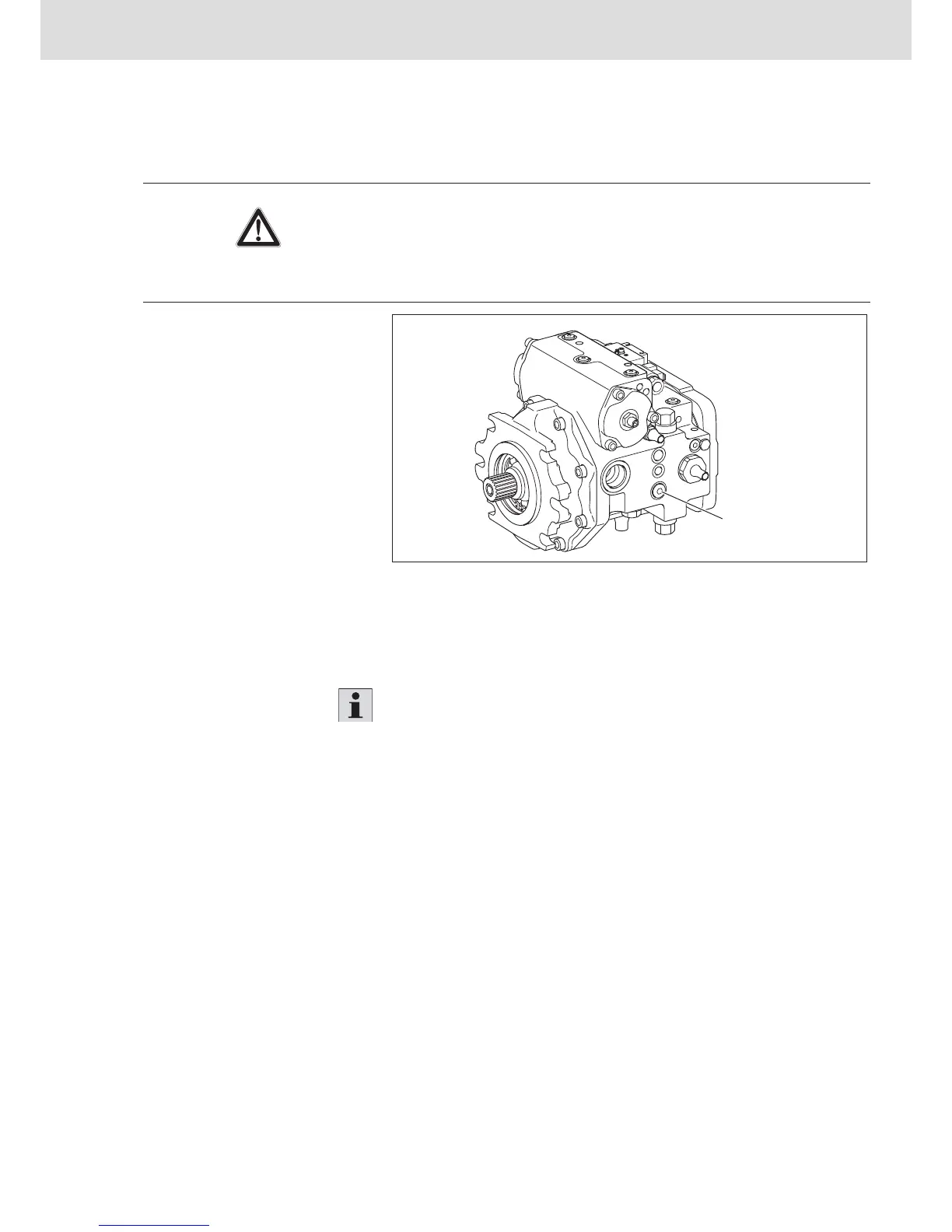

Fig. 21: Low pressure testing
To check low pressure:
1. Attach a pressure gauge to port G.
2. Check the low pressure at operating temperature (oil temperature 50 - 60 °C).
The exact settings are to be found in the data sheet in your order
documentation or in your specification.
WARNING!
Procedure
