Settings
10.2 High pressure
This section describes how you check high pressure.
Risk of injury!
The following works on the variable pump are dangerous.
f Pay close attention to the safety instructions (See Chapter "2 General safety
instructions").
f While working with hazardous materials (for example, hydraulic fluids), always
wear safety gloves and safety glasses.
.)

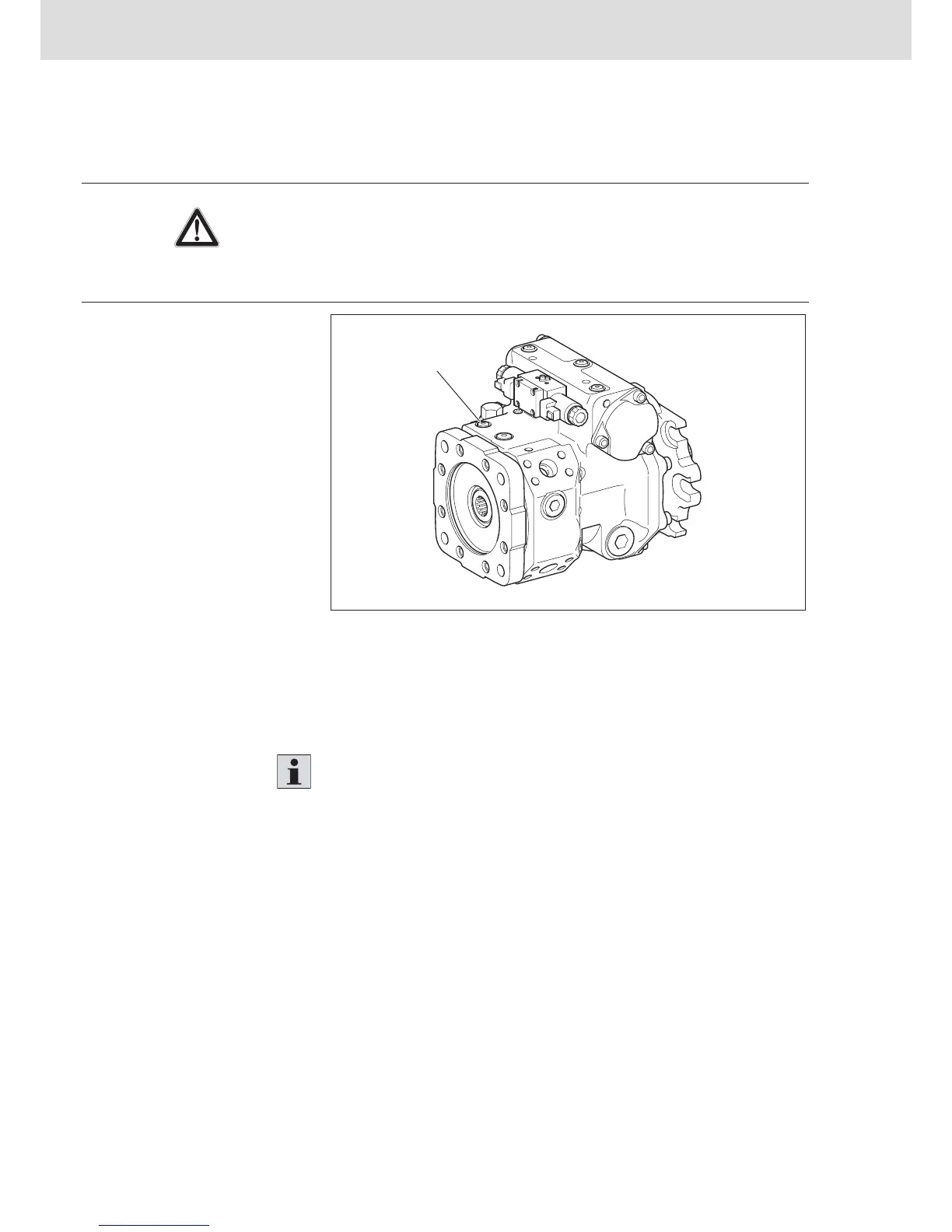

Fig. 22: High pressure testing
To check high pressure:
1. Attach a pressure gauge to port M
H
.
2. Check high pressure at operating temperature (Oil temperature 50 - 60 °C,
forward and reverse vehicular motion).
The exact settings are to be found in the data sheet in your order
documentation or in your specification.
WARNING!
Procedure
