RE 92004-01-S031/08.2015 | A4VG Series 40 Bosch Rexroth AG 13/40
Controller
4 Controller
The material numbers for the special tools are to be found in the Special Tool
Catalog RE 92004-01-S081.
If not explicitly specified, permissible tightening torques for the bolted
connections are to be found in Chapter "10 Settings".
4.1 Removing controller
This section describes how you remove the controller from the pump.
There is a wide variety of controllers.
Please note that the removal of only one such controller is shown here
exemplarily.
@@

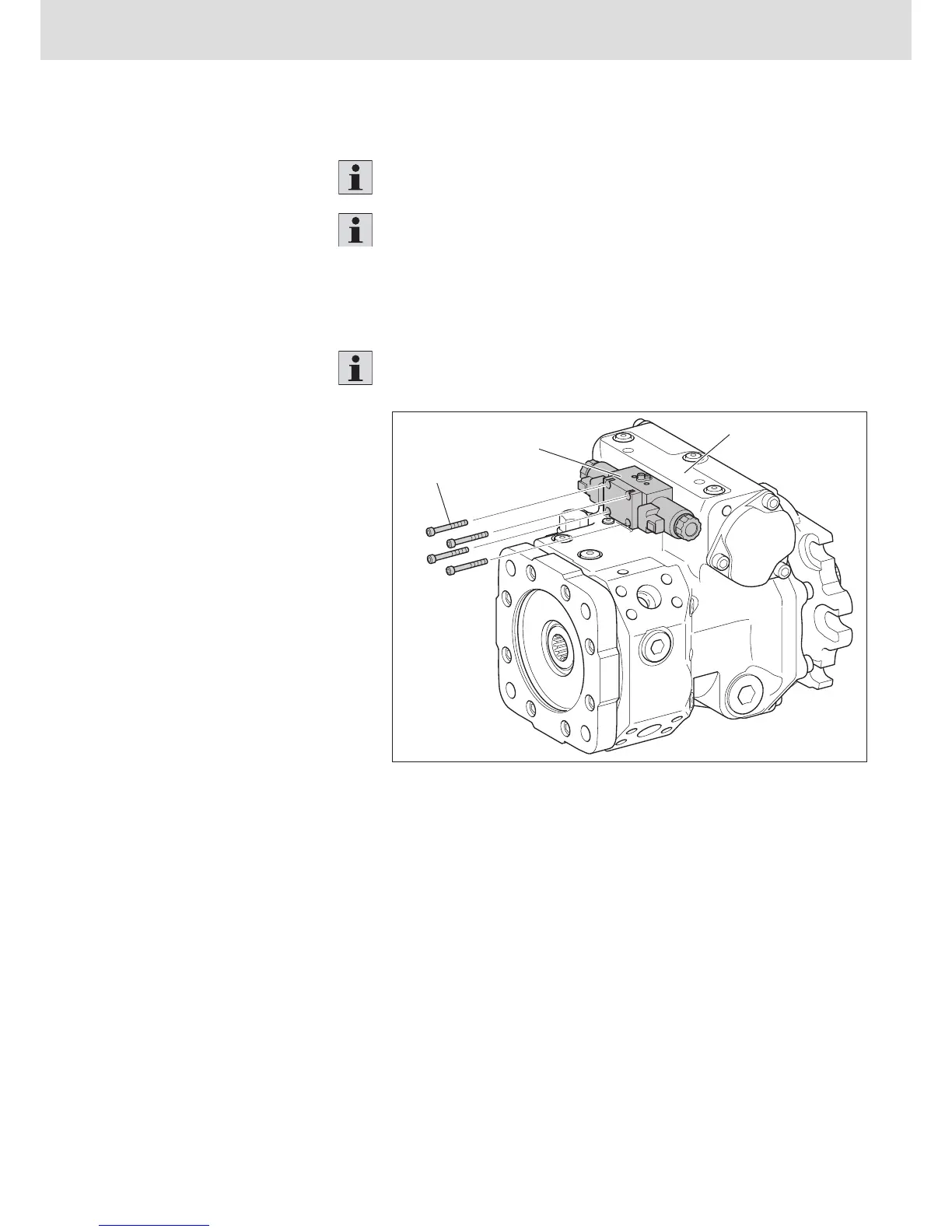

Fig. 3: Controller
1 Fixing screws
2 Controller
3 Pump case
To remove the controller:
1. Loosen and remove the fixing screws (1) of the controller (2).
2. Detach the controller (2) from the pump casing (3).
