30/40 Bosch Rexroth AG A4VG Series 40 | RE 92004-01-S031/08.2015
Filter
8 Filter
The material numbers for the special tools are to be found in the Special Tool
Catalog RE 92004-01-S081.
If not explicitly specified, permissible tightening torques for the bolted
connections are to be found in Chapter "10 Settings".
8.1 Mountable filter
This section describes how you exchange the filter cartridge and seal the filter housing.
@@

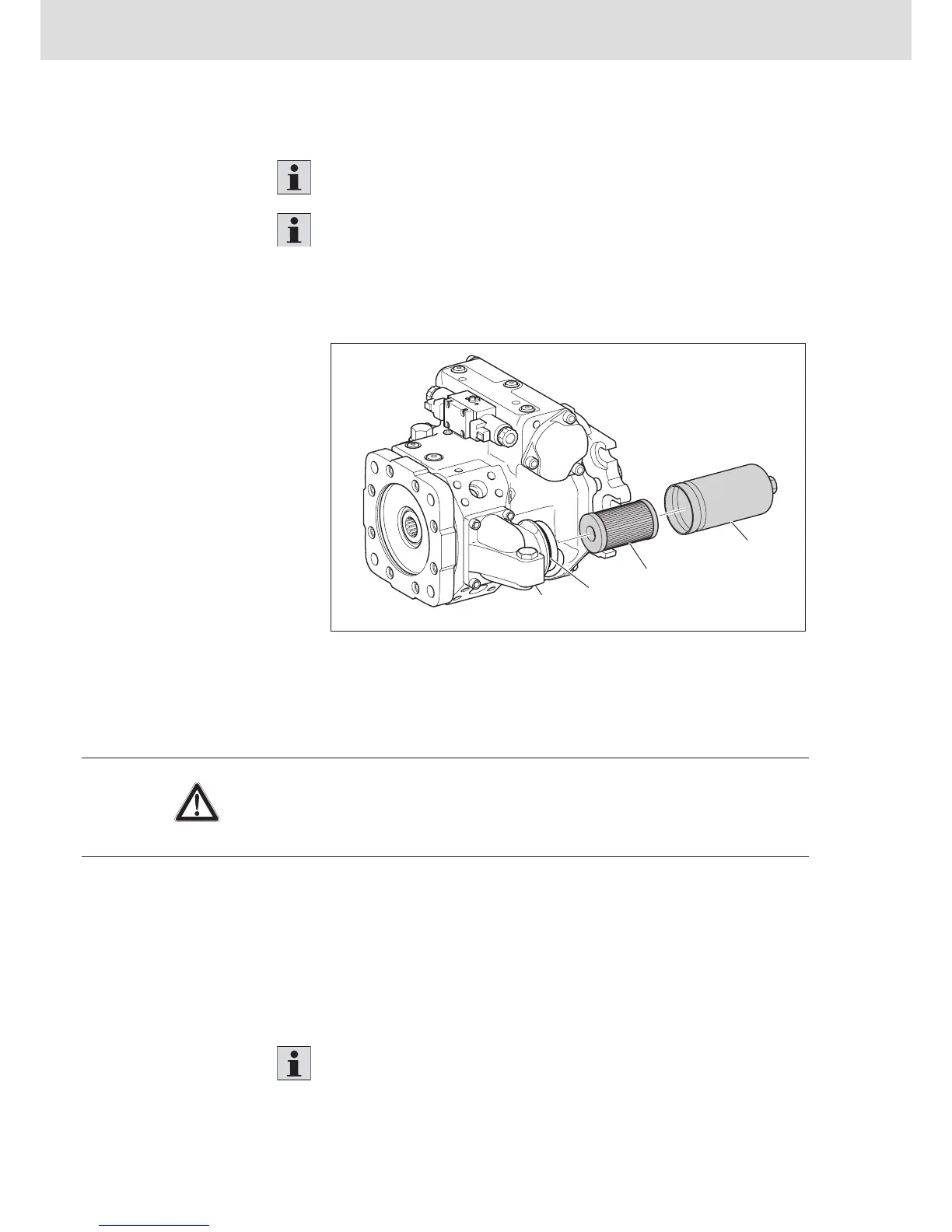

Fig. 18: Mountable filter
1 Filter head
2 O-ring
3 Filter cartridge
4 Filter housing
Risk of poisoning and injury!
Contact with hydraulic fluid damages your health (e.g. eye injuries, skin and tissue
damage, poisoning through inhalation).
f While working with hazardous materials (for example, hydraulic fluids), always
wear safety gloves and safety glasses.
To replace the filter cartridge and the filter case seal:
1. Loosen and remove the filter housing (4) from the filter head (1).
2. Withdraw the used filter cartridge (3) from the filter housing (4).
3. Check the filter head and filter housing for damage, wear and contaminants.
4. Insert the new filter cartridge (3) into the filter housing (4).
5. Check the O-ring and O-ring groove for damage, wear or contaminants.
6. Exchange the O-Ring (2) for a new one.
Lightly grease the O-ring.
DANGER!
Procedure
