7.6 Exchange angle position sensor
This section explains how to replace the angle position sensor.




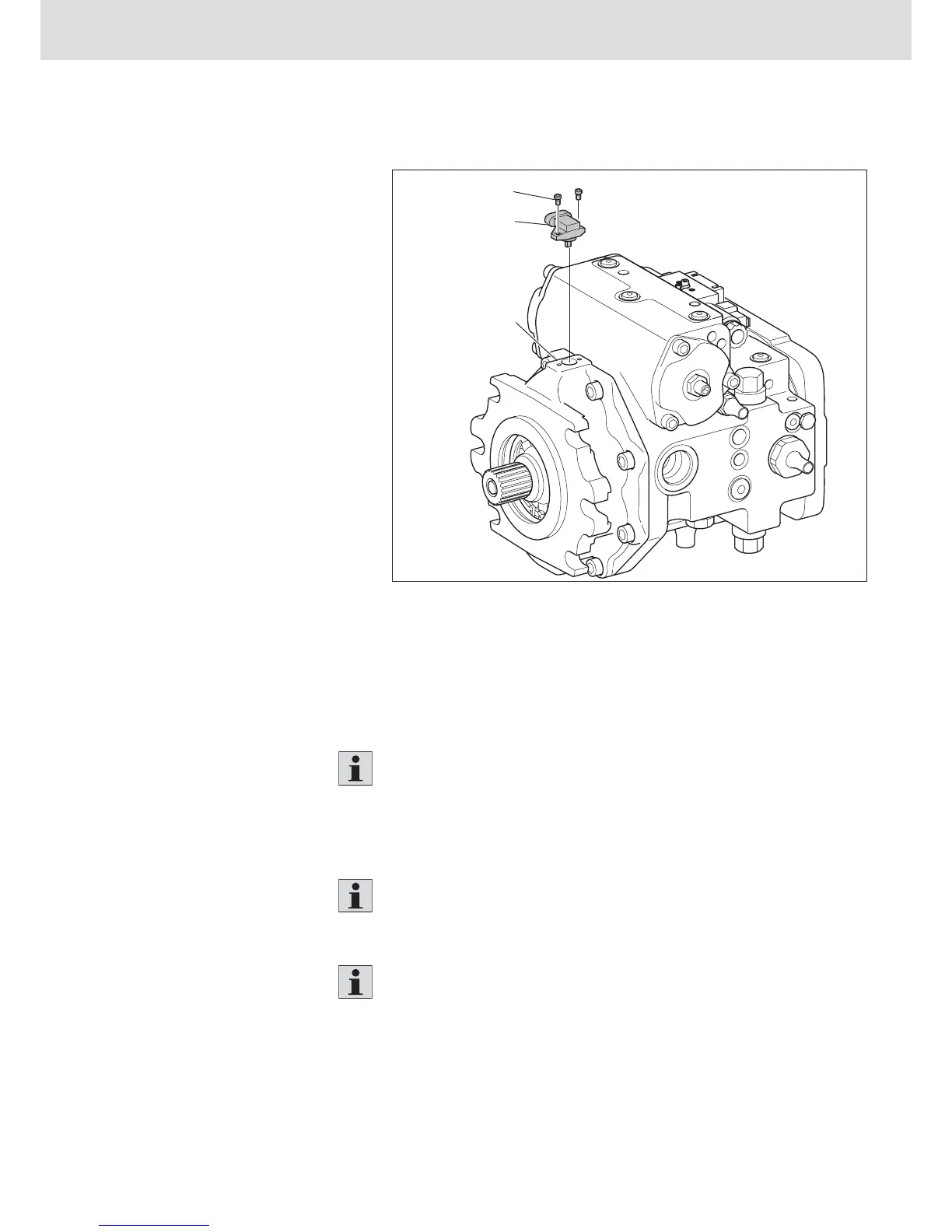

Fig. 17: Angle position sensor
1 Fixing screws
2 Angle position sensor
3 Bearing flange
To replace the angle position sensor:
1. Loosen and remove the fixing screws (1) of the angle position sensor (2).
Pay close attention to the installation position of the angle position sensor.
2. Detach the angle position sensor (2).
3. Check the angle position sensor and the sealing surface for damage, wear
and contaminants.
4. Replace the angle position sensor (2).
Pay close attention to the installation position of the angle position sensor.
5. Place the angle position sensor (2) on the bearing flange (3).
6. Fasten the angle position sensor (2) using the fixing screws (1).
Tighten the fixing screws according to the specified tightening torque - see
Chapter "10 Settings".
Procedure
