RE 92004-01-S031/08.2015 | A4VG Series 40 Bosch Rexroth AG 15/40
Controller
4.3 Installing the controller
This section describes how you install the controller.
There is a wide variety of controllers.
Please note that the installation of only one such controller is shown here
exemplarily.
@@

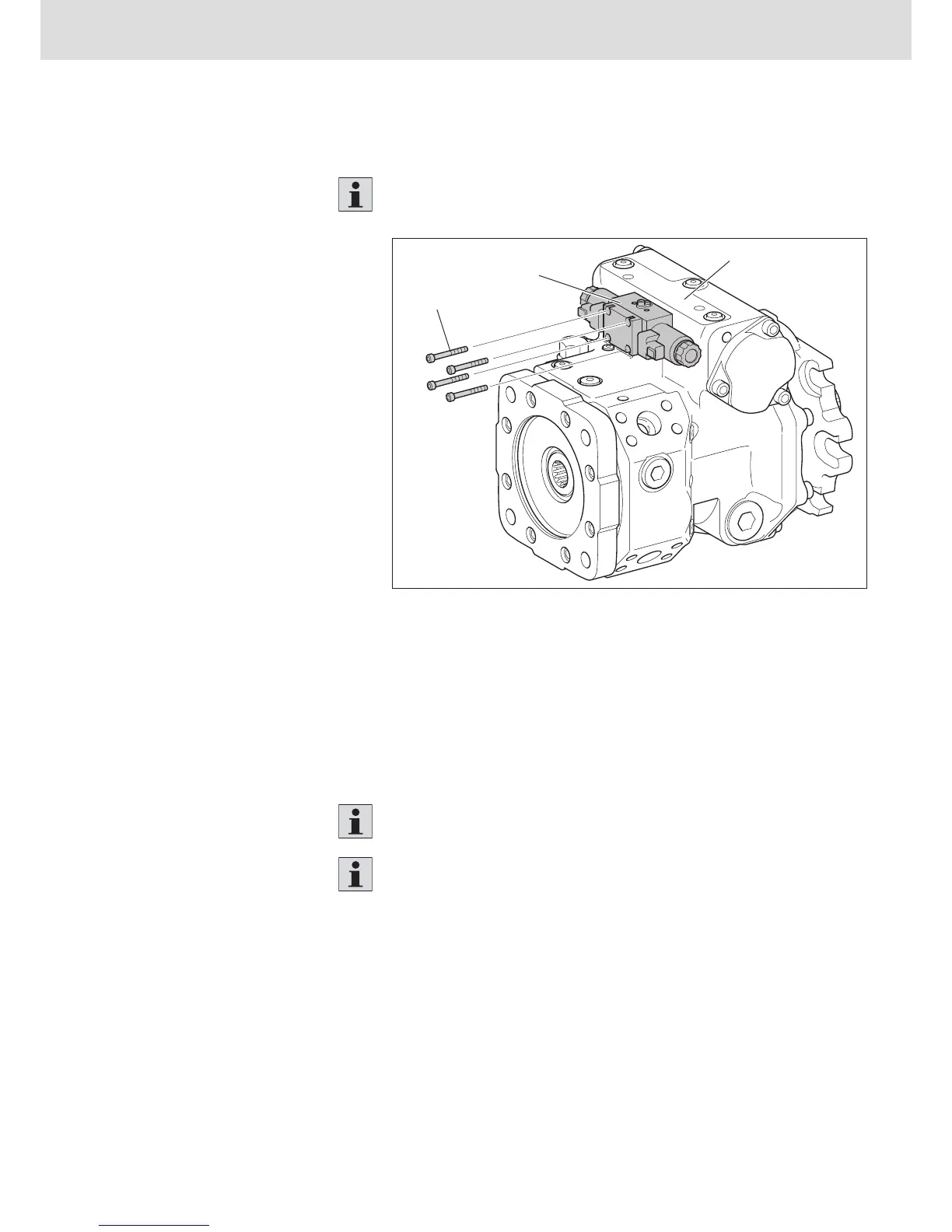

Fig. 5: Controller
1 Fixing screws
2 Controller
3 Pump case
To install the new or newly-sealed controller:
1. Using two fixing screws (1) center the seals, cover and the controller (2) on
the pump case (3).
2. Screw in the two remaining fixing screws (1).
Tighten the fixing screws crosswise according to the specified tightening
torque - see Chapter "10 Settings".
After installation of the controller, the hydraulic neutral position must be set
anew.
