15 Advanced Joystick Set-up
15.1 Power Float
If equipped, the Power Float mode can also be edited.
Resetting - Re-engages float when the joystick is returned to neutral.
Non-resetting - The button must be pushed to re-enable the float after the stick is
deflected.
Check Marks:
PFloat2– Option to turn ON/OFF 2
nd
Power float
DumpLmt On – Option to turn ON/OFF Dump Limit Function
Msg Flash – Option to flash dump limit message
DumpLmt Msg Rst – Only show message on rising edge
15.2 Function Labels

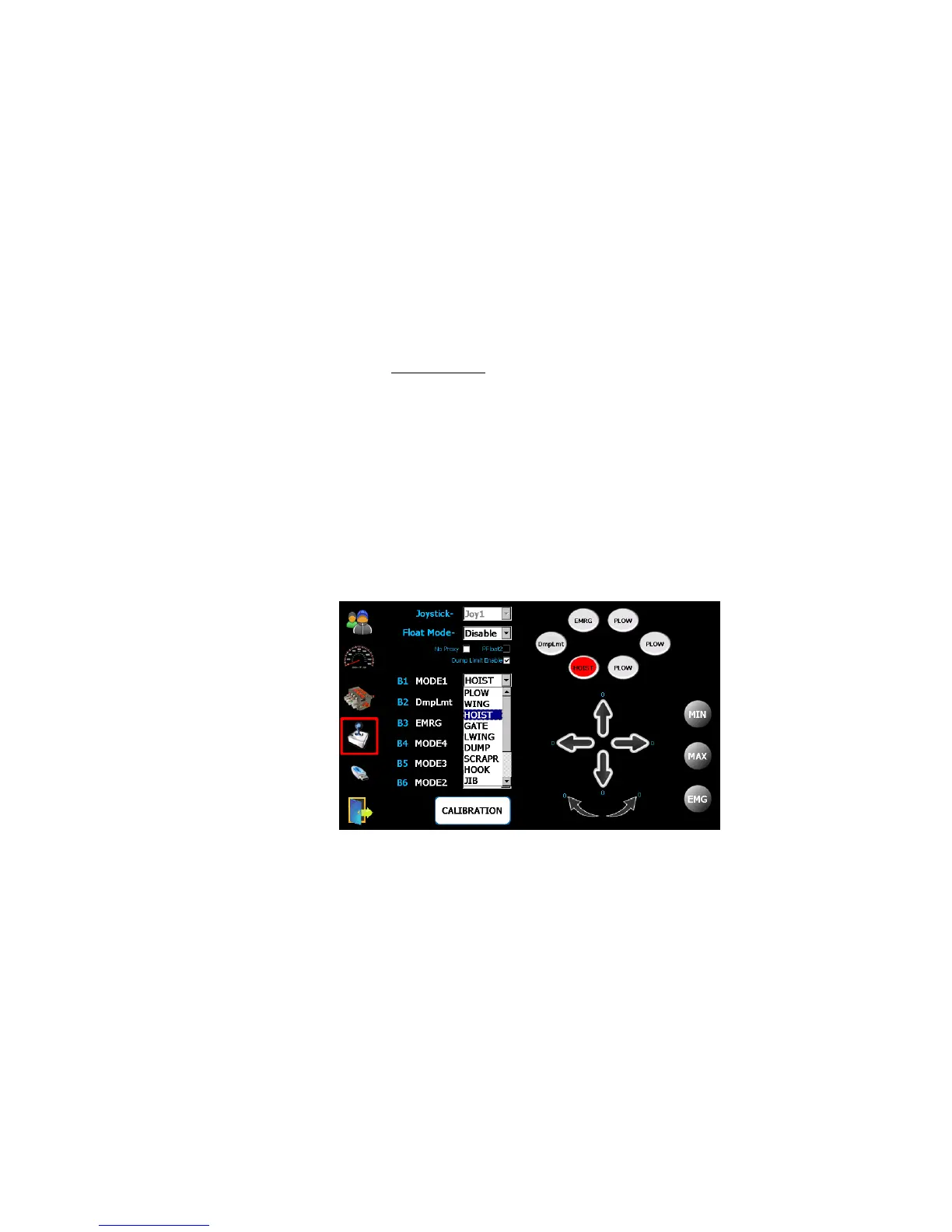

All the joystick button names and function will be preset by the factory. The joystick
button names can be edited via the pull-down selection menus.
B1 is at the bottom left location and the buttons count up clockwise.
Note: Editing the names of the functions does not re-allocate the outputs on the
valve cable. They are fixed and defined in the valve layout for the specific system.
