Rexroth IndraDrive C Mechanical Data 5-3
DOK-INDRV*-HCS02.1****-PR02-EN-P
HCS02.1E-W0054 and HCS02.1E-W0070
A: minimum mounting clearance (when using accessories HAS02.1);
plus space for cables
B: minimum mounting clearance; plus space for cables

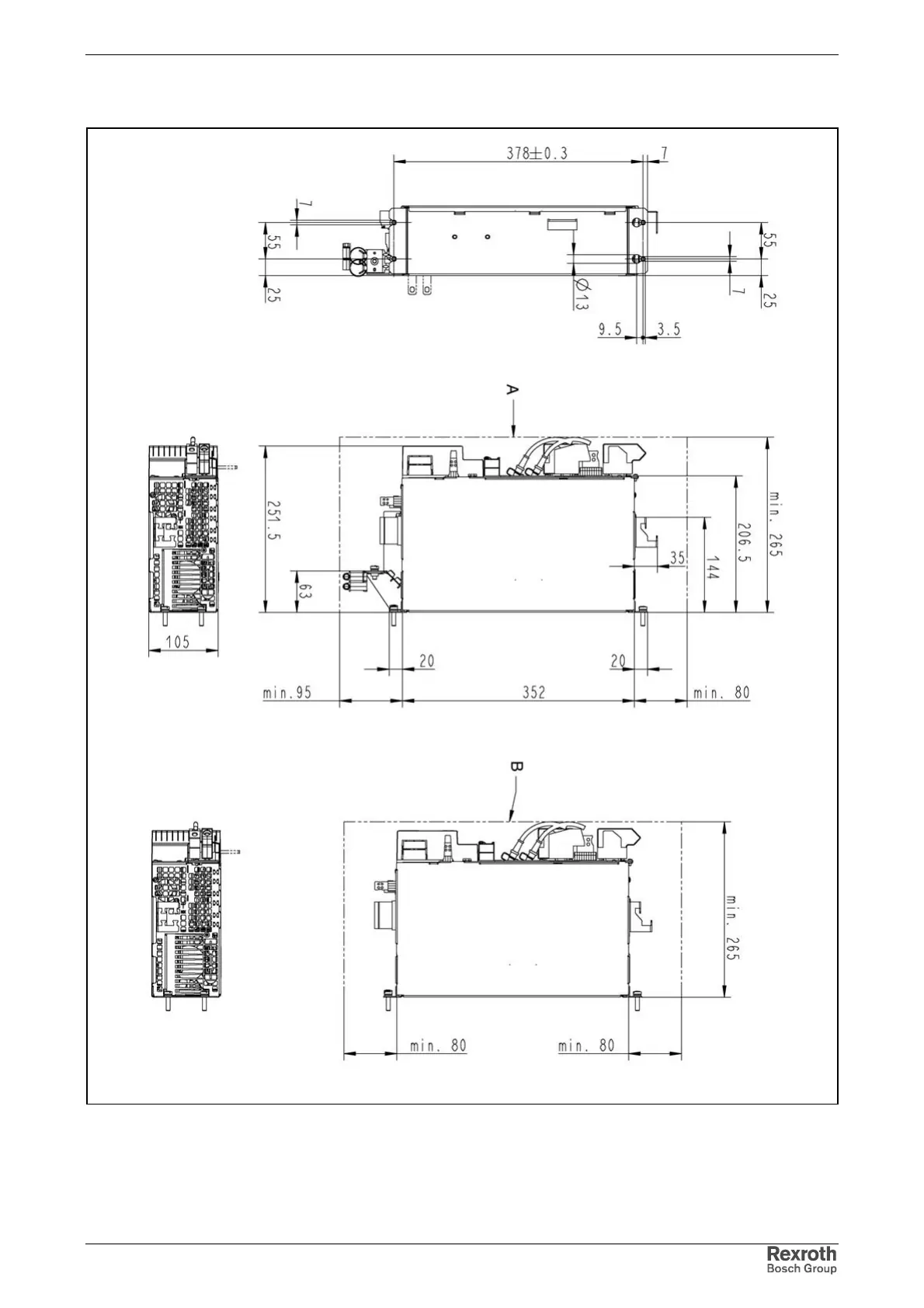

Fig. 5-3: Dimensional drawing HCS02.1E-W0054 and HCS02.1E-W0070
