REXROTH HCS02.1E-W0028-NNNN User Manual

Rexroth IndraDrive C Electrical Data 6-7
DOK-INDRV*-HCS02.1****-PR02-EN-P
Mains Connection Power and DC Bus Continuous Power

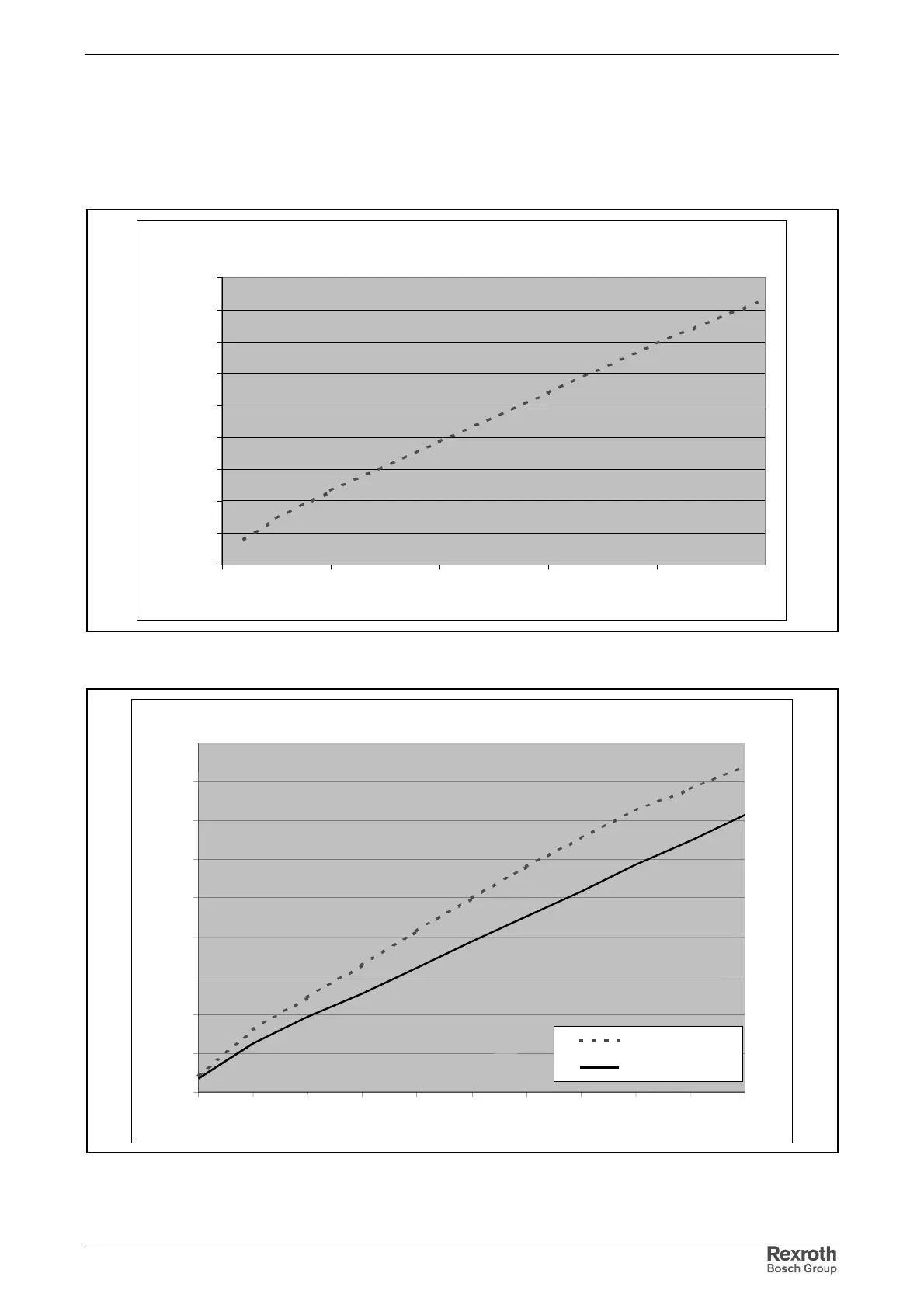

The diagrams below illustrate the interrelation between mains connection
power (S
LN
) and DC bus continuous power (P
DCcont
) with and without the
use of mains chokes.
HCS02.1-E-W0012 @3AC400V
0
0,5
1
1,5
2
2,5
3
3,5
4
4,5
0 0,5 1 1,5 2 2,5
P
DC cont
[kW]
S
LN
[kVA]
Fig. 6-6: HCS02.1E-W0012
HCS02.1-E-W0028 @3AC400V
0
1
2
3
4
5
6
7
8
9
012345
P
DC cont
[kW]
S
LN
[kVA]
without choke
with choke
Fig. 6-7: HCS02.1E-W0028
