6-24 Electrical Data Rexroth IndraDrive C
DOK-INDRV*-HCS02.1****-PR02-EN-P
Connections at HCS02.1E-W0028, -W0054, -W0070
Front
hcs0028_front.fh7
1234
X1 inX1 out
L+
L-
X13
XS1

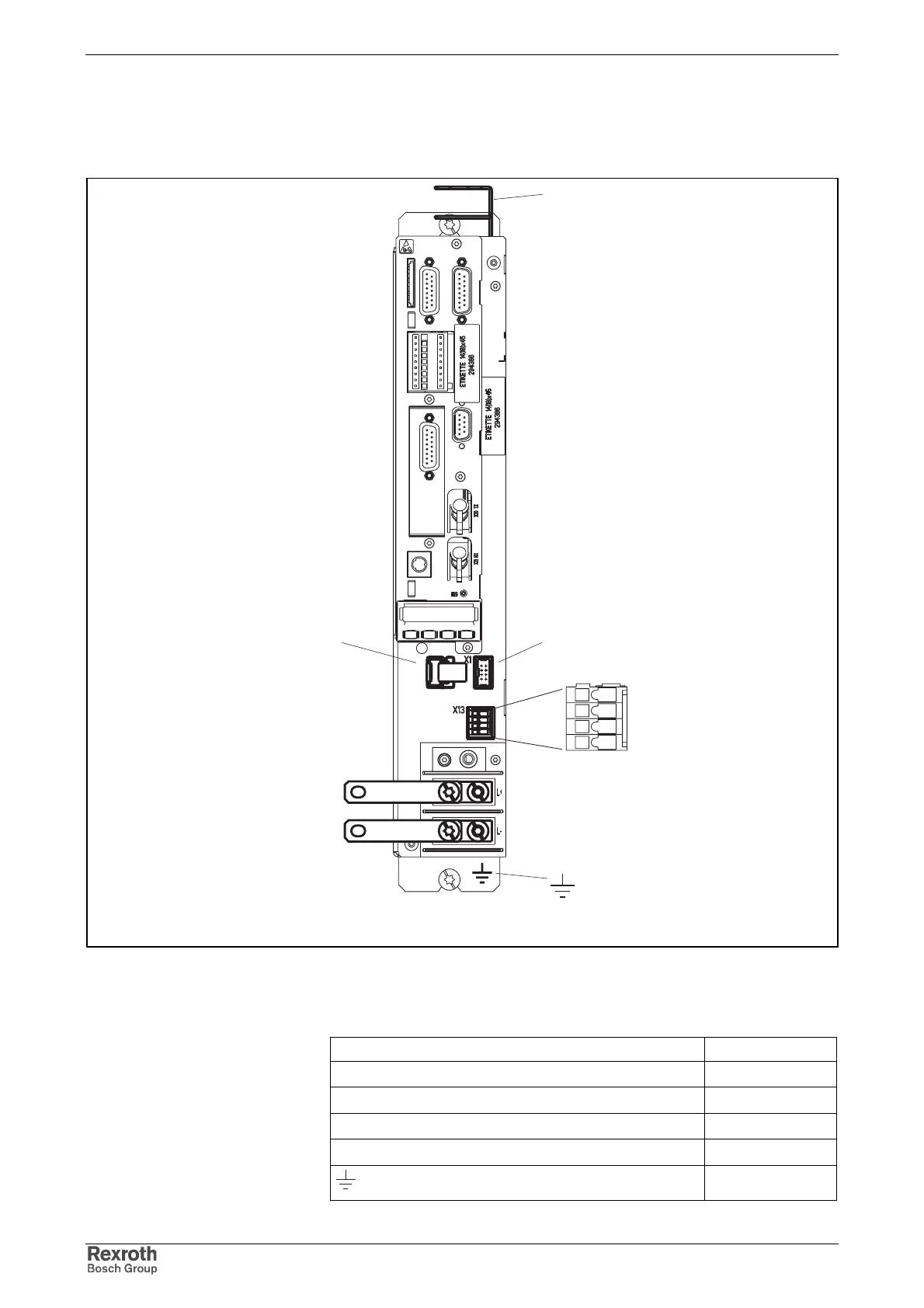

Fig. 6-24: HCS02.1E-W0028, -W0054, -W0070 power section connections
(front)
Description of connections:
Connection Page
X1, Module bus 6-27
X13, Control voltage 6-36
XS1, Shield connection (control wires) 6-41
L+/L-, DC bus 6-39
Ground connection
6-40
