5-8 Mechanical Data Rexroth IndraDrive C
DOK-INDRV*-HCS02.1****-PR02-EN-P
HCS02.1E-W0054
0
10
20
30
40
50
60
70
80
90
0 35 70 105 140 175 210 245 280 315 350
P
BD
[W]
∆ T [K]
∆ T @ d~0mm
∆ T @ d~40mm
∆ T @ d~80mm
∆ T @ d~120mm
P
BD
: average continuous power of braking resistor
d: distance from the top of the device

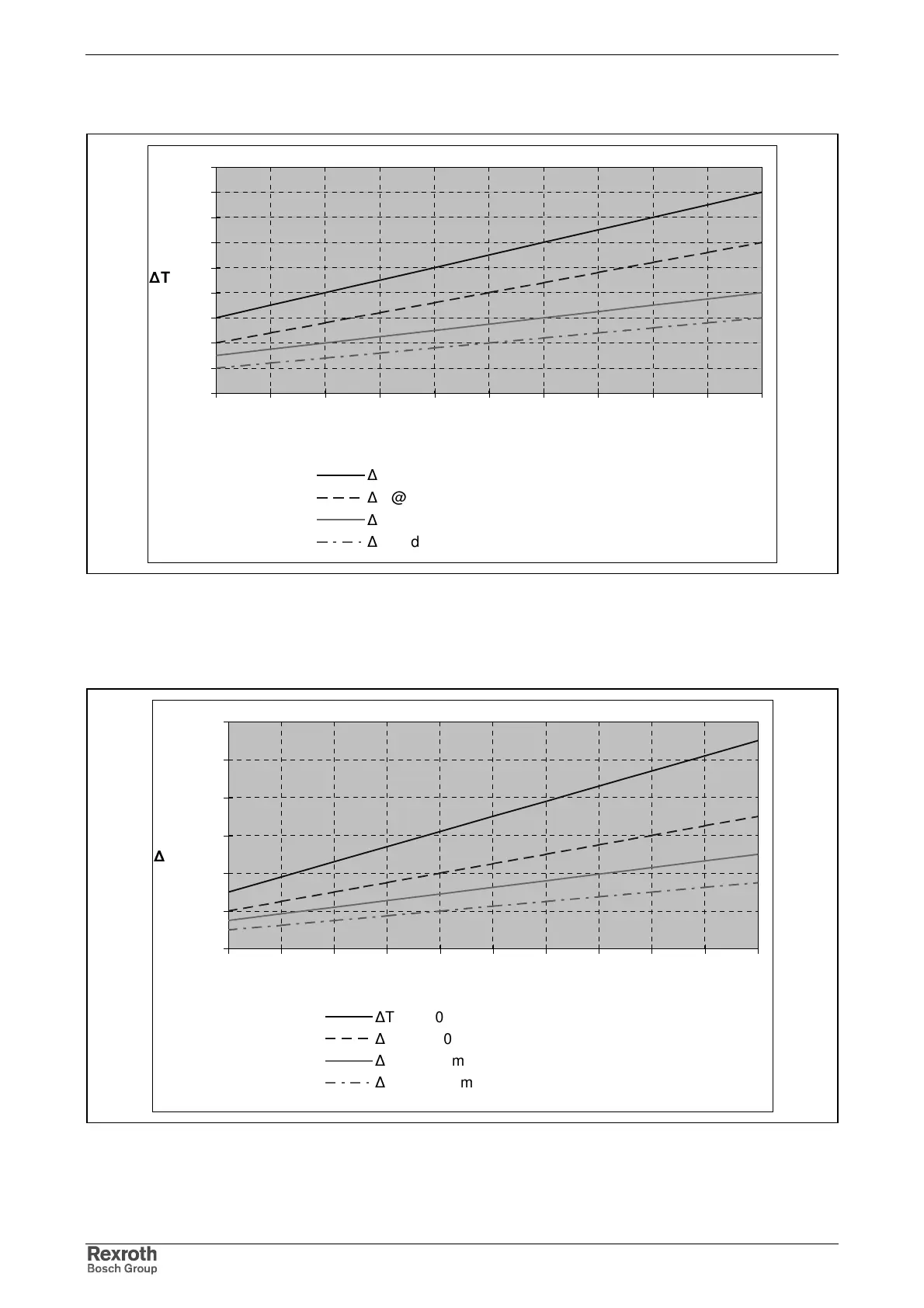

Fig. 5-9: HCS02.1E-W0054
HCS02.1E-W0070
0
20
40
60
80
100
120
0 50 100 150 200 250 300 350 400 450 500
P
BD
[W]
∆ T [K]
∆ T @ d~0mm
∆ T @ d~40mm
∆ T @ d~80mm
∆ T @ d~120mm
P
BD
: average continuous power of braking resistor
d: distance from the top of the device
Fig. 5-10: HCS02.1E-W0070
