The current-depending power dissipation of the power sections illustrated
in the following diagrams is composed of
• the losses of the mains-supply rectifier
• the switching losses of the inverter
HCS02.1E-W0012
y-axis: Power dissipation [W]
x-axis: Current (rms value) [A]

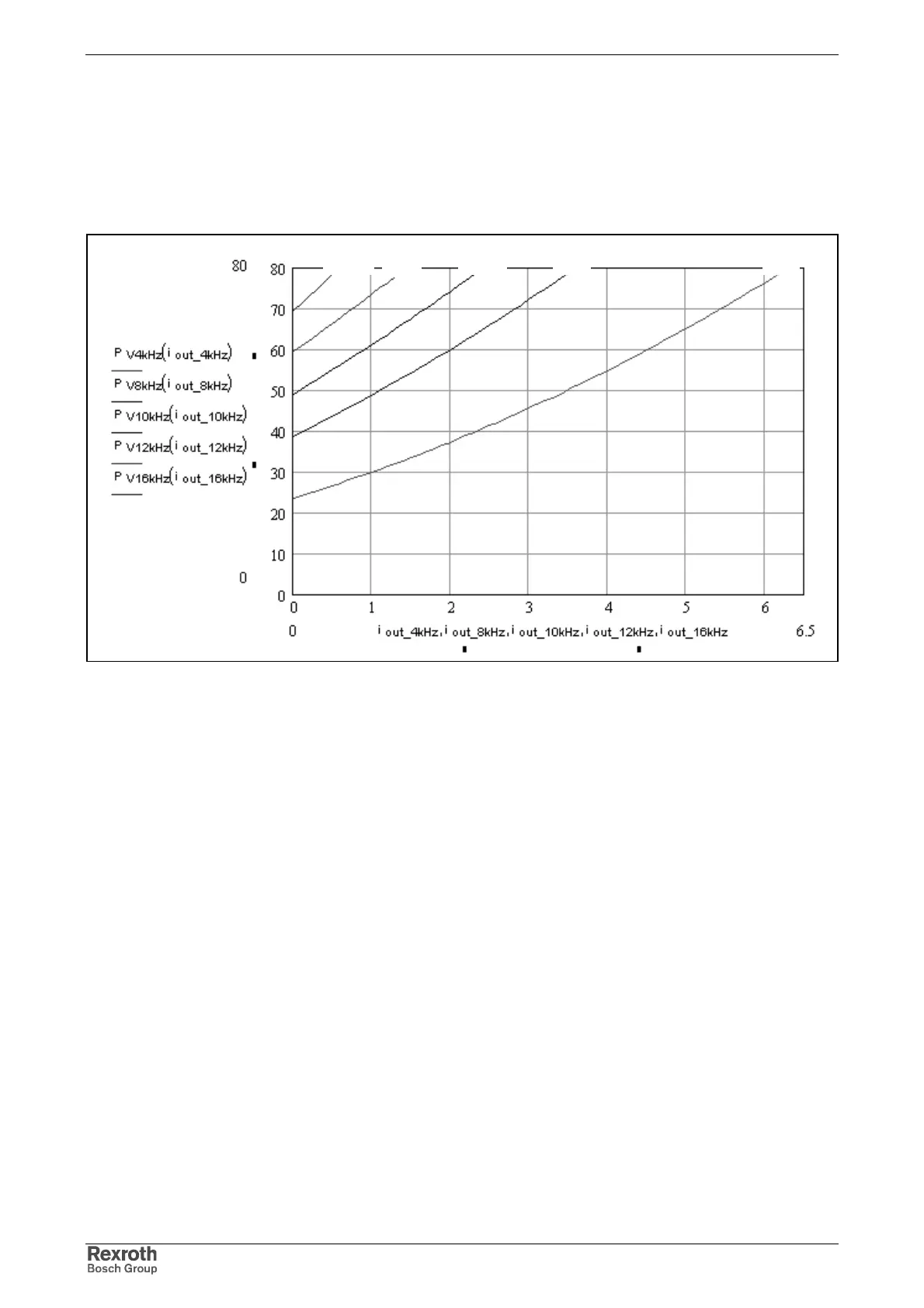

Fig. 6-14: Power dissipation power section HCS02.1E-W0012
16 kHz
12 kHz
8 kHz 4 kHz
10 kHz
