The control voltage supply is routed to the connection X13 from above
(see following figure).
1: lines to control voltage supply

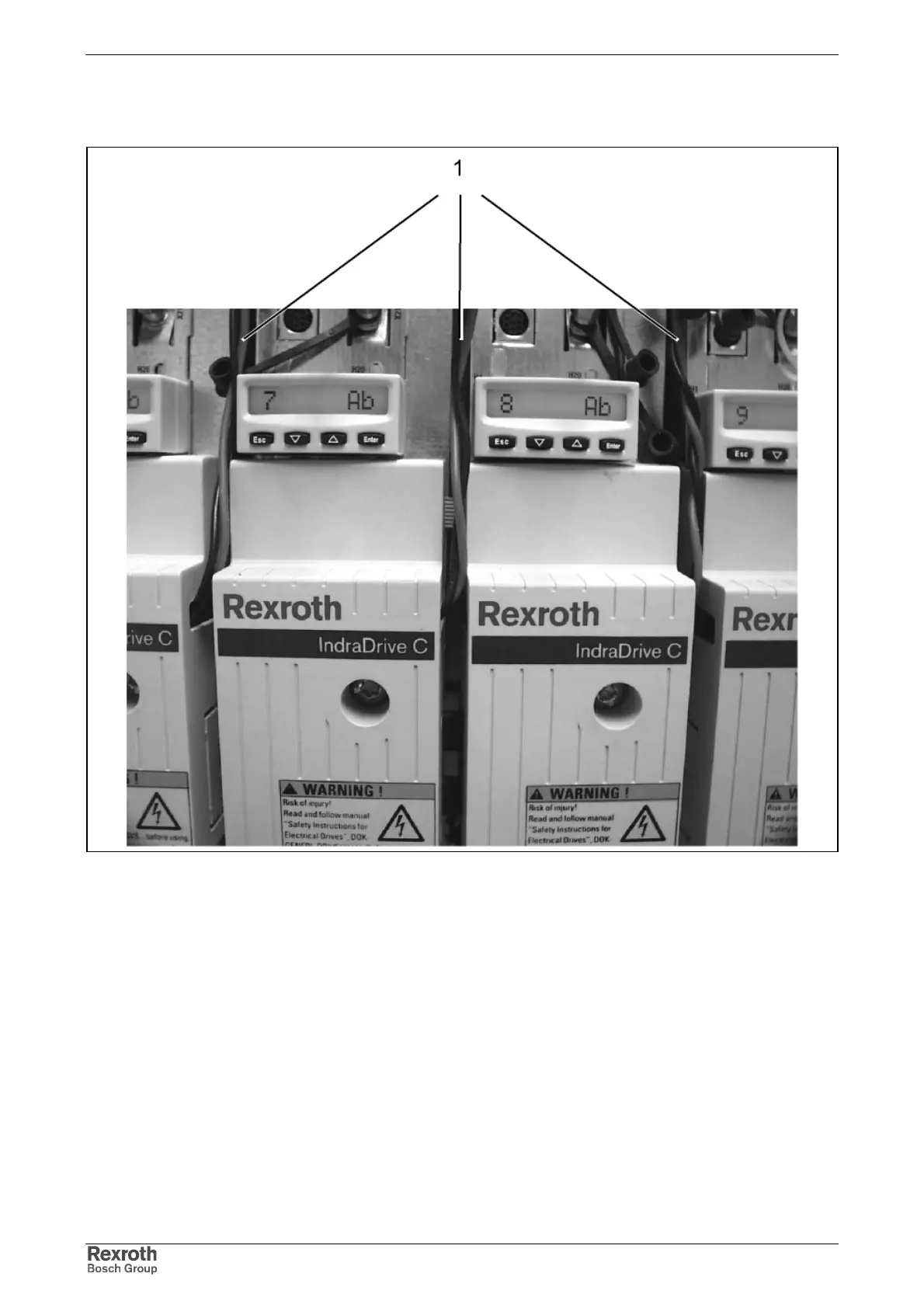

Fig. 6-51: Control voltage supply at X13
