2020 rf IDEAS Inc rfIDEAS Configuration Utility User Manual P a g e 12
The Plus menu lists the following options:
Open hwghwg file…: Opens either a hwg or a hwg file A hwg or hwg file
contains all the configuration settings for the reader
Save device data to hwg file: Saves the configuration settings of the reader
Install libusb for NTWCC reader: It will install the driver needed to operate a NTWCC type
reader
Save USB data to SDK file: Report configuration block trace for USB connection
25 Icon Toolbar

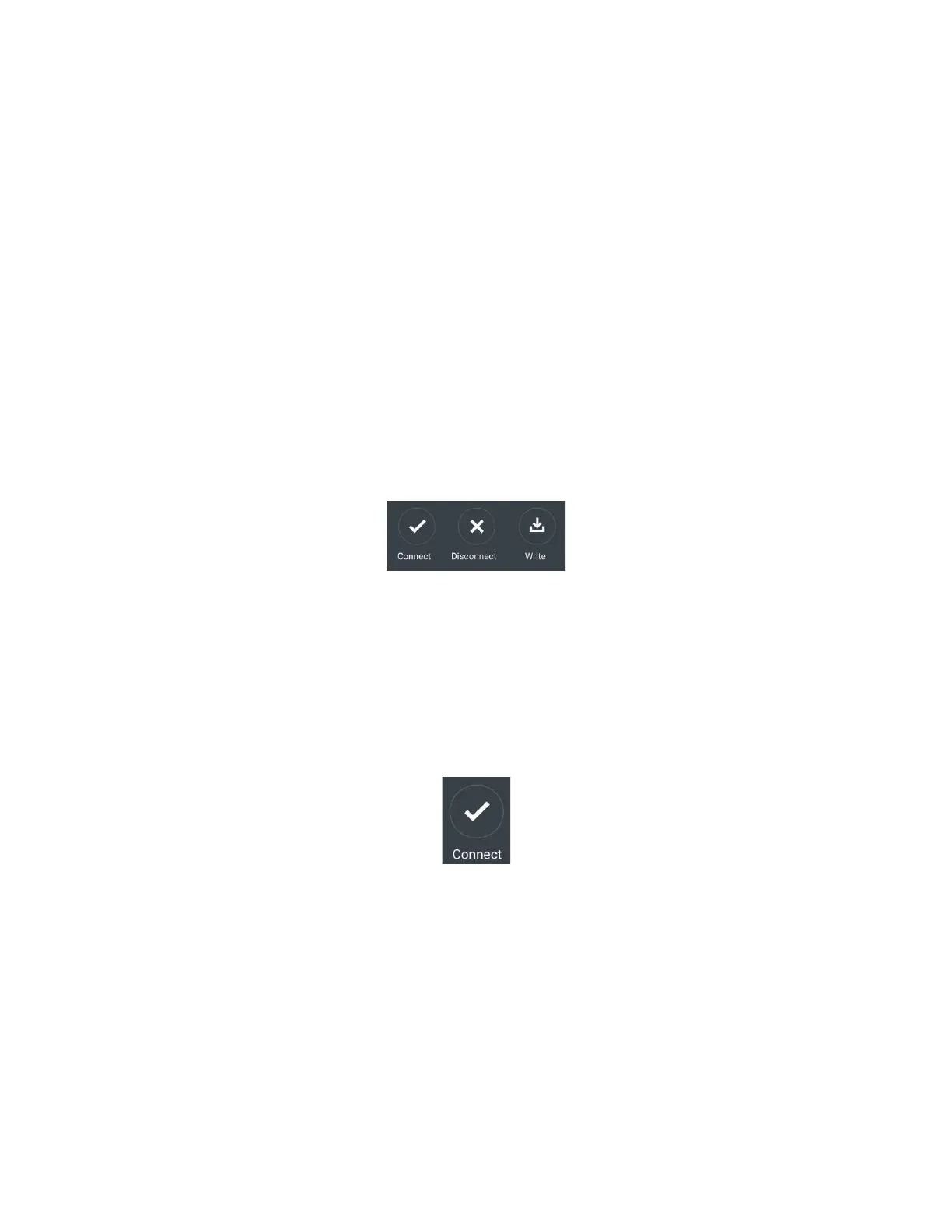

Image 9: Icon Toolbar
The Icon Tool Bar contains the three most general configuration controls for the utility
Connect
Image 10: Connect Button
Clicking the Connect icon button commands the utility to search for all the readers on the
selected ports
Once the utility detects a reader the Device List pulldown menu in the Standard
Configuration Area displays the interface connection firmware and LUID information for the
