VENUS X1PRO-E User Manual
50
800×600@60 | 1024×768@60 | 1024×768@75 | 1280×720@60 |
1280×720@50 | 1280×768@60 | 1280×800@60 | 1280×1024@60 |
1360×768@60 | 1366×768@60 | 1400×1050@60 | 1440×900@60
|1600×1200@60 | 1680×1050@60 | 1920×1080@60 | 1920×1200@60 |
2048×1152@60 | 2560×816@60
DVI BACKUP (Standard)
Number of Outputs
4
Connector
Standard DVI-I Socket
Signal Level
TMDS pw, 165MHz bandwidth
Supported Resolution
SMPTE：625/25/50 PAL, 525/29.97/59.94 NTSC,
1080P50/59.94/60 I 1080i50/59.94/60,
720p50/59.94/60
1280×720@23.98 | 1280×720@24 | 1280×720@25 | 1280×720@29.97
| 1280×720@30 | 1920×1080@23.98 | 1920×1080@24
|1920×1080@25 | 1920×1080@29.97 | 1920×1080@30
VESA:
800×600@60 | 1024×768@60 | 1024×768@75 | 1280×720@60 |
1280×720@50 | 1280×768@60 | 1280×800@60 | 1280×1024@60 |
1360×768@60 | 1366×768@60 | 1400×1050@60 | 1440×900@60
|1600×1200@60 | 1680×1050@60 | 1920×1080@60 | 1920×1080@50 |
1920×1200@60 | 2048×1152@60 | 2560×812@60 | 2560×816@60 |
1536×1536@60

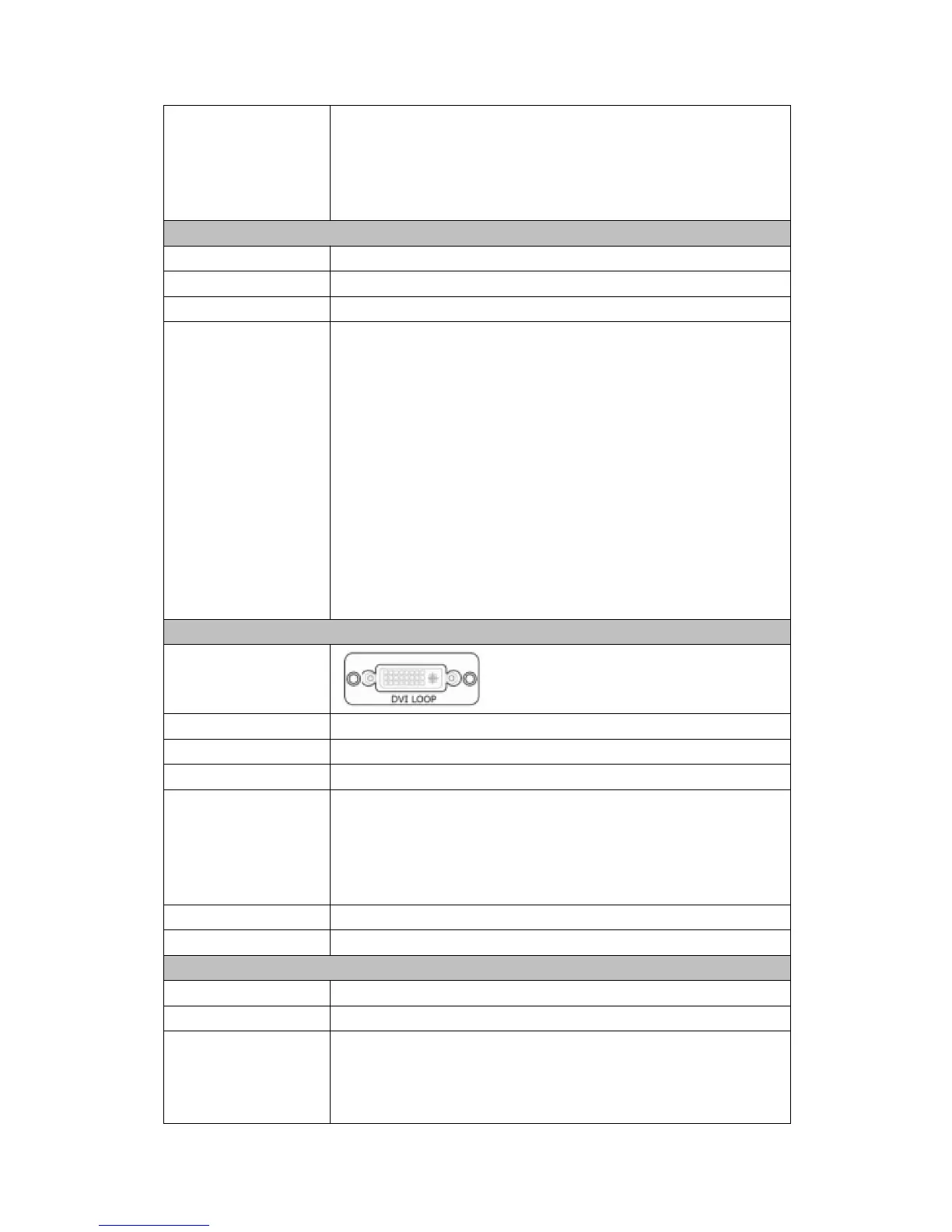

DVI LOOP (Standard)
Interface Appearance
Board Size
52 (L)×19.5(W)（mm）
Number of Loop Out
1
Connector
Standard DVI-I socket
Supported Resolution
SMPTE：625/25/50 PAL, 525/29.97/59.94 NTSC,
1080P50/59.94/60,1080i50/59.94/60,
720p50/59.94/60
VESA：800×600@60 | 1024×768@60 | 1280×768@60 |
1280×1024@60 | 1600×1200@60 | 1920×1080@60
Signal Level
TMDS pwl, single pixel input,165MHz bandwidth
Format Standard
HDMI 1.3
DP Loop (Standard)
Number of Loop Out
1
Connector
Standard
Supported Resolution
VESA: 3840×2160×24 | 3840×2160×25 | 3840×2160×30 |
4096×2160×24
SMPTE: 625/25/50 PAL, 525/29.97/59.94 NTSC,
1080P50/59.94/60 I 1080i50/59.94/60,
