720p50/59.94/60
Supported Bandwidth
21.6Gb/s
Format Standard
DP 1.2
3G-SDI Input (SDI optional module)

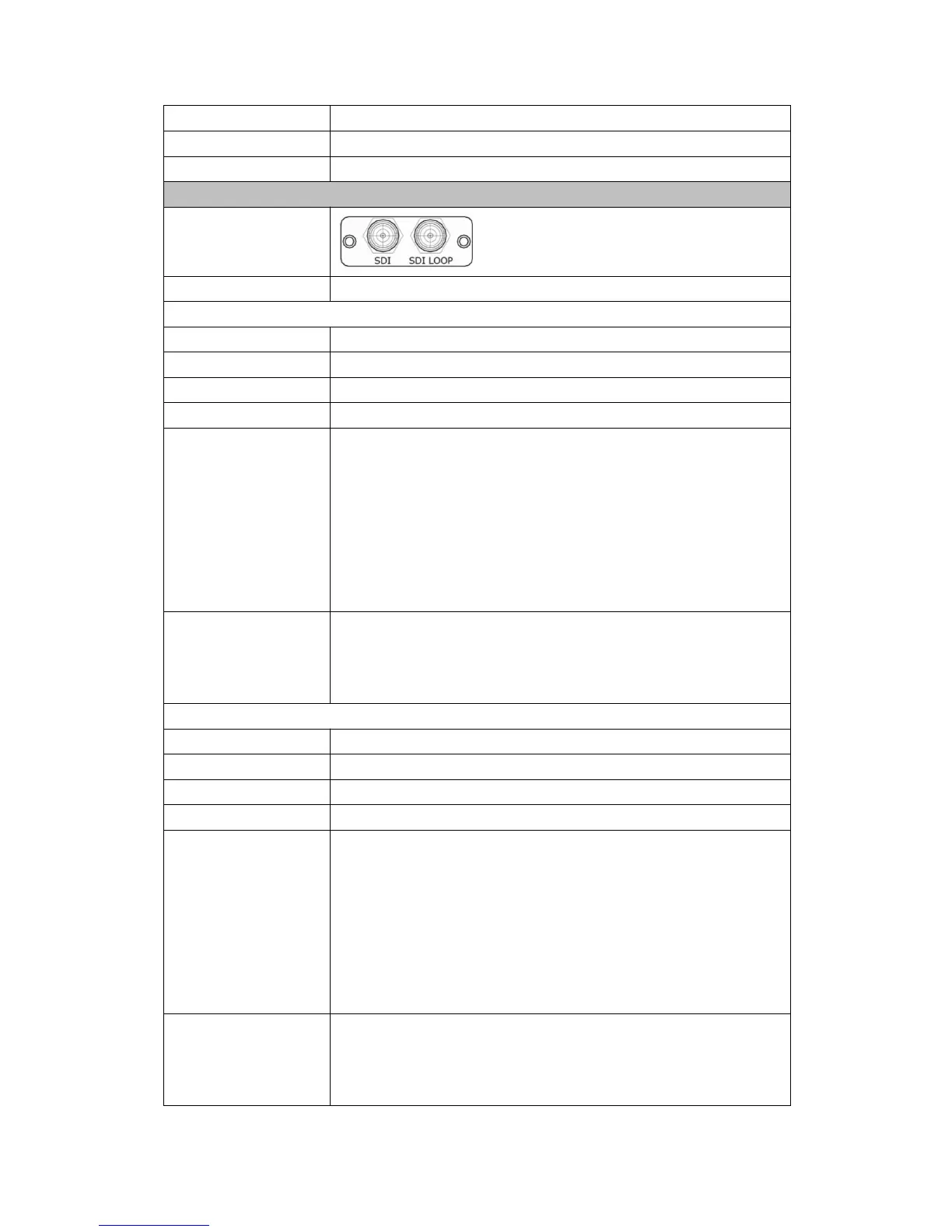

Interface Appearance
Board Size
52(L)×19.5(W)（mm）
3G-SDI Input
Number of Inputs
3
Connector
Standard BNC Socket
Data Rate
2.97Gb/s, 2.97/1.001Gb/s, 1.485Gb/s, 1.485/1.001Gb/s and 270Mb/s
Supported Standard
SMPTE 425M - 3G Level A and Level B Formats
Supported Resolution
SMPTE 425M (3G Level A) 4:2:2: 1920×1080/60 (1:1) I
1920×1080/50 (1:1).
SMPTE 425M (3G Level B DS1 and DS2) 4:2:2：1920×1080/60 (2:1) |
1920×1080/50 (2:1)
SMPTE 296M (HD): 1280×720/50 (1:1) I 1280×720/50 (1:1)
SMPTE 125M (SD): 1440×487/60 (2:1) I 525-line 487 generic
SMPTE ITU-R BT.656 (SD): 1440×576/50 (2:1),
625-line generic.
Balance
Belden 1694A cable:
150m at 2.97Gb/s
250m at 1.485Gb/s
480m at 270Mb/s
SDI Loop Out
Number of Loop Out
3
Connector
Standard BNC Socket
Data Rate
2.97Gb/s, 2.97/1.001Gb/s, 1.485Gb/s, 1.485/1.001Gb/s and 270Mb/s
Supported Standard
SMPTE 425M - 3G Level A and Level B Formats
Supported Resolution
SMPTE 425M (3G Level A) 4:2:2: 1920×1080/60 (1:1) |
1920×1080/50 (1:1).
SMPTE 425M (3G Level B DS1 and DS2) 4:2:2：1920×1080/60 (2:1) |
1920×1080/50 (2:1)
SMPTE 296M (HD): 1280×720/50 (1:1) I 1280×720/50 (1:1)
SMPTE 125M (SD): 1440×487/60 (2:1), 525-line 487 generic
SMPTE ITU-R BT.656 (SD): 1440×576/50 (2:1),
625-line generic.
Balance
Belden 1694A cable:
150m at 2.97Gb/s
250m at 1.485Gb/s
480m at 270Mb/s
