VENUS X1PRO-E User Manual
52

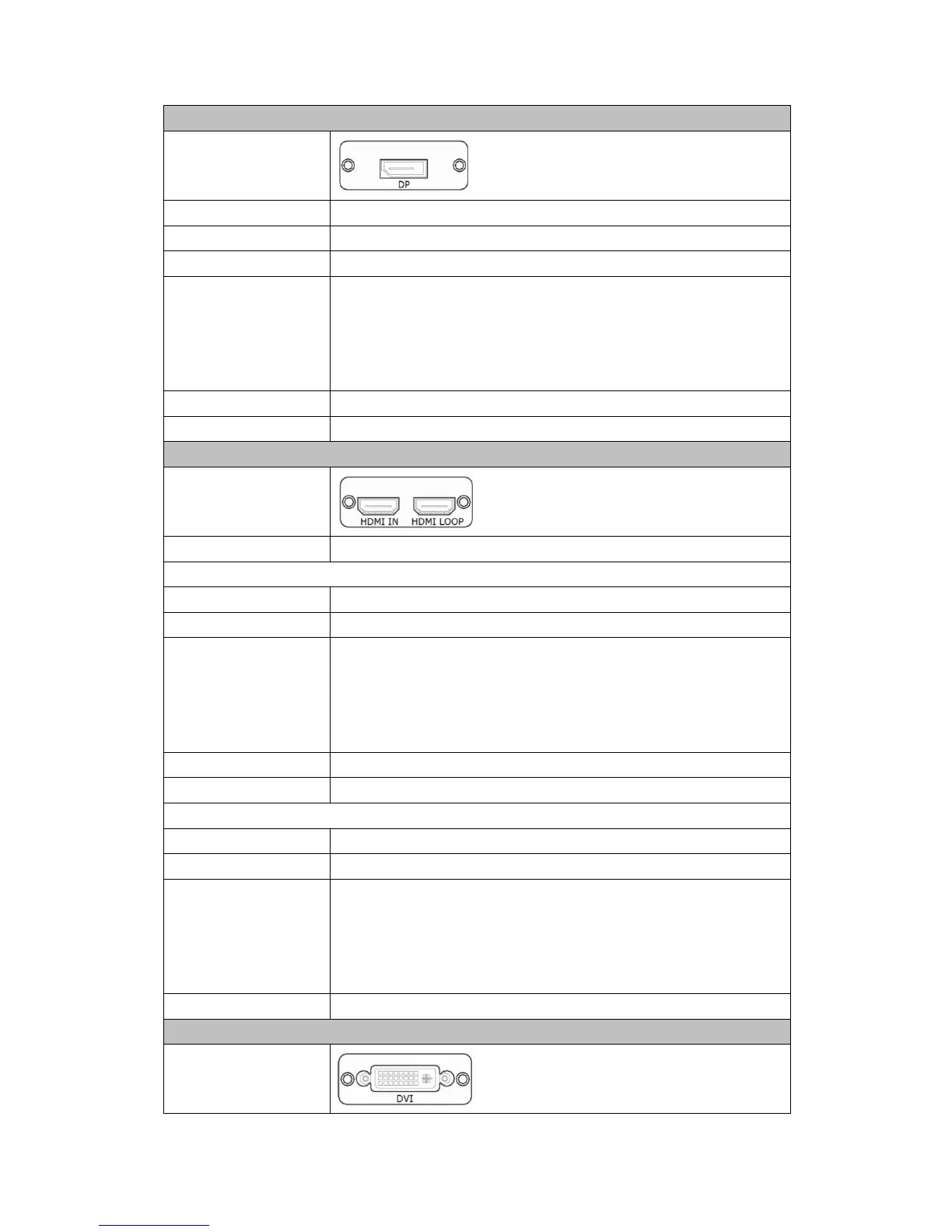

DP Input (DP optional module)
Interface Appearance
Board Size
52(L)×19.5(W)（mm）
Number of Inputs
1
Connector
Standard
Supported Resolution
VESA: 3840×2160×@24 | 3840×2160@25 | 3840×2160@30 |
4096×2160@24
SMPTE: 625/25/50 PAL, 525/29.97/59.94 NTSC,
1080P50/59.94/60 I 1080i50/59.94/60,
720p50/59.94/60
Supported Bandwidth
21.6Gb/s
Format Standard
DP1.2
HDMI IN+HDMI LOOP (HL optional module)
Interface Appearance
Board Size
52(L)×19.5(W)（mm）
HDMI Input
Number of Inputs
3
Connector
Standard HDMI-A socket
Supported Resolution
SMPTE: 625/25/50 PAL, 525/29.97/59.94 NTSC,
1080P50/59.94/60 | 1080i50/59.94/60,
720p50/59.94/60
VESA: 800×600@60 | 1024×768@60 I 1280×768@60 |
1280×1024@60 | 1600×1200@60 | 1920×1080@60
Signal Level
TMDS pwl, single pixel input,165MHz bandwidth
Format Standard
HDMI 1.3
HDMI Loop Out
Number of Loop Out
3
Connector
HDMI standard type A interface
Supported Resolution
SMPTE：625/25/50 PAL, 525/29.97/59.94 NTSC,
1080P50/59.94/60 I 1080i50/59.94/60,
720p50/59.94/60
VESA：800×600@60 | 1024×768@60 | 1280×768@60 |
1280×1024@60 | 1600×1200@60 | 1920×1080@60
Format Standard
HDMI 1.3
DVI Input (DVI optional module)
Interface Appearance
