Board Size
52(L)×19.5(W)（mm）
Number of Inputs
3
Connector
Standard DVI-I socket
Supported Resolution
SMPTE：625/25/50 PAL, 525/29.97/59.94 NTSC,
1080P50/59.94/60 I 1080i50/59.94/60,
720p50/59.94/60
VESA：800×600@60 | 1024×768@60 | 1280×768@60 |
1280×1024@60 | 1600×1200@60 | 1920×1080@60
Signal Level
TMDS pwl, single pixel input,165MHz bandwidth
Format Standard
HDMI 1.3

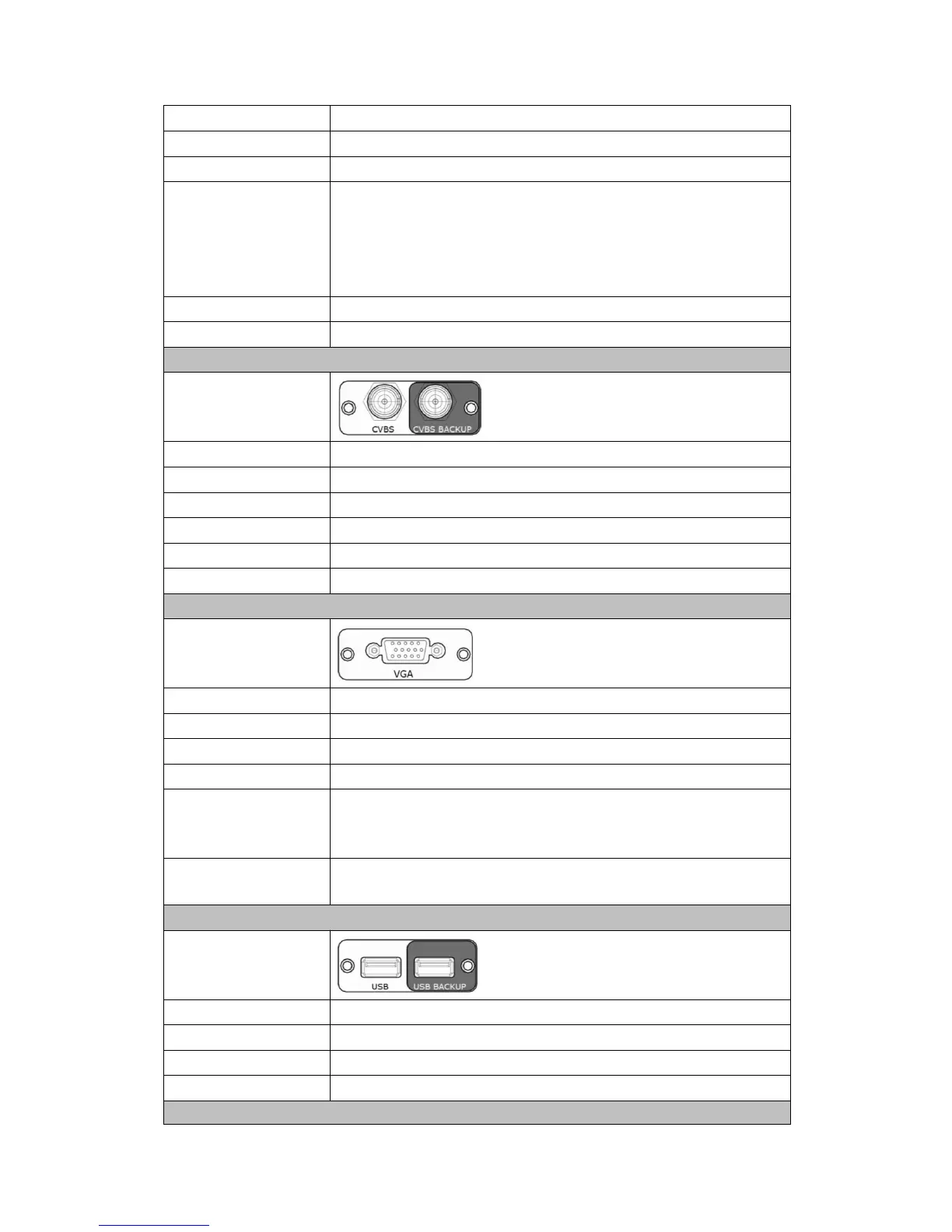

CVBS Input (CVBS optional module)
Interface Appearance
Board Size
52(L)×19.5(W)（mm）
Number of Inputs
3
Connector
Standard BNC Socket
Supported Standards
PAL/NTSC
Signal Level
1Vpp±3db (0.7V Video+0.3v Sync ) 75 ohm
Multiplex
480i,576i
VGA Input (VGA optional module)
Interface Appearance
Board Size
52(L)×19.5(W)（mm）
Number of Inputs
3
Connector
Standard DB15 Socket
Supported Standard
VGA-UXGA
Signal Level
R, G, B, Hsync, Vsync:0 to1Vpp±3dB (0.7V Video+0.3v Sync ) 75
ohm
black level: 300mV Sync-tip: 0V
Supported Resolution
VGA-UXGA (800×600@60 | 1024×768@60 | 1280×1024@60 |
1440×900@60 | 1600×1200@60)
USB Input (USB optional module)
Interface Appearance
Board Size
52(L)×19.5(W)（mm）
Number of Inputs
3
Connector
Standard USB port
Supported Standard
Support general Image and video formats
