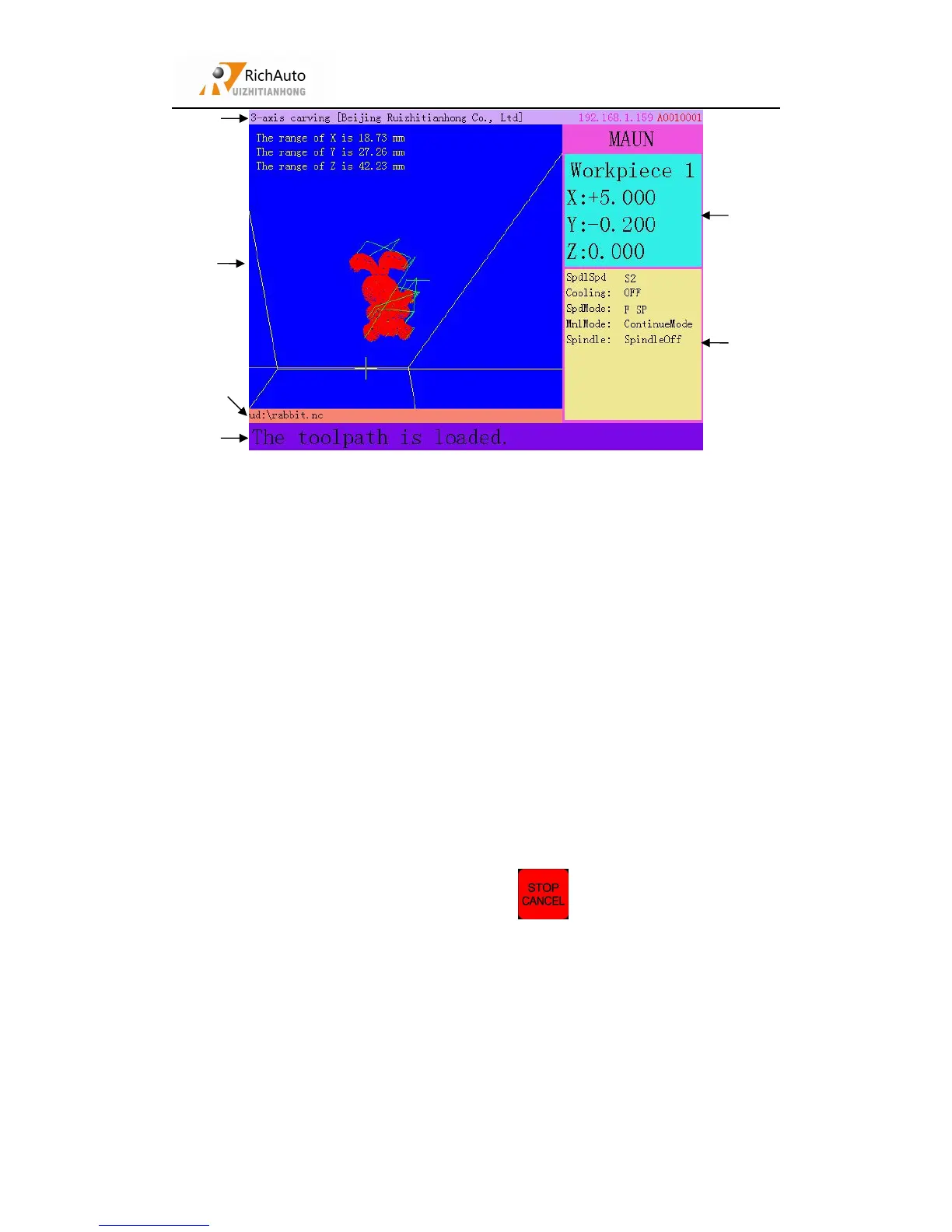

1. Title bar ： Display system software type （ 3-axis carving ） and company
2. Processing file simulation area ： Display processing file emulational
image、tool path、file size,etc.
3. File information area：Display filename（including filename extension）、
4. Message area：Display file loading process information.
5. Coordinate system area：Display the current coordinate system，including
machine coordinate system and work coordinate system ， there are eight
work coordinates system.
6. Machine status area：Display spindle state、speed mode、motion mode、
cooling unit state,etc.
Under the manual control interface，press“ ”, screen shows“The display
function list”，it is convenient for the customer different ways to view processing file
emulational image.Function list as shown below：
Processing file
simulation area
