Soft Version eg：A1.1936
Emergency Version eg：A1.1920
Soft type：4-axis carving
Hardware type：4-axis carving Support 3-inch screen Flash Disk Mode
4.3
Remote control user interface

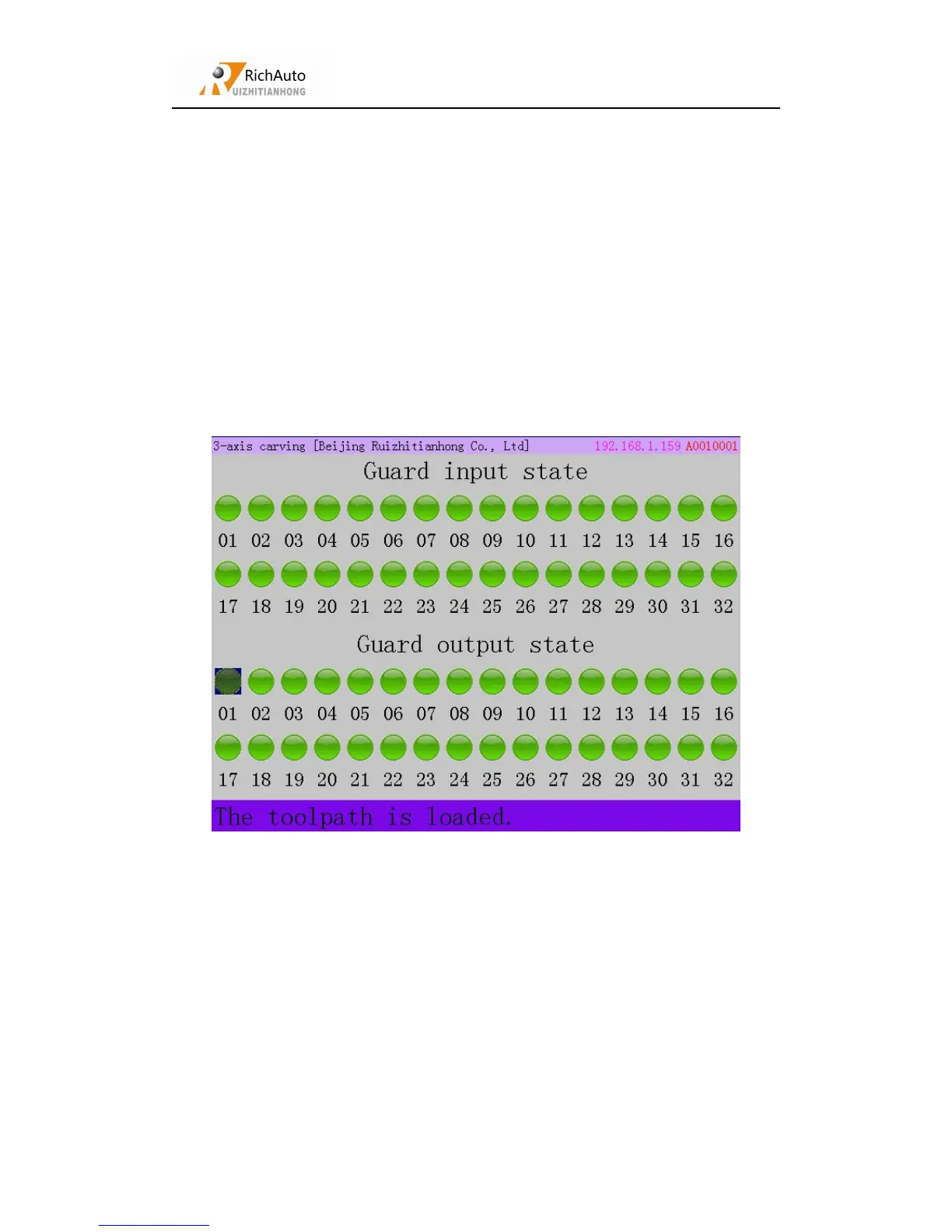

4.4 Input outputcontrol user interface
INPUT SIGNAL terminal has 01-32, total of 32 status indicator lamps, and the
interface board INPUT SIGNAL terminal X01 - X16 one-to-one correspond to the
indicator lamps.Indicator lamp01- INPUT SIGNAL X01(X back home signal),
indicator lamp02- INPUT SIGNAL X02(Y back home signal) ， indicator lamp03-
INPUT SIGNAL X03(Z back home signal) ， indicator lamp04- INPUT SIGNAL
X04(Toolset signal)，and other lamps correspond to other definable signal.
If indicator lamp is green（not light），it signifies that no signal triggers，if signal
