4. DETAILED DESCRIPTIONS
4.1 ORIGINAL PICK-UP MECHANISM

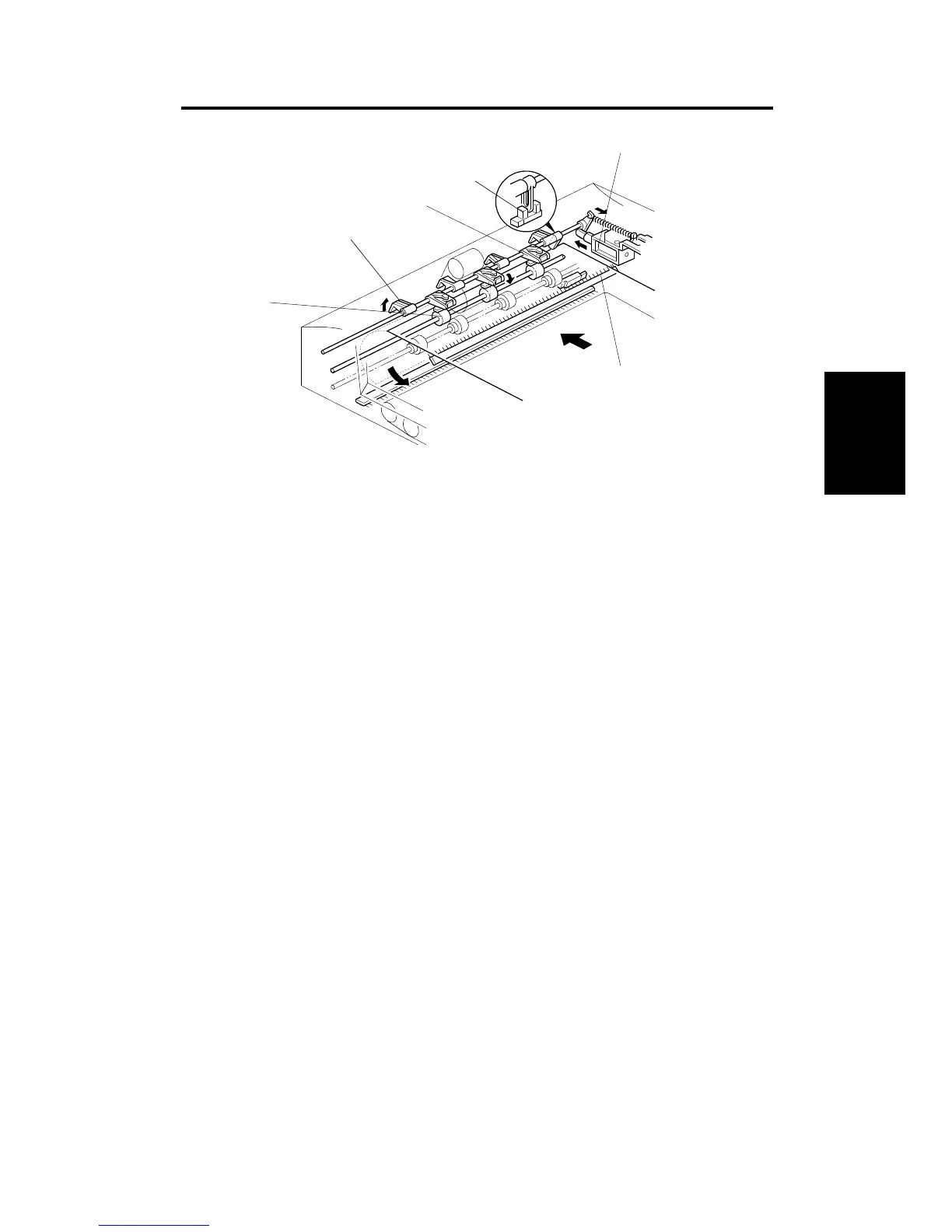

When an original is placed on the table, the leading edge is stopped by the
stopper [A], and the feeler activates the original set sensor [B]. The Insert
Original indicator light goes out and the DF informs the copier’s CPU that the
originals have been set.
When the Print key is pressed, the stopper solenoid [C] activates to raise the
stopper to allow the originals to be fed in, and to lower the press lever [D] to
press the originals against the pick-up rollers [E].
An anti-static brush [F] is installed to eliminate static electricity caused during
the original pick-up process.
[E]
[F]
[C]
[B]
[D]
[A]
AUTO REVERSE
DOCUMENT
FEEDER A548
STM 3-5 A156/A160/A162
